8162 Cable Description
8162 Cable features a durable PVC jacket, 100Ω impedance, and a built-in drain wire for secure grounding. It is designed for high-speed, long-distance data transmission in applications such as computer networking, digital audio, and telecommunications.
Our alternative cables offer a more cost-effective solution without sacrificing quality or functionality. For more information on other cable brands and alternatives, please consult our technicians.
8162 Cable Construction
| 8162 Multi-Conductor Low Capacitance Cable | 8162 LSF Alternative Cable | |
|---|---|---|
| Conductor | Class 2 stranded tinned copper | |
| Insulation | Datalene® FPE (Foam Polyethylene) | Gas Injection Foam PE (Polyethylene) |
| Screen | Beldfoil® (Aluminium foil polyester tape) | Al/PET (Aluminium Foil/Polyester tape) |
| Drain Wire | Tinned copper | |
| Braid | TCWB (Tinned Copper Wire Braid) | |
| Sheath | PVC (Polyvinyl Chloride) | PVC-LSF (Polyvinyl Chloride-Low Smoke Fume) |
8162 Cable Characteristics
| 8162 Multi-Conductor Low Capacitance Cable | 8162 LSF Alternative Cable | |
|---|---|---|
| Voltage Rating | 300V | |
| Temperature Rating | -40°C to +60°C | -20°C to +80°C |
| Minimum Bending Radius | 10 x overall diameter | |

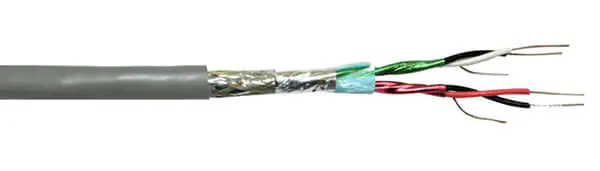

- 8162 Multi-Conductor Low Capacitance Cable

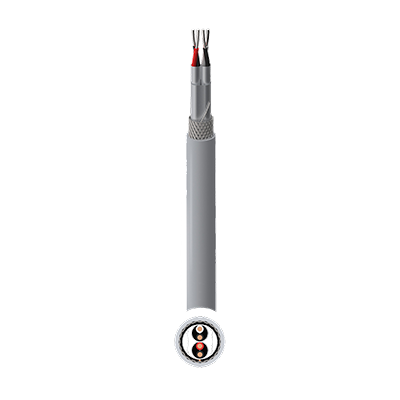

- 8162 LSF Alternative Cable
| NO. OF PAIRS | AWG (NO.OF STRANDS) | NOMINAL DIAMETER OF STRANDS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 2 | AWG24(7) | 0.032 | 0.34 | 53 |
| NO. OF PAIRS | AWG (NO.OF STRANDS) | NOMINAL DIAMETER OF STRANDS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 2 | AWG24(7) | 0.2 | 8.71 | 85 |
