8778 Multi-Pair Cable

8778 Multi-Pair Cable

8778 Multi-Pair Cable is a 6-pair, 22 AWG control and audio cable designed specifically for low-voltage analog signals, rated at 300V.

  • iso-certification
  • ce-certification
  • ccc-certification
  • ul-certification
  • abs-certification

8778 Cable Description

8778 cable features individually shielded wire pairs, a tinned copper drain wire, and a chrome-plated PVC outer jacket. Rated CM (Multipurpose Communications), this cable is suitable for low-voltage analog signals (e.g., 4-20mA, 0-10V), digital control (e.g., 24V), panel wiring, computer communications, and line-level audio.

Our alternative cables offer a more cost-effective solution without sacrificing quality or functionality. For more information on other cable brands and alternatives, please consult our technicians.

8778-multi-pair-cable

8778 Cable Construction

8778 Multi-Pair Cable8778 LSF Alternative Cable
ConductorClass 2 stranded tinned copper
InsulationPP (Polypropylene)
ScreenAluminium foil polyester tapeAluminium foil tape
Drain WireTinned copper
SheathPVC (Polyvinyl Chloride)PVC-LSF (Polyvinyl Chloride-Low Smoke Fume)

8778 Cable Characteristics

  • Voltage Rating
  • 300V
  • Temperature Rating
  • -20°C to +80°C
  • 8778 Multi-Pair Cable
  • 8778 LSF Alternative Cable
NO. OF PAIRSAWG
(NO. OF STRANDS)
NOMINAL DIAMETER OF STRANDS
mm
NOMINAL OVERALL DIAMETER
mm
NOMINAL WEIGHT
kg/km
in.mmin.mmin.mm
6AWG22(7)0.030.7620.3528.9470104
NO. OF PAIRSAWG
(NO. OF STRANDS)
NOMINAL DIAMETER OF STRANDS
mm
NOMINAL OVERALL DIAMETER
mm
NOMINAL WEIGHT
kg/km
6AWG22(7)0.258126

Why Huadong Cable

Our vision is to become an internationally renowned brand in the field of cables; customer satisfaction, employee promotion, and corporate development are our service tenets; high standards, globalization, and building an international brand are our business philosophy.

About HuaDong

Henan Huadong Cable Co., Ltd. was founded in 1999 which is a joint-stock national high-tech enterprise integrating scientific research, industry and trade. Huadong Cable is deeply integrated into the "Belt and Road" construction and exports to more than 130 countries around the world, including Europe, South America, North America, the Middle East, Africa, Asia, and Oceania.

HuaDong Technology

Huadong Cable focuses on technology research and development which has 60 professional personnel with senior professional titles, and has more than 100 invention and utility model patents. Huadong has a team of experienced technical engineers to ensure the quality of cables.

Main Products

Our main products : marine cables, power cables, overhead cables, fireproof cables, low-smoke halogen-free cables, rubber cables, high temperature resistant cables, instrument and control cables, solar cables and other products.

ISO, SGS, BV CERTIFICATION; TECHNICAL PATENTS AND PRODUCT CERTIFICATION

Certification-item-01 Certification-item-02 Certification-item-03 Certification-item-04 Certification-item-05 Certification-item-06 Certification-item-07 Certification-item-08

TECHNICAL AND CLIENTS

130+

Export Countries

100+

Technical Patents

3 billion+

Annual Productivity

400+

Employees

Clients-item-01 Clients-item-02 Clients-item-03 Clients-item-04 Clients-item-05 Clients-item-06 Clients-item-07 Clients-item-08

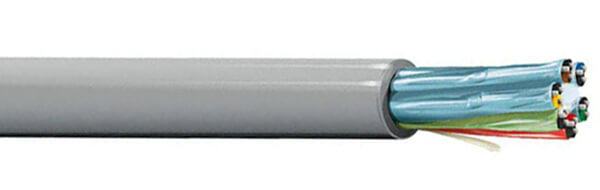

8778 Multi-Pair Cable

8778 Multi-Pair Cable

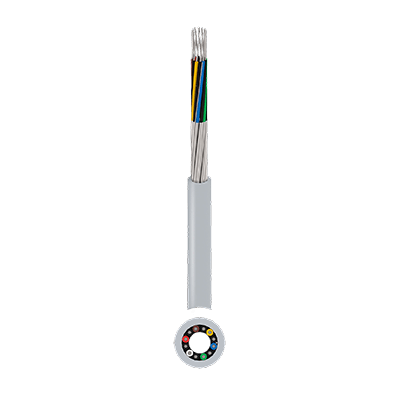

8778 LSF Alternative Cable
