KNX/EIB Cable Description
KNX EIB cables can be used to transmit data and connect building technology systems, enabling the operation and control of lighting and heating. Smart building control applications can save costs and improve the environment, leading to greener buildings.
These cables feature solid copper conductors, PE or PVC insulation, an aluminum foil shield with a drain wire for EMI protection, and a flame-retardant, low-smoke, zero-halogen (FRNC-LSZH) jacket. These cables are available with optional galvanized steel wire armor and a waterproof, tough, pipe-grade polyethylene (PE) outer jacket.

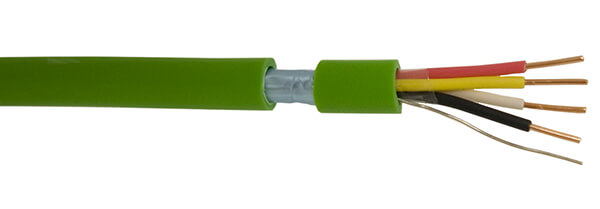

KNX/EIB Cable Construction
- Conductor
- Solid bare copper wire conductor
- Insulation
- LSZH (Low Smoke Zero Halogen)
- Tape
- Plastic foil
- Shield
- Al/PET (Aluminum/Polyester Tape)
- Drain Wire
- Tinned copper wire
- Sheath
- LSZH (Low Smoke Zero Halogen)
KNX/EIB Cable Characteristics
- Voltage Rating
- 125V
- Temperature Rating
- Fixed: -30°C to +70°C
- Minimum Bending Radius
- Fixed: 7.5 x overall diameter
KNX/EIB Cable Specifications
| NO. OF PAIRS | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 2 Pair (Quad) | 0.8 | 6.2 | 59 |
