Profinet Cable

Profinet Cable Description

Profinet cables are designed for reliable, real-time data communication in industrial automation. They offer excellent active and passive immunity to electrical interference and are widely used in drive technology, such as transportation and conveyor belts, as well as in machine tool manufacturing.

Profinet Type A cables are suitable for cabling industrial fieldbus systems using the globally accepted TCP/IP protocol. Profinet PUR cables are flexible fieldbus cables suitable for stationary or dynamic applications, particularly for Profinet Type B applications.

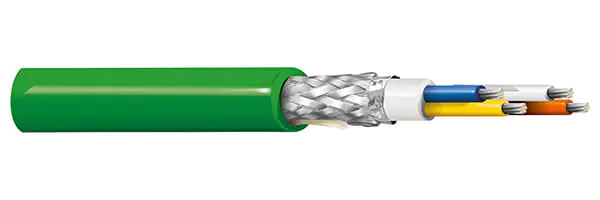

Profinet Cable Construction

	Veriflex Profinet Type A Cable	Profinet PUR Cable
Conductor	Class 1 Solid Copper	Class 2 Stranded Copper Conductor
Insulation	LSZH (Low Smoke Zero Halogen)	Solid PE (Polyethylene)
Bedding	LSZH (Low Smoke Zero Halogen)	PET (Polyester Tape)
Inner Sheath	Halogen Free Material
Screen	Al/PET (Aluminium/Polyester Tape)
Overall Shield	TCWB (Tinned Copper Wire Braid)
Outer Sheath	LSZH (Low Smoke Zero Halogen)	HFFR (Halogen Free Flame Retardant) PUR Compound

Profinet Cable Characteristics

	Veriflex Profinet Type A Cable	Profinet PUR Cable
Voltage Rating	300V
Temperature Rating	Fixed: -20°C to +70°C	Fixed: -40°C to +80°C Flexed: -20°C to +60°C
Minimum Bending Radius	Fixed: 7.5 x overall diameter Flexed: 15 x overall diameter	Fixed: 6 x overall diameter Flexed: 12 x overall diameter

Veriflex Profinet Type A Cable
Profinet PUR Cable

NO. OF PAIRS	NOMINAL CONDUCTOR DIAMETER mm2 (AWG/strands)	NOMINAL DIAMETER INSULATION mm	NOMINAL BEDDING DIAMETER mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	0.34 (22/1)	1.43	4.2	6.5	74

NO. OF CORES	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
4	6.6	70
