AS/NZS 5000.1 Standard Cable Description

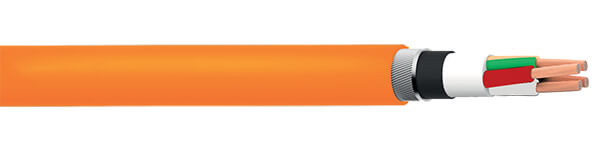

These 5000.1 standard cables feature cross-linked polyethylene (XLPE) insulation and a polyvinyl chloride (PVC) outer sheath, with a maximum operating temperature of 90 °C, making them suitable for direct burial or underground conduit installation. They are available with and without wire-armored (SWA) protection.
AS/NZS 5000.1 Standard Cable Construction
| Armoured AS/NZS 5000.1 XLPE PVC 1kV Cable | Unarmoured AS/NZS 5000.1 XLPE PVC 1kV Cable | |
|---|---|---|
| Conductor | Rigid stranded Copper | |
| Insulation | XLPE (Cross-linked Polyethylene) | |
| Armour | SWA (Steel Wire Armour) | - |
| Outer Sheath | PVC (Polyvinyl Chloride) | |
AS/NZS 5000.1 Standard Cable Characteristics
| Armoured AS/NZS 5000.1 XLPE PVC 1kV Cable | Unarmoured AS/NZS 5000.1 XLPE PVC 1kV Cable | |
|---|---|---|
| Rated Voltage Uo/U | 0.6/1kV | |
| Temperature Rating | Maximum operating temperature +90oC | |
| Minimum Bending Radius | 8x overall diameter | 5x overall diameter |
- Armoured AS/NZS 5000.1 XLPE PVC 1kV Cable
- Unarmoured AS/NZS 5000.1 XLPE PVC 1kV Cable
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA SIZE mm² | CONDUCTOR strands / OD mm | NOMINAL INSULATION THICKNESS mm | NOMINAL AREA SIZE EARTH mm² | NOMINAL EARTH CONDUCTOR INSULATION THICKNESS mm | NOMINAL ARMOUR DIAMETER mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 3+E | 16 | 7/1.70 | 0.7 | 6 | 0.7 | 1.25 | 22.8 | 1285 |
| 3+E | 25 | 7/2.14 | 0.9 | 6 | 0.7 | 1.6 | 26.7 | 1845 |
| 3+E | 35 | 7/2.65 | 0.9 | 10 | 0.7 | 1.6 | 28.7 | 2315 |
| 3+E | 50 | 19/1.89 | 1 | 16 | 0.7 | 1.6 | 32 | 2935 |
| 3+E | 70 | 19/2.24 | 1.1 | 25 | 0.9 | 2 | 38.3 | 3880 |
| 3+E | 95 | 19/2.65 | 1.1 | 25 | 0.9 | 2 | 43.1 | 5250 |
| 3+E | 120 | 19/2.94 | 1.2 | 35 | 0.9 | 2 | 45.4 | 5765 |
| 3+E | 150 | 19/3.28 | 1.4 | 50 | 1 | 2.5 | 51.4 | 7560 |
| 3+E | 185 | 37/2.65 | 1.6 | 70 | 1.1 | 2.5 | 56.6 | 9220 |
| 3+E | 240 | 37/2.94 | 1.7 | 95 | 1.1 | 2.5 | 63.3 | 11740 |
| 4+E | 16 | 7/1.70 | 0.7 | 6 | 0.7 | 1.25 | 26.3 | 1725 |
| 4+E | 25 | 7/2.14 | 0.9 | 6 | 0.7 | 1.6 | 29.6 | 2335 |
| 4+E | 35 | 7/2.65 | 0.9 | 10 | 0.7 | 1.6 | 31.5 | 2605 |
| 4+E | 50 | 19/1.89 | 1 | 16 | 0.7 | 1.6 | 36.5 | 3860 |
| 4+E | 70 | 19/2.24 | 1.1 | 25 | 0.9 | 2 | 41.8 | 5135 |
| 4+E | 95 | 19/2.65 | 1.1 | 25 | 0.9 | 2 | 45.8 | 5900 |
| 4+E | 120 | 19/2.94 | 1.2 | 35 | 0.9 | 2 | 51.7 | 9090 |
| 4+E | 150 | 19/3.28 | 1.4 | 50 | 1 | 2.5 | 56.9 | 10410 |
| 4+E | 185 | 37/2.65 | 1.6 | 70 | 1.1 | 2.5 | 63.1 | 11600 |
| 4+E | 240 | 37/2.94 | 1.7 | 95 | 1.1 | 2.5 | 70.1 | 14700 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA SIZE mm² | CONDUCTOR Stranding / OD mm | NOMINAL INSULATION THICKNESS mm | NOMINAL AREA SIZE EARTH CONDUCTOR mm² | NOMINAL EARTH CONDUCTOR INSULATION THICKNESS mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 3 | 10 | 7/1.35 | 0.7 | - | - | 1.4 | 15.3 | 435 |
| 3 | 16 | 7/1.70 | 0.7 | - | - | 1.4 | 17.6 | 625 |
| 3 | 25 | 7/2.14 | 0.9 | - | - | 1.4 | 21.5 | 950 |
| 3+1 | 10 | 7/1.35 | 0.7 | 4 | 0.7 | 1.4 | 16 | 475 |
| 3+1 | 16 | 7/1.70 | 0.7 | 6 | 0.7 | 1.4 | 18.3 | 690 |
| 3+1 | 25 | 7/2.14 | 0.9 | 6 | 0.7 | 1.4 | 21.8 | 1020 |
| 3+1 | 35 | 7/2.65 | 0.9 | 10 | 0.7 | 1.4 | 26.9 | 1400 |
| 3+1 | 50 | 19/1.89 | 1 | 16 | 0.7 | 1.4 | 30.7 | 1900 |
| 3+1 | 70 | 19/2.24 | 1.1 | 25 | 0.9 | 1.4 | 35.9 | 2600 |
| 3+1 | 95 | 19/2.65 | 1.1 | 25 | 0.9 | 1.5 | 38 | 3050 |
| 3+1 | 120 | 19/2.94 | 1.2 | 35 | 0.9 | 1.6 | 41.8 | 4200 |
| 3+1 | 150 | 19/3.28 | 1.4 | 50 | 1.0 | 1.7 | 43 | 5250 |
| 3+1 | 185 | 37/2.65 | 1.6 | 70 | 1.1 | 1.8 | 48.4 | 6620 |
| 3+1 | 240 | 37/2.94 | 1.7 | 95 | 1.1 | 2.0 | 54.5 | 8720 |
| 4 | 10 | 7/1.35 | 0.7 | - | - | 1.4 | 16.7 | 550 |
| 4 | 16 | 7/1.70 | 0.7 | - | - | 1.4 | 19.2 | 800 |
| 4 | 25 | 7/2.14 | 0.9 | - | - | 1.4 | 23.6 | 1250 |
| 4+1 | 10 | 7/1.35 | 0.7 | 4 | 0.7 | 1.4 | 16 | 475 |
| 4+1 | 16 | 7/1.70 | 0.7 | 6 | 0.7 | 1.4 | 18.3 | 690 |
| 4+1 | 25 | 7/2.14 | 0.9 | 6 | 0.7 | 1.4 | 21.8 | 1020 |
| 4+1 | 35 | 7/2.65 | 0.9 | 10 | 0.7 | 1.4 | 26.9 | 1400 |
| 4+1 | 50 | 19/1.89 | 1 | 16 | 0.7 | 1.4 | 30.7 | 1900 |
| 4+1 | 70 | 19/2.24 | 1.1 | 25 | 0.9 | 1.4 | 35.9 | 2600 |
| 4+1 | 95 | 19/2.65 | 1.1 | 25 | 0.9 | 1.5 | 38 | 3050 |
| 4+1 | 120 | 19/2.94 | 1.2 | 35 | 0.9 | 1.6 | 41.8 | 4200 |
| 4+1 | 150 | 19/3.28 | 1.4 | 50 | 1.0 | 1.7 | 43 | 5250 |
| 4+1 | 185 | 37/2.65 | 1.6 | 70 | 1.1 | 1.8 | 48.4 | 6620 |
| 4+1 | 240 | 37/2.94 | 1.7 | 95 | 1.1 | 2.0 | 54.5 | 8720 |
