BS6622 Cable Description
BS 6622 is a British Standard that specifies the requirements and test methods for armored cables with thermosetting insulation, primarily designed for medium voltage (MV) power applications. These cables are suitable for fixed installations, including networks and industrial facilities.
BS 6622 cables use armoring technology to provide mechanical protection. The insulation layer is usually XLPE (cross-linked polyethylene) or EPR (ethylene propylene rubber), which has good electrical and mechanical properties.

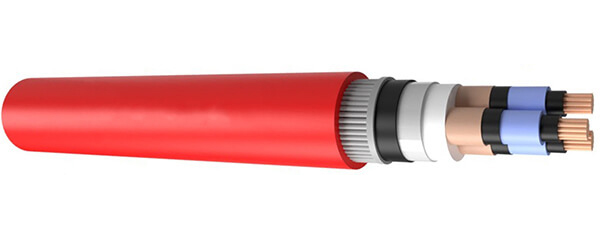

BS6622 Cable Construction
| BS 6622 XLPE PVC 3.8/6.6kV Cable | BS 6622 Aluminium XLPE PVC 3.8/6.6kV Cable | BS 6622 XLPE PVC 6.35/11 (12)kV Cable | BS 6622 XLPE MDPE 6.35/11 (12)kV Cable | BS 6622 XLPE PVC 8.7/15kV Cable | BS 6622 XLPE PVC 12.7/22kV Cable | BS 6622 XLPE / PVC Medium Voltage 19/33 (36)kV Cable | |
|---|---|---|---|---|---|---|---|
| Conductor | Class 2 Stranded Circular Compacted Copper | Class 2 compacted aluminium conductor | Class 2 Stranded Circular Compacted Copper | Class 2 stranded copper conductor | |||
| Conductor Screen | Extruded Inner Semi Conductor (Bonded Type) | Semi-conductive XLPE (Cross-Linked Polyethylene) | Extruded Inner Semi Conductor (Bonded Type) | Semi-conductive XLPE (Cross-Linked Polyethylene) | |||
| Insulation | XLPE (Cross-Linked Polyethylene) | ||||||
| Metallic Screen | Copper tape with 10% overlap | Concentric copper wires and copper tape | Copper tape with 10% overlap | Individual copper wire screen | Individual or collective overall copper tape screen | ||
| Armour | Single core: AWA (Aluminium Wire Armoured） Multi-core: SWA (Steel Wire Armoured) | Single core: AWA (Aluminium Wire Armoured) Multi core: SWA (Galvanised steel wire) | Single core: AWA (Aluminium Wire Armoured) Multi-core: SWA (Galvanised Steel Wire Armoured) | SWA (Steel Wire Armoured) | Single core: AWA (Aluminium Wire Armoured) Multi-core: SWA (Steel Wire Armoured) |
||
| Sheath | PVC (Polyvinyl Chloride) | MDPE (Medium Density Polyethylene) | PVC (Polyvinyl Chloride) | ||||
| Sheath Colour | Red, Black | Red | Red, Black | ||||
BS6622 Cable Characteristics
| BS 6622 XLPE PVC 3.8/6.6kV Cable | BS 6622 Aluminium XLPE PVC 3.8/6.6kV Cable | BS 6622 XLPE PVC 6.35/11 (12)kV Cable | BS 6622 XLPE MDPE 6.35/11 (12)kV Cable | BS 6622 XLPE PVC 8.7/15kV Cable | BS 6622 XLPE PVC 12.7/22kV Cable | BS 6622 XLPE / PVC Medium Voltage 19/33 (36)kV Cable | |
|---|---|---|---|---|---|---|---|
| Voltage Rating Uo/U (Um) | 3.8/6.6 (7.2) kV | 6.35/11 (12)kV | 8.7/15 (17.5) kV | 12.7/22 (24) kV | 19/33 (36)kV | ||
| Temperature Rating | Maximum conductor operating temperature: 90°C Initial temperature at S.C.C for metallic screen: 80°C Maximum conductor temperature during S.C: 250°C | Maximum operating temperature: 90°C Maximum short circuit temperature: 250°C | Maximum conductor operating temperature: 90°C Initial temperature at S.C.C for metallic screen: 80°C Maximum conductor temperature during S.C: 250°C | Fixed: 0°C to +90°C | Fixed: 0°C to +90°C Initial temperature at S.C.C for metallic screen: 80°C Maximum conductor temperature during S.C: 250°C |
||
| Minimum Bending Radius | Single core: 15 x overall diameter Multi core: 13 x overall diameter | Single core: 15x overall diameter Multi core: 12 x overall diameter | 12 x overall diameter | Single core - Fixed: 15 x overall diameter 3 core - Fixed: 12 x overall diameter | Fixed: 15 x overall diameter | ||

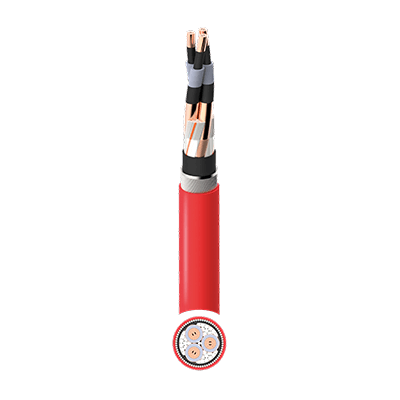

- BS 6622 XLPE PVC 3.8/6.6kV Cable

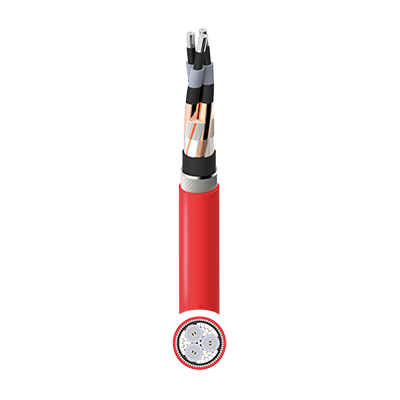

- BS 6622 Aluminium XLPE PVC 3.8/6.6kV Cable
- BS 6622 XLPE PVC 6.35/11 (12)kV Cable

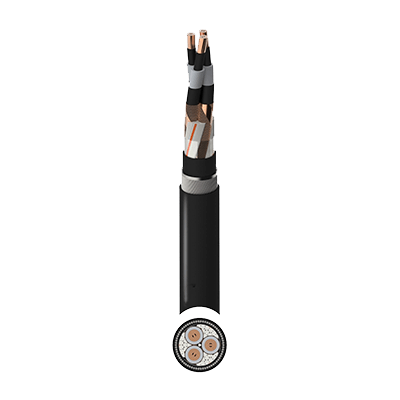

- BS 6622 XLPE MDPE 6.35/11 (12)kV Cable

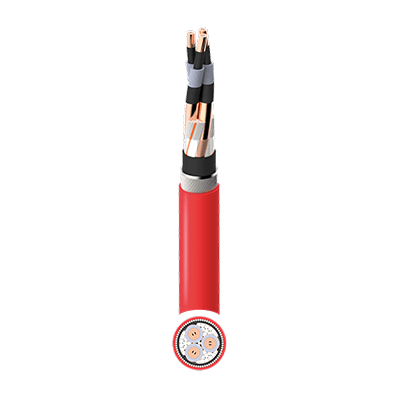

- BS 6622 XLPE PVC 8.7/15kV Cable
- BS 6622 XLPE PVC 12.7/22kV Cable

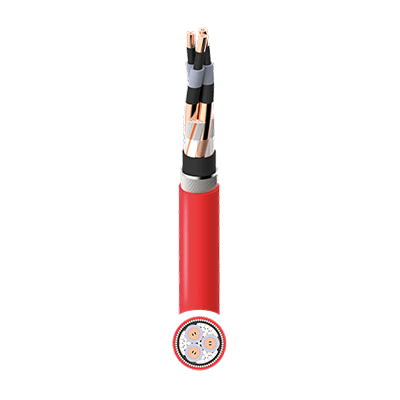

- BS 6622 XLPE / PVC Medium Voltage 19/33 (36)kV Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL OUTER SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 95 | 2.5 | 1.9 | 30.4 | 1721 |
| 1 | 120 | 2.5 | 1.9 | 31.8 | 1996 |
| 1 | 150 | 2.5 | 2 | 33.6 | 2333 |
| 1 | 185 | 2.5 | 2.1 | 35.6 | 2752 |
| 1 | 240 | 2.6 | 2.1 | 38.2 | 3388 |
| 1 | 300 | 2.8 | 2.2 | 41.2 | 4060 |
| 1 | 400 | 3 | 2.3 | 44.4 | 4989 |
| 1 | 500 | 3.2 | 2.5 | 49.4 | 6269 |
| 1 | 630 | 3.2 | 2.6 | 54.3 | 7822 |
| 1 | 800 | 3.2 | 2.7 | 58.6 | 9729 |
| 3 | 95 | 2.5 | 2.7 | 57.6 | 6765 |
| 3 | 120 | 2.5 | 2.9 | 61 | 7784 |
| 3 | 150 | 2.5 | 3 | 64.9 | 8989 |
| 3 | 185 | 2.5 | 3.1 | 68.3 | 10285 |
| 3 | 240 | 2.6 | 3.3 | 74.5 | 12617 |
| 3 | 300 | 2.8 | 3.5 | 82.8 | 15947 |
| 3 | 400 | 3 | 3.8 | 90.3 | 19403 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 1 | 35 | 24.4 | 823 |
| 1 | 50 | 25.6 | 894 |
| 1 | 70 | 27.7 | 1.034 |
| 1 | 95 | 29.6 | 1.179 |
| 1 | 120 | 30.8 | 1.285 |
| 1 | 150 | 32.5 | 1.508 |
| 1 | 185 | 35.2 | 1.773 |
| 1 | 240 | 37.9 | 2.038 |
| 1 | 300 | 40.8 | 2.357 |
| 1 | 400 | 45 | 2.893 |
| 1 | 500 | 49.8 | 3.553 |
| 1 | 630 | 56.2 | 4.164 |
| 3 | 50 | 49 | 3750 |
| 3 | 70 | 54 | 4500 |
| 3 | 95 | 57 | 5000 |
| 3 | 120 | 60 | 5500 |
| 3 | 150 | 64 | 6000 |
| 3 | 185 | 68 | 6750 |
| 3 | 240 | 76 | 8750 |
| 3 | 300 | 82 | 10000 |
| 3 | 400 | 90 | 12000 |
| 3 | 500 | 97 | 14000 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL OUTER SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 70 | 3.4 | 1.9 | 28.9 | 1424 |
| 1 | 95 | 3.4 | 1.9 | 30.2 | 1707 |
| 1 | 120 | 3.4 | 2 | 32.3 | 2046 |
| 1 | 150 | 3.4 | 2.1 | 33.9 | 2363 |
| 1 | 185 | 3.4 | 2.1 | 35.4 | 2735 |
| 1 | 240 | 3.4 | 2.2 | 38 | 3376 |
| 1 | 300 | 3.4 | 2.3 | 40.6 | 4012 |
| 1 | 400 | 3.4 | 2.4 | 44.6 | 5042 |
| 1 | 500 | 3.4 | 2.5 | 48.2 | 6154 |
| 1 | 630 | 3.4 | 2.6 | 53.3 | 7718 |
| 1 | 800 | 3.4 | 2.8 | 57.6 | 9616 |
| 3 | 70 | 3.4 | 2.7 | 54.6 | 5760 |
| 3 | 95 | 3.4 | 2.8 | 57.6 | 6732 |
| 3 | 120 | 3.4 | 3.0 | 61 | 7789 |
| 3 | 150 | 3.4 | 3.1 | 64.6 | 8916 |
| 3 | 185 | 3.4 | 3.2 | 68.3 | 10290 |
| 3 | 240 | 3.4 | 3.4 | 75.7 | 13367 |
| 3 | 300 | 3.4 | 3.4 | 81.5 | 15736 |
| 3 | 400 | 3.4 | 3.8 | 87.7 | 18907 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/km | ||
|---|---|---|---|---|---|
| Under Armour | Over Armour | Overall | |||
| 3 | 185 | 64.4 | 69.4 | 76 | 12600 |
| 3 | 185 | 64.4 | 69.4 | 76 | 12600 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | MINIMUM THICKNESS mm | NOMINAL THICKNESS OF SEMI CONDUCTIVE LAYER mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/km | |||
|---|---|---|---|---|---|---|---|---|
| Insulation | Outer sheath | Inner | Outer | Over insulation | Overall | |||
| 1 | 50 | 3.95 | 1.32 | 0.5 | 0.8 | 19.5 | 29 | 1400 |
| 1 | 70 | 3.95 | 1.4 | 0.5 | 0.8 | 21.1 | 31 | 1700 |
| 1 | 95 | 3.95 | 1.48 | 0.5 | 0.8 | 22.8 | 34 | 2100 |
| 1 | 120 | 3.95 | 1.48 | 0.5 | 0.8 | 24.1 | 35 | 2350 |
| 1 | 150 | 3.95 | 1.56 | 0.5 | 0.8 | 26 | 37 | 2700 |
| 1 | 185 | 3.95 | 1.56 | 0.5 | 0.8 | 27.3 | 39 | 3200 |
| 1 | 240 | 3.95 | 1.64 | 0.5 | 0.8 | 30 | 42 | 3750 |
| 1 | 300 | 3.95 | 1.72 | 0.5 | 0.8 | 32.1 | 45 | 4600 |
| 1 | 400 | 3.95 | 1.8 | 0.5 | 0.8 | 35 | 48 | 5500 |
| 1 | 500 | 3.95 | 1.88 | 0.5 | 0.8 | 38 | 51 | 6750 |
| 1 | 630 | 3.95 | 1.96 | 0.5 | 0.8 | 42.1 | 56 | 8200 |
| 3 | 50 | 3.95 | 2.12 | 0.5 | 0.8 | 19.5 | 57 | 5500 |
| 3 | 70 | 3.95 | 2.2 | 0.5 | 0.8 | 21.1 | 61 | 6500 |
| 3 | 95 | 3.95 | 2.28 | 0.5 | 0.8 | 22.8 | 65 | 7600 |
| 3 | 120 | 3.95 | 2.36 | 0.5 | 0.8 | 24.1 | 68 | 8600 |
| 3 | 150 | 3.95 | 2.52 | 0.5 | 0.8 | 26 | 74 | 10500 |
| 3 | 185 | 3.95 | 2.6 | 0.5 | 0.8 | 27.3 | 77 | 11900 |
| 3 | 240 | 3.95 | 2.76 | 0.5 | 0.8 | 30 | 83 | 14200 |
| 3 | 300 | 3.95 | 2.84 | 0.5 | 0.8 | 32.1 | 88 | 16600 |
| 3 | 400 | 3.95 | 3.08 | 0.5 | 0.8 | 35 | 95 | 19700 |
| 3 | 500 | 3.95 | 3.24 | 0.5 | 0.8 | 38 | 103 | 23600 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL OUTER SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 70 | 5.5 | 2.1 | 33.6 | 1717 |
| 1 | 95 | 5.5 | 2.1 | 34.9 | 2013 |
| 1 | 120 | 5.5 | 2.2 | 36.5 | 2318 |
| 1 | 150 | 5.5 | 2.2 | 38.1 | 2646 |
| 1 | 185 | 5.5 | 2.3 | 39.8 | 3048 |
| 1 | 240 | 5.5 | 2.3 | 42.2 | 3688 |
| 1 | 300 | 5.5 | 2.5 | 46.2 | 4515 |
| 1 | 400 | 5.5 | 2.6 | 49 | 5430 |
| 1 | 500 | 5.5 | 2.7 | 52.8 | 6593 |
| 1 | 630 | 5.5 | 2.8 | 57.7 | 8162 |
| 1 | 800 | 5.5 | 2.9 | 62 | 10092 |
| 3 | 70 | 5.5 | 3.1 | 64 | 6986 |
| 3 | 95 | 5.5 | 3.2 | 67.2 | 8072 |
| 3 | 120 | 5.5 | 3.4 | 72.4 | 10002 |
| 3 | 150 | 5.5 | 3.5 | 76.1 | 11266 |
| 3 | 185 | 5.5 | 3.6 | 79.7 | 12665 |
| 3 | 240 | 5.5 | 3.8 | 85.5 | 15126 |
| 3 | 300 | 5.5 | 3.9 | 90.9 | 17436 |
| 3 | 400 | 5.5 | 4.2 | 97.1 | 20706 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL OUTER SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 70 | 8 | 2.2 | 38.8 | 2077 |
| 1 | 95 | 8 | 2.3 | 40.3 | 2393 |
| 1 | 120 | 8 | 2.3 | 41.7 | 2692 |
| 1 | 150 | 8 | 2.4 | 44.7 | 3193 |
| 1 | 185 | 8 | 2.5 | 46.4 | 3623 |
| 1 | 240 | 8 | 2.6 | 49 | 4309 |
| 1 | 300 | 8 | 2.6 | 51.6 | 4999 |
| 1 | 400 | 8 | 2.7 | 54.4 | 5956 |
| 1 | 500 | 8 | 2.8 | 58 | 7107 |
| 1 | 630 | 8 | 3 | 63.3 | 8783 |
| 1 | 800 | 8 | 3.1 | 67.6 | 10766 |
| 3 | 70 | 8 | 3.5 | 77.6 | 9625 |
| 3 | 95 | 8 | 3.7 | 81 | 10827 |
| 3 | 120 | 8 | 3.8 | 84.4 | 12043 |
| 3 | 150 | 8 | 3.9 | 88.1 | 13379 |
| 3 | 185 | 8 | 4 | 91.5 | 14800 |
| 3 | 240 | 8 | 4.2 | 97.1 | 17324 |
| 3 | 300 | 8 | 4.3 | 102.7 | 19777 |
| 3 | 400 | 8 | 4.6 | 109.1 | 23228 |
