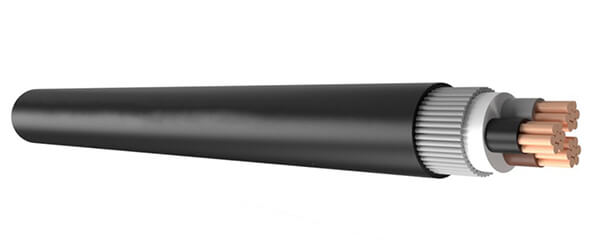

BS6724 Cable Description
BS 6724 often specifies the use of materials like Cross-Linked Polyethylene (XLPE), Ethylene Propylene Rubber (EPR), or thermosetting polyolefin insulation.
They are designed for use as LSZH armoured mains cables in public areas where there is a need to reduce the risk of harmful smoke and fumes when exposed to fire. Mainly used in low voltage power and control applications such as buildings, industrial environments and underground facilities
BS 6724 cables are typically armored, providing additional mechanical protection against damage in various environments. The robust construction, including the armor, makes BS 6724 cables suitable for direct burial in the ground.
The standard covers a range of core configurations, including single-core, two-core, three-core, four-core, and five-core cables.
BS6724 Cable Construction
| BS 6724 AWA LSZH BASEC Single Core 0.6/1kV Cable | BS 6724 SWA LSZH BASEC Multi Core 0.6/1kV Cable | BS 6724 Multicore Sectoral Shaped XLPE SWA LSZH 1.9/3.3kV Cable | BS 6724 Multicore XLPE SWA LSZH 1.9/3.3kV Cable | BS 6724 Single Core XLPE AWA LSZH 1.9/3.3kV Cable | |
|---|---|---|---|---|---|
| Conductor | Class 2 stranded copper | Class 2 sectoral shaped stranded copper | Class 2 stranded copper | ||
| Insulation | XLPE (Cross-Linked Polyethylene) | ||||
| Armour | AWA (Aluminium Wire Armour) | SWA (Steel Wire Armour) | SWA (Galvanised round steel wire armour) | SWA (Galvanised Steel Wire Armour) | AWA (Aluminium Wire Armour) |
| Sheath | LSZH (Low Smoke Zero Halogen) | HFFR (Halogen free flame retardant) | |||
BS6724 Cable Characteristics
| BS 6724 AWA LSZH BASEC Single Core 0.6/1kV Cable | BS 6724 SWA LSZH BASEC Multi Core 0.6/1kV Cable | BS 6724 Multicore Sectoral Shaped XLPE SWA LSZH 1.9/3.3kV Cable | BS 6724 Multicore XLPE SWA LSZH 1.9/3.3kV Cable | BS 6724 Single Core XLPE AWA LSZH 1.9/3.3kV Cable | |
|---|---|---|---|---|---|
| Voltage Rating Uo/U | 0.6/1kV | 1.9/3.3kV | |||
| Temperature Rating | Fixed: -20°C to +90°C | Maximum Operating: +90ºC Maximum Short-Circuit: +250°C |
|||
| Minimum Bending Radius | Fixed: 8 x overall diameter | 1.5mm² to 16mm² - Fixed: 6 x overall diameter 25mm² and above - Fixed: 8 x overall diameter | 8 x overall diameter | 12 x overall diameter | 15 x overall diameter |
BS6724 Cable Core Identification
- Single core: Brown or Blue
- Two-core: Brown and Blue
- Three-core: Brown, Black and Grey
- Four-core: Blue, Brown, Black and Grey
- Five-core: Green/Yellow, Blue, Brown, Black and Grey

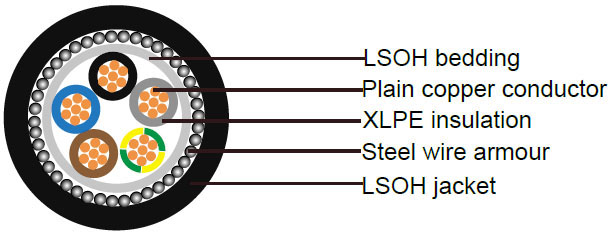

BS6724 Five-core 0.6/1kv Cable

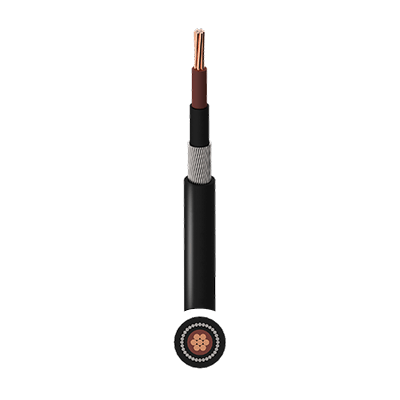

- BS 6724 AWA LSZH BASEC Single Core 0.6/1kV Cable

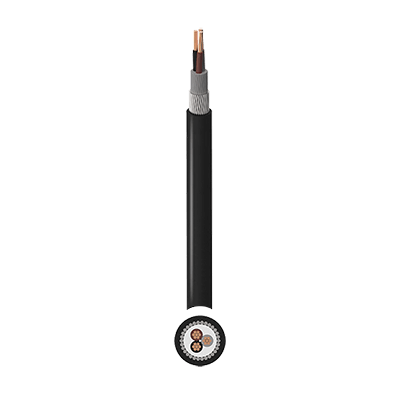

- BS 6724 SWA LSZH BASEC Multi Core 0.6/1kV Cable

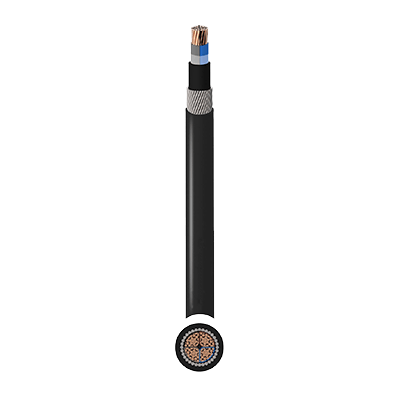

- BS 6724 Multicore Sectoral Shaped XLPE SWA LSZH 1.9/3.3kV Cable

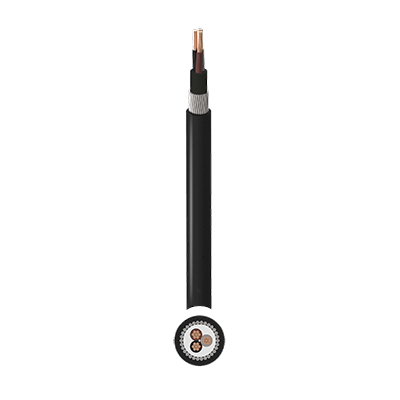

- BS 6724 Multicore XLPE SWA LSZH 1.9/3.3kV Cable
- BS 6724 Single Core XLPE AWA LSZH 1.9/3.3kV Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | CW GLAND | WRAPAROUND CLEATS | |
|---|---|---|---|---|---|---|---|
| Under Armour | Overall | ||||||
| 1 | 50 | 1 | 12.7 | 17.5 | 800 | 20 | CC7 |
| 1 | 70 | 1.1 | 14.7 | 20.2 | 960 | 25 | CC8 |
| 1 | 95 | 1.1 | 16.6 | 22.3 | 1240 | 25 | CC9 |
| 1 | 120 | 1.2 | 18.5 | 24.2 | 1510 | 25 | CC10 |
| 1 | 150 | 1.4 | 20.8 | 27.4 | 1900 | 32 | CC11 |
| 1 | 185 | 1.6 | 23.2 | 30 | 2320 | 32 | CC12 |
| 1 | 240 | 1.7 | 26 | 32.8 | 2930 | 32 | CC14 |
| 1 | 300 | 1.8 | 28.6 | 35.6 | 3580 | 40 | CC16 |
| 1 | 400 | 2 | 32.4 | 40.5 | 4600 | 40 | CC16 |
| 1 | 500 | 2.2 | 36 | 44.2 | 5770 | 50S | CC18 |
| 1 | 630 | 2.4 | 40 | 48.8 | 7250 | 50 | CC20 |
| 1 | 800 | 2.6 | 45.6 | 55.4 | 9381 | 63S | - |
| 1 | 1000 | 2.8 | 50.6 | 60.6 | 11540 | 63S | - |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/km | BW / CW GLAND | WRAPAROUND CLEATS | |
|---|---|---|---|---|---|---|---|
| Under Armour | Overall | ||||||
| 2 | 1.5 | 0.6 | 7.3 | 12.1 | 302 | 20S | CC5 |
| 2 | 2.5 | 0.7 | 8.5 | 13.6 | 346 | 20S | CC6 |
| 2 | 4 | 0.7 | 9.4 | 14.7 | 410 | 20S | CC6 |
| 2 | 6 | 0.7 | 10.5 | 15.9 | 499 | 20 | CC7 |
| 2 | 10 | 0.7 | 12.3 | 18 | 648 | 20 | CC8 |
| 2 | 16 | 0.7 | 14.3 | 20.4 | 978 | 20 | CC9 |
| 2 | 25 | 0.9 | 14.7 | 20.4 | 1290 | 25 | CC9 |
| 2 | 35 | 0.9 | 16.8 | 23.3 | 1500 | 32 | CC10 |
| 2 | 50 | 1 | 19 | 25.8 | 1890 | 32 | CC12 |
| 2 | 70 | 1.1 | 22 | 29 | 2450 | 32 | CC12 |
| 2 | 95 | 1.1 | 25.1 | 33.1 | 3300 | 32 | CC14 |
| 2 | 120 | 1.2 | 31.1 | 39.3 | 4020 | 40 | CC16 |
| 2 | 150 | 1.4 | 30.9 | 39.3 | 4750 | 40 | CC18 |
| 3 | 1.5 | 0.6 | 7.8 | 12.6 | 330 | 20S | CC5 |
| 3 | 2.5 | 0.7 | 9.2 | 14.1 | 390 | 20S | CC6 |
| 3 | 4 | 0.7 | 10 | 15.3 | 464 | 20S | CC7 |
| 3 | 6 | 0.7 | 11.2 | 16.6 | 568 | 20 | CC7 |
| 3 | 10 | 0.7 | 13.1 | 19.5 | 866 | 20 | CC8 |
| 3 | 16 | 0.7 | 15.3 | 21.6 | 1152 | 25 | CC9 |
| 3 | 25 | 0.9 | 18.9 | 23.6 | 1800 | 25 | CC11 |
| 3 | 35 | 0.9 | 21.3 | 25.7 | 2230 | 32 | CC12 |
| 3 | 50 | 1 | 21.7 | 28.5 | 2490 | 32 | CC12 |
| 3 | 70 | 1.1 | 25.2 | 32.2 | 3290 | 32 | CC14 |
| 3 | 95 | 1.1 | 28.8 | 37 | 4440 | 40 | CC16 |
| 3 | 120 | 1.2 | 32 | 40.4 | 5470 | 40 | CC16 |
| 3 | 150 | 1.4 | 35.9 | 45.5 | 6930 | 50S | CC18 |
| 4 | 1.5 | 0.6 | 8.5 | 13.5 | 365 | 20S | CC6 |
| 4 | 2.5 | 0.7 | 9.9 | 15 | 438 | 20S | CC6 |
| 4 | 4 | 0.7 | 11 | 16.4 | 532 | 20 | CC7 |
| 4 | 6 | 0.7 | 12.3 | 18.7 | 764 | 20 | CC8 |
| 4 | 10 | 0.7 | 14.5 | 21.1 | 1013 | 25 | CC9 |
| 4 | 16 | 0.7 | 17 | 23.4 | 1360 | 25 | CC10 |
| 4 | 25 | 0.9 | 21 | 26.1 | 2160 | 32 | CC11 |
| 4 | 35 | 0.9 | 23.6 | 28.6 | 2690 | 32 | CC12 |
| 4 | 50 | 1 | 25 | 32 | 3130 | 32 | CC14 |
| 4 | 70 | 1.1 | 29.5 | 37.7 | 4500 | 40 | CC16 |
| 4 | 95 | 1.1 | 33.3 | 41.7 | 5600 | 50S | CC18 |
| 4 | 120 | 1.2 | 37.5 | 47.1 | 7400 | 50 | CC20 |
| 4 | 150 | 1.4 | 41.6 | 51.4 | 8780 | 50 | - |
| 4 | 185 | 1.6 | 46.4 | 56.6 | 10630 | 63S | - |
| 4 | 240 | 1.7 | 52.6 | 63 | 13390 | 63 | - |
| 4 | 300 | 1.8 | 56.3 | 63.6 | 14998 | 75S | - |
| 5 | 1.5 | 0.6 | 9.7 | 14.3 | 410 | 20S | CC6 |
| 5 | 2.5 | 0.7 | 11.7 | 16.3 | 470 | 20S | CC7 |
| 5 | 4 | 0.7 | 13 | 17.8 | 710 | 20 | CC7 |
| 5 | 6 | 0.7 | 14.5 | 20 | 876 | 25 | CC8 |
| 5 | 10 | 0.7 | 17.2 | 22.9 | 1165 | 25 | CC10 |
| 5 | 16 | 0.7 | 20 | 26.6 | 1742 | 32 | CC11 |
| 5 | 25 | 0.9 | 24.7 | 31.5 | 2323 | 32 | CC14 |
| 5 | 35 | 0.9 | 27.8 | 34.8 | 2932 | 40 | CC14 |
| 5 | 50 | 1 | 32.4 | 40.4 | 4192 | 50S | CC16 |
| 5 | 70 | 1.1 | 35.8 | 43 | 5500 | 50S | CC18 |
| 5 | 95 | 1.1 | 42.1 | 49 | 7145 | 50S | CC20 |
| 7 | 1.5 | 0.6 | 10.2 | 15.2 | 470 | 20S | CC6 |
| 7 | 2.5 | 0.7 | 12.3 | 17.1 | 600 | 20 | CC7 |
| 12 | 1.5 | 0.6 | 13.7 | 19.4 | 780 | 20 | CC8 |
| 12 | 2.5 | 0.7 | 16.3 | 22.4 | 1000 | 25 | CC9 |
| 19 | 1.5 | 0.6 | 16.2 | 22.2 | 1000 | 25 | CC9 |
| 19 | 2.5 | 0.7 | 19.9 | 26.6 | 1540 | 25 | CC11 |
| 27 | 1.5 | 0.6 | 20 | 26.7 | 1500 | 32 | CC11 |
| 27 | 2.5 | 0.7 | 24 | 30.7 | 1950 | 32 | CC14 |
| 37 | 1.5 | 0.6 | 22.3 | 29 | 1800 | 32 | CC12 |
| 37 | 2.5 | 0.7 | 26.9 | 33.8 | 2350 | 40 | CC14 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | MINMUM THICKNESS OF OUTER SHEATH mm | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 3 | 35 | 2 | 1.32 | 28 | 2124 |
| 3 | 50 | 2 | 1.4 | 33 | 2930 |
| 3 | 70 | 2 | 1.48 | 36 | 3739 |
| 3 | 95 | 2 | 1.56 | 40 | 4734 |
| 3 | 120 | 2 | 1.64 | 44 | 6047 |
| 3 | 150 | 2 | 1.72 | 48 | 7196 |
| 3 | 185 | 2 | 1.8 | 51 | 8565 |
| 3 | 240 | 2 | 1.88 | 57 | 10645 |
| 3 | 300 | 2 | 1.96 | 62 | 12709 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | MINMUM THICKNESS OF OUTER SHEATH mm | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 3 | 10 | 3.85 | 2 | 1.24 | 23 | 1545 |
| 3 | 16 | 4.7 | 2 | 1.24 | 27 | 1680 |
| 3 | 25 | 5.85 | 2 | 1.24 | 30 | 2100 |
| 3 | 35 | 6.9 | 2 | 1.32 | 32 | 2530 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | MINMUM THICKNESS OF OUTER SHEATH mm | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 50 | 8.1 | 2 | 1.08 | 19 | 956 |
| 1 | 70 | 9.7 | 2 | 1.08 | 20 | 1201 |
| 1 | 95 | 11.4 | 2 | 1.08 | 22 | 1499 |
| 1 | 120 | 12.65 | 2 | 1.16 | 25 | 1936 |
| 1 | 150 | 14.15 | 2 | 1.16 | 26 | 2254 |
| 1 | 185 | 15.75 | 2 | 1.24 | 28 | 2650 |
| 1 | 240 | 18.2 | 2 | 1.24 | 30 | 3280 |
| 1 | 300 | 20.5 | 2 | 1.32 | 33 | 3938 |
| 1 | 400 | 23 | 2 | 1.4 | 37 | 5090 |
| 1 | 500 | 26 | 2.2 | 1.48 | 40 | 6255 |
| 1 | 630 | 29.7 | 2.4 | 1.56 | 45 | 7809 |
