BS7835 Standard Cable

BS7835 Cable Description

BS 7835 is a British Standard that specifies requirements and test methods for thermoset insulated armoured cables, particularly for medium voltage applications

BS 7835 single core cables typically use aluminium wire armour (AWA) and multi core cables use steel wire armour (SWA)

BS 7835 cables are typically used in public buildings, industrial facilities and power networks

BS7835 Cable Construction

	BS7835 XLPE LSZH 3.8/6.6kV Cable	BS7835 Aluminium XLPE LSZH 3.8/6.6kV Cable	BS7835 XLPE LSZH 6.35/11 (12)kV Cable	BS7835 XLPE LSZH 8.7/15kV Cable	BS7835 XLPE LSZH 12.7/22kV Cable	BS7835 XLPE LSZH 19/33 (36)kV Cable
Conductor	Class 2 stranded compacted copper conductor	Class 2 compacted aluminium conductor	Class 2 stranded copper conductor
Conductor Screen	Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation	XLPE (Cross-Linked Polyethylene)
Metallic Screen	Concentric copper wires and copper tape		Individual or collective overall copper tape screen
Armour	Single core: AWA (Aluminium Wire) Multi core: SWA (Galvanised steel wire)	Single core: AWA (Aluminium Wire Armoured) Multi core: SWA (Galvanised steel wire)	Single core: AWA (Aluminium Wire Armoured) Multi-core: SWA (Steel Wire Armoured)
Sheath	LSZH (Low Smoke Zero Halogen)
Sheath Colour	Red		Red, Black

BS7835 Cable Characteristics

	BS7835 XLPE LSZH 3.8/6.6kV Cable	BS7835 Aluminium XLPE LSZH 3.8/6.6kV Cable	BS7835 XLPE LSZH 6.35/11 (12)kV Cable	BS7835 XLPE LSZH 8.7/15kV Cable	BS7835 XLPE LSZH 12.7/22kV Cable	BS7835 XLPE LSZH 19/33 (36)kV Cable
Voltage Rating Uo/U (Um)	3.8/6.6 (7.2) kV		6.35/11 (12)kV	8.7/15 (17.5) kV	12.7/22 (24) kV	19/33 (36)kV
Temperature Rating	Maximum operating temperature: 90°C Maximum short circuit temperature: 250°C		Fixed: 0°C to +90°C
Minimum Bending Radius	Single core: 15x overall diameter Multi core: 12 x overall diameter		Single core - Fixed: 15 x overall diameter 3 core - Fixed: 12 x overall diameter

BS7835 XLPE LSZH 3.8/6.6kV Cable

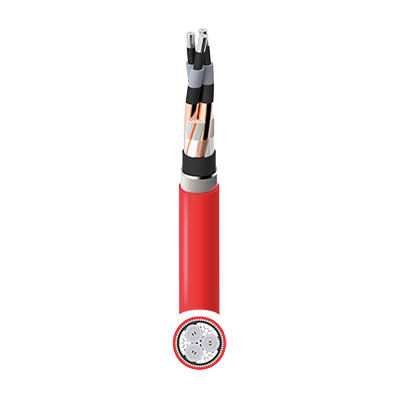

BS7835 Aluminium XLPE LSZH 3.8/6.6kV Cable
BS7835 XLPE LSZH 6.35/11 (12)kV Cable

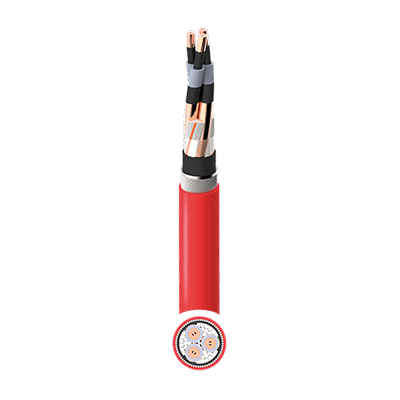

BS7835 XLPE LSZH 8.7/15kV Cable
BS7835 XLPE LSZH 12.7/22kV Cable
BS7835 XLPE LSZH 19/33 (36)kV Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/ km
1	35	24.3	1.023
1	50	25.5	1.171
1	70	27.3	1.418
1	95	29.2	1.719
1	120	31.1	2.013
1	150	32.3	2.386
1	185	35	2.866
1	240	37.7	3.486
1	300	41.7	4.256
1	400	47.1	5.406
1	500	51.9	6.693
1	630	55.8	8.212
3	50	48	4500
3	70	52	5500
3	95	56	6500
3	120	60	7500
3	150	63	8500
3	185	67	10000
3	240	74	13000
3	300	80	15500
3	400	89	19000

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	35	24.4	823
1	50	25.6	894
1	70	27.7	1.034
1	95	29.6	1.179
1	120	30.8	1.285
1	150	32.5	1.508
1	185	35.2	1.773
1	240	37.9	2.038
1	300	40.8	2.357
1	400	45	2.893
1	500	49.8	3.553
1	630	56.2	4.164
3	50	49	3750
3	70	54	4500
3	95	57	5000
3	120	60	5500
3	150	64	6000
3	185	68	6750
3	240	76	8750
3	300	82	10000
3	400	90	12000
3	500	97	14000

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER mm			NOMINAL WEIGHT kg/km
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	Under Armour	Over Armour	Overall	NOMINAL WEIGHT kg/km
1	50	21.7	24.9	28.5	1200
1	70	23	26.2	30	1500
1	95	24.7	27.9	31.7	1600
1	120	26.7	29.9	33.9	2100
1	150	27.5	31.5	35.7	2500
1	185	29.3	33.3	37.5	2900
1	240	31.6	35.6	40	3600
1	300	34.6	38.6	43	4300
1	400	37	41	45.8	5200
1	500	40.5	45.5	50.5	6500
1	630	44.6	49.6	54.8	8000
1	800	48.8	53.8	59.2	9850
1	1000	53.5	58.5	64.3	12100
3	35	41.6	46.6	51.6	4700
3	50	44.4	49.4	54.6	5300
3	70	48.1	53.1	58.5	6300
3	95	52	57	62.6	7300
3	120	55.6	60.6	66.6	8400
3	150	58.6	63.6	69.8	9600
3	185	62.7	67.7	74.1	11000
3	240	68.1	74.4	81.2	14000
3	300	73.5	79.8	87	16600
3	400	78.3	84.6	92.2	20000

NUMBER OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	MINIMUM THICKNESS mm		NOMINAL THICKNESS OF SEMI CONDUCTIVE LAYER mm		NOMINAL DIAMETER mm		NOMINAL WEIGHT kg/km
NUMBER OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	Insulation	Outer sheath	Inner	Outer	Over insulation	Overall	NOMINAL WEIGHT kg/km
1	50	3.95	1.32	0.5	0.8	19.5	29	1300
1	70	3.95	1.4	0.5	0.8	21.1	31	1600
1	95	3.95	1.48	0.5	0.8	22.8	34	2000
1	120	3.95	1.48	0.5	0.8	24.1	35	2250
1	150	3.95	1.56	0.5	0.8	26	37	2600
1	185	3.95	1.56	0.5	0.8	27.3	39	3000
1	240	3.95	1.64	0.5	0.8	30	42	3600
1	300	3.95	1.72	0.5	0.8	32.1	45	4500
1	400	3.95	1.8	0.5	0.8	35	48	5400
1	500	3.95	1.88	0.5	0.8	38	51	6500
1	630	3.95	1.96	0.5	0.8	42.1	56	8000
3	50	3.95	2.12	0.5	0.8	19.5	57	5250
3	70	3.95	2.2	0.5	0.8	21.1	61	6250
3	95	3.95	2.28	0.5	0.8	22.8	65	7300
3	120	3.95	2.36	0.5	0.8	24.1	68	8300
3	150	3.95	2.52	0.5	0.8	26	74	10250
3	185	3.95	2.6	0.5	0.8	27.3	77	11500
3	240	3.95	2.76	0.5	0.8	30	83	13800
3	300	3.95	2.84	0.5	0.8	32.1	88	16200
3	400	3.95	3.08	0.5	0.8	35	95	19300
3	500	3.95	3.24	0.5	0.8	38	103	23100

NUMBER OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	MINIMUM THICKNESS mm		NOMINAL THICKNESS OF SEMI CONDUCTIVE LAYER mm		NOMINAL DIAMETER mm		NOMINAL WEIGHT kg/km
NUMBER OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	Insulation	Outer sheath	Inner	Outer	Over Insulation	Overall	NOMINAL WEIGHT kg/km
1	50	4.85	1.4	0.5	0.8	21.3	32	1500
1	70	4.85	1.48	0.5	0.8	23	34	1800
1	95	4.85	1.48	0.5	0.8	24.6	36	2100
1	120	4.85	1.56	0.5	0.8	26	37	2500
1	150	4.85	1.56	0.5	0.8	27.7	40	2750
1	185	4.85	1.64	0.5	0.8	29.3	41	3100
1	240	4.85	1.72	0.5	0.8	31.8	45	4000
1	300	4.85	1.8	0.5	0.8	34	47	4600
1	400	4.85	1.88	0.5	0.8	36.7	50	5600
1	500	4.85	1.96	0.5	0.8	39.7	53	6750
1	630	4.85	2.04	0.5	0.8	44	58	8200
3	50	4.85	2.2	0.5	0.8	21.3	61	5800
3	70	4.85	2.28	0.5	0.8	23	65	6800
3	95	4.85	2.44	0.5	0.8	24.6	69	8000
3	120	4.85	2.52	0.5	0.8	26	74	9700
3	150	4.85	2.68	0.5	0.8	27.7	78	10900
3	185	4.85	2.76	0.5	0.8	29.1	81	12250
3	240	4.85	2.84	0.5	0.8	31.8	87	14500
3	300	4.85	3	0.5	0.8	34	93	16900
3	400	4.85	3.24	0.5	0.8	36.7	100	20200
3	500	4.85	3.4	0.5	0.8	39.7	107	24000

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER mm			NOMINAL WEIGHT kg/km
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	Under Armour	Over Armour	Overall	NOMINAL WEIGHT kg/km
1	70	32.6	36.6	41	2300
1	95	34.3	38.3	42.9	2650
1	120	35.9	39.9	44.5	3000
1	150	37.5	42.5	47.3	3500
1	185	39.3	44.3	49.3	4000
1	240	41.7	46.7	51.7	4650
1	300	44.2	49.2	54.4	5450
1	400	47.3	52.3	57.7	6350
1	500	50.5	55.5	61.1	7600
1	630	54.2	59.2	65	9150
1	800	60.5	65.5	71.6	11100
1	1000	65	70	76.5	13400
3	50	65.1	71.4	78.2	9150
3	70	68.8	75.1	82.1	10300
3	95	72.6	78.9	86.1	11600
3	120	76.3	82.6	90	12800
3	150	79.3	85.6	93.2	14050
3	185	83.4	89.7	97.5	15650
3	240	88.8	95.1	103.3	18200
3	300	93.9	100.2	108.8	21100
3	400	100.8	107.1	116.1	24200
