EXAVB Cable

EXAVB Cable Description

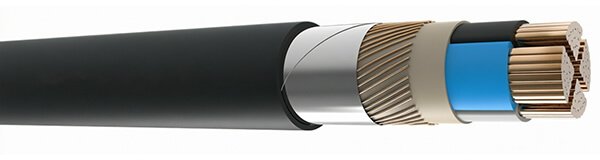

EXAVB cables feature copper conductors, cross-linked polyethylene (XLPE) insulation, a galvanized steel wire/tape armor layer, and a flame-retardant polyvinyl chloride (PVC) sheath. They are suitable for ambient temperatures ranging from -20°C to +60°C. The outer sheath provides UV and chemical protection. They can be directly buried underground or fixed in the open air, cable trays, conduits, or pipelines.

EXAVB Cable Construction

Conductor
Cu, class 1 or 2
Insulation
XLPE compound
Bedding
Safety circuit with copper wires
Concentric conductor
Galvanized steel tapes or steel wires
Sheath
PVC compound, UV resistant

EXAVB Cable Characteristics

Rated voltage
0,6/1 kV
Max. conductor temperature
90°C
Max. short-circuit temperature
250°C
Operating temperature
-20°C to 60°C

EXAVB Cable Specifications

NOMINAL CROSS-SECTION (mm²)	CONDUCTOR CONSTRUCTION	MAX. RESISTANCE AT 20°C (Ω/km)	CURRENT CAPACITY IN AIR (A)	CURRENT CAPACITY IN EARTH (A)	OUTER DIAM. (APPROX.) (mm)	METAL WEIGHT (kg/km)	CABLE WEIGHT (APPROX.) (kg/km)
1x10	RE/RM	1,83	-	-	12,9	96	409
1x16	RE/RM	1,15	-	-	13,9	153,6	502
1x25	RM	0,727	121	167	15,5	240	646
1x35	RM	0,524	157	186	16,5	336	763
1x50	RM	0,387	192	216	17,9	480	932
1x70	RM	0,268	252	261	20,1	672	1203
1x95	RM	0,193	318	321	23,8	912	1618
1x120	RM	0,153	371	361	25,5	1152	1906
1x150	RM	0,124	437	412	27,3	1440	2215
1x185	RM	0,0991	500	473	29,1	1776	2695
1x240	RM	0,0754	600	543	32,1	2304	3280
1x300	RM	0,0601	701	625	34,4	2880	3961
1x400	RM	0,0470	802	701	38,1	3840	4867
1x500	RM	0,0366	931	779	43,6	4800	6104
1x630	RM	0,0283	1090	873	49,6	6048	8165
1x800	RM	0,0221	1237	973	54,9	7680	10214
3x16	RE/RM	1150	100	120	23,0	422	1240
3x25	RM	0,727	127	150	26,4	641	1583
3x35	RM	0,524	157	175	29,0	891	2072
3x50	RM	0,387	192	205	32,0	1214	2531
3x25+16	RM/RM	0,727/1,150	127	150	28,9	776	2087
3x35+16	RM/RM	0,524/1,150	157	175	31,4	1025	2524
3x50+25	RM/RM	0,387/0,727	192	205	35,0	1429	3225
3x50+35	RM/RM	0,387/0,524	192	205	35,0	1513	3264
4x16	RE/RM	1150	100	120	24,6	563	1417
4x25	RM	0,727	127	150	28,8	855	1993
4x35	RM	0,524	157	175	31,7	1189	2456
4x50	RM	0,387	192	205	35,7	1621	3212
4x70	RM	0,268	146	265	39,8	2347	4134
4x95	RM	0,193	299	315	44,3	3197	5344
4x120	RM	0.153	346	360	48.8	4044	6708
4x150	RM	0.124	399	405	46	5080	8137
4x185	RM	0.0991	456	460	51.2	6310	9965
4x240	RM	0.0754	538	530	58.2	8266	12706
5x16	RE/RM	1.15	100	120	26.3	654	1551
5x25	RM	0.727	127	150	31	1070	2271
5x35	RM	0.524	157	175	34.3	1488	2889
5x50	RM	0.387	192	205	38.7	2028	3719
5x70	RM	0.268	146	265	43.2	2936	4851
5x95	RM	0.193	299	315	48.2	4001	6304
5x120	RM	0.153	346	360	53.1	5060	7911
5x150	RM	0.124	399	405	50.9	6357	9651
5x185	RM	0.0991	456	460	56.7	7895	11850
5x240	RM	0.0754	538	530	64.4	10342	15161
3x70	SM	0,268	246	265	33,1	1751	2963
3x95	SM	0,193	299	315	35,9	2386	3792
3x120	SM	0,153	346	360	38,9	3018	4525
3x150	SM	0,124	399	405	43,8	3791	5824
3x185	SM	0,0991	456	460	47,9	4709	7065
3x240	SM	0,0754	538	530	52,8	6168	8947
3x300	SM	0,0601	620	590	57,5	7787	10816
4x70	SM	0,268	246	265	37,4	2335	3787
4x95	SM	0,193	299	315	41,3	3182	4786
4x120	SM	0,153	346	360	45,7	4024	6146
4x150	SM	0,124	399	405	50,1	5055	7519
4x185	SM	0,0991	456	460	54,6	6279	9134
4x240	SM	0,0754	538	530	60,2	8225	11331
4x300	SM	0,0601	620	590	65,5	10383	14063
3x70+35	SM/SM	0,268/0,524	246	265	36,2	2037	3465
3x95+50	SM/SM	0,268/0,387	299	315	39,7	2789	4314
3x120+70	SM/SM	0,153/0,268	346	360	43,8	3602	5624
3x150+70	SM/SM	0,124/0,268	399	405	48,4	4375	6725
3x185+95	SM/SM	0,0991/0,268	456	460	52,7	5503	8077
3x240+120	SM/SM	0,0754/0,153	538	530	58,2	7174	10208
3x300+150	SM/SM	0,0601/0,124	620	590	63,7	9021	12423
