Hydrocarbon-resistant cable Description
These cables feature a polyamide intermediate sheath and a special compound PVC outer sheath, effectively blocking moisture and resisting corrosion from hydrocarbons and many other chemicals.
Hydrocarbon-resistant armored cables are available in single-core and multi-core versions. Single-core cables use aluminum wire armor (AWA), while multi-core cables use steel wire armor (SWA), providing robust mechanical protection.

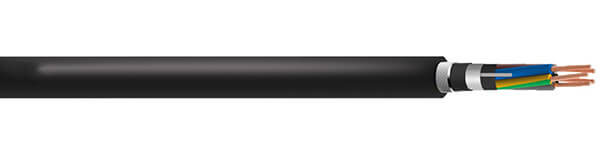

Hydrocarbon-resistant cable Construction
- Conductor
- Class 1 Solid (RE) or Class 2 Stranded (RM) Copper
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Inner Sheath
- PVC (Polyvinyl Chloride)
- Screen
- Aluminum/Polyethylene tape
- Drain Wire
- Tinned copper
- Armour
- Galvanised steel wires (multicores), aluminium wires (single cores)
- Outer Sheath
- Special PVC (Polyvinyl Chloride)
Hydrocarbon-resistant cable Characteristics
- Voltage Rating (Uo/U)
- 0.6/1kV
- Temperature Rating
- -20°C to +60°C
Hydrocarbon-resistant cable Specification
| NO OF CORES | CONDUCTOR | NOMINAL DIAMETER OVER INSULATION mm² | NOMINAL DIAMETER OVER INNER SHEATH mm² | NOMINAL DIAMETER OVER INTERMEDIATE SHEATH mm² | NOMINAL DIAMETER OVER ARMOUR mm² | NOMINAL MIN O.D mm² | NOMINAL MAX O.D mm² | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|---|---|---|
| CROSS- SECTION mm² | TYPE | ||||||||
| 1 | 25 | RM | 7.9 | - | 11.5 | 15.3 | 18.3 | 20.2 | 619 |
| 1 | 35 | RM | 8.9 | - | 12.5 | 16.3 | 19.3 | 21.3 | 732 |
| 1 | 50 | RM | 10.2 | - | 13.8 | 17.6 | 20.6 | 22.7 | 891 |
| 1 | 70 | RM | 12 | - | 15.6 | 19.4 | 22.3 | 24.6 | 1129 |
| 1 | 95 | RM | 13.55 | - | 17.1 | 20.9 | 23.8 | 26.2 | 1394 |
| 1 | 120 | RM | 15.26 | - | 18.8 | 22.6 | 25.4 | 28 | 1665 |
| 1 | 150 | RM | 16.97 | - | 20.5 | 24.3 | 27.1 | 29.8 | 1963 |
| 1 | 185 | RM | 19.05 | - | 22.6 | 26.4 | 29.3 | 32.3 | 2383 |
| 1 | 240 | RM | 21.6 | - | 25.2 | 29 | 31.8 | 35.1 | 2975 |
| 1 | 300 | RM | 24.2 | - | 27.7 | 31.5 | 34.4 | 38 | 3613 |
| 1 | 400 | RM | 27.7 | - | 31.2 | 35 | 38 | 41.9 | 4505 |
| 2 | 1.5 | RE | 2.79 | 8 | 11.5 | 13.3 | 16.4 | 18.1 | 511 |
| 2 | 1.5 | RM | 2.9 | 8.2 | 11.8 | 13.6 | 16.7 | 18.4 | 525 |
| 2 | 2.5 | RE | 3.15 | 8.7 | 12.3 | 14.8 | 17.9 | 19.7 | 661 |
| 2 | 2.5 | RM | 3.31 | 9 | 12.6 | 15.1 | 18.1 | 20.0 | 682 |
| 2 | 4 | RE | 3.61 | 9.6 | 13.2 | 15.7 | 18.7 | 20.6 | 740 |
| 2 | 4 | RM | 3.83 | 10.1 | 13.7 | 16.2 | 19.2 | 21.2 | 766 |
| 2 | 6 | RM | 4.35 | 11.1 | 14.7 | 17.2 | 20.1 | 22.3 | 868 |
| 2 | 10 | RM | 5.25 | 12.9 | 16.5 | 19 | 22 | 24.2 | 1041 |
| 2 | 16 | RM | 6.25 | 14.9 | 18.5 | 21.7 | 24.5 | 27.1 | 1410 |
| 2 | 25 | RM | 7.9 | 18.2 | 21.7 | 24.9 | 27.6 | 30.5 | 1833 |
| 2 | 35 | RM | 8.9 | 20.2 | 23.7 | 26.9 | 29.8 | 32.8 | 2176 |
| 2 | 50 | RM | 10.2 | 22.8 | 26.3 | 29.5 | 32.5 | 35.8 | 2628 |
| 2 | 70 | RM | 12 | 26.4 | 29.9 | 33.9 | 37 | 40.8 | 3569 |
| 2 | 95 | RM | 13.55 | 29.5 | 33 | 37 | 40.2 | 44.3 | 4354 |
| 2 | 120 | RM | 15.26 | 32.9 | 36.4 | 40.4 | 43.7 | 48.2 | 5165 |
| 3 | 1.5 | RE | 2.79 | 8.4 | 12 | 14.5 | 17.6 | 19.4 | 636 |
| 3 | 1.5 | RM | 2.9 | 8.7 | 12.2 | 14.7 | 17.8 | 19.6 | 654 |
| 3 | 2.5 | RE | 3.15 | 9.2 | 12.8 | 15.3 | 18.3 | 20.2 | 703 |
| 3 | 2.5 | RM | 3.31 | 9.6 | 13.1 | 15.7 | 18.7 | 20.6 | 729 |
| 3 | 4 | RE | 3.61 | 10.2 | 13.8 | 16.3 | 19.3 | 21.3 | 805 |
| 3 | 4 | RM | 3.83 | 10.6 | 14.2 | 16.7 | 19.7 | 21.7 | 830 |
| 3 | 6 | RM | 4.35 | 11.8 | 15.4 | 17.9 | 20.9 | 23.0 | 951 |
| 3 | 10 | RM | 5.25 | 13.7 | 17.3 | 20.5 | 23.4 | 25.8 | 1291 |
| 3 | 16 | RM | 6.25 | 15.8 | 19.4 | 22.6 | 25.4 | 28.0 | 1590 |
| 3 | 25 | RM | 7.9 | 19.5 | 23 | 28.4 | 29 | 31.9 | 2097 |
| 3 | 35 | RM | 8.9 | 21.7 | 25.2 | 28.4 | 31.2 | 34.4 | 2533 |
| 3 | 50 | RM | 10.2 | 24.4 | 27.9 | 31.9 | 35 | 38.6 | 3347 |
| 3 | 70 | RM | 12 | 28.3 | 31.8 | 35.8 | 39 | 43 | 4255 |
| 3 | 95 | RM | 13.55 | 31.6 | 35.1 | 39.1 | 42.4 | 46.8 | 5265 |
| 4 | 1.5 | RE | 2.79 | 9.2 | 12.8 | 15.3 | 18.3 | 20.2 | 688 |
| 4 | 1.5 | RM | 2.9 | 9.4 | 13 | 15.5 | 18.5 | 20.4 | 712 |
| 4 | 2.5 | RE | 3.15 | 10 | 13.7 | 16.2 | 19.2 | 21.2 | 770 |
| 4 | 2.5 | RM | 3.31 | 10.4 | 14.1 | 16.6 | 19.6 | 21.6 | 799 |
| 4 | 4 | RE | 3.61 | 11.1 | 14.7 | 17.2 | 20.2 | 22.3 | 888 |
| 4 | 4 | RM | 3.83 | 11.7 | 15.3 | 17.8 | 20.8 | 22.9 | 917 |
| 4 | 6 | RM | 4.35 | 12.9 | 16.5 | 19 | 21.9 | 24.2 | 1052 |
| 4 | 10 | RM | 5.25 | 15 | 18.6 | 21.8 | 24.6 | 27.2 | 1467 |
| 4 | 16 | RM | 6.25 | 17.5 | 21.1 | 24.3 | 27 | 29.8 | 1836 |
| 4 | 25 | RM | 7.9 | 21.6 | 25.1 | 28.3 | 31.1 | 34.4 | 2477 |
| 4 | 35 | RM | 8.9 | 23.9 | 27.4 | 30.6 | 33.6 | 37 | 3010 |
| 4 | 50 | RM | 10.2 | 27 | 30.5 | 34.5 | 37.5 | 41.4 | 3964 |
| 4 | 70 | RM | 12 | 31.4 | 34.9 | 38.9 | 42.2 | 46.6 | 5123 |
| 5 | 1.5 | RE | 2.79 | 9.9 | 13.5 | 16 | 19 | 21 | 751 |
| 5 | 1.5 | RM | 2.9 | 10.2 | 13.9 | 16.4 | 19.4 | 21.4 | 774 |
| 5 | 2.5 | RE | 3.15 | 10.9 | 14.5 | 17 | 20 | 22 | 840 |
| 5 | 2.5 | RM | 3.31 | 11.3 | 14.9 | 17.4 | 20.4 | 22.5 | 870 |
| 5 | 4 | RE | 3.61 | 12.2 | 15.7 | 18.2 | 21.2 | 23.3 | 979 |
| 5 | 4 | RM | 3.83 | 12.7 | 16.3 | 18.8 | 21.7 | 24 | 1019 |
| 5 | 6 | RM | 4.35 | 14.1 | 17.7 | 20.9 | 23.9 | 26.2 | 1317 |
| 5 | 10 | RM | 5.25 | 16.5 | 20.1 | 23.3 | 26.1 | 28.8 | 1640 |
| 5 | 16 | RM | 6.25 | 19.2 | 22.8 | 26 | 28.7 | 31.7 | 2096 |
| 5 | 25 | RM | 7.9 | 23.7 | 27.2 | 30.4 | 33.4 | 36.8 | 2855 |
| 5 | 35 | RM | 8.9 | 26.4 | 29.9 | 33.9 | 37 | 40.8 | 3777 |
| 5 | 50 | RM | 10.2 | 29.9 | 33.4 | 37.4 | 40.6 | 44.7 | 4645 |
| 7 | 1.5 | RM | 2.9 | 10.8 | 14.3 | 16.8 | 19.8 | 21.8 | 797 |
| 7 | 2.5 | RM | 3.31 | 12.1 | 15.6 | 18.1 | 21.1 | 23.2 | 919 |
| 10 | 1.5 | RM | 2.9 | 13.7 | 17.2 | 20.4 | 23.3 | 25.7 | 1114 |
| 10 | 2.5 | RM | 3.31 | 15.3 | 18.8 | 22 | 24.8 | 27.4 | 1287 |
| 12 | 1.5 | RM | 2.9 | 14.3 | 17.8 | 21 | 23.9 | 26.3 | 1179 |
| 12 | 2.5 | RM | 3.31 | 15.9 | 19.4 | 22.6 | 25.4 | 28 | 1371 |
| 14 | 1.5 | RM | 2.9 | 15 | 18.5 | 21.7 | 24.5 | 27.1 | 1251 |
| 14 | 2.5 | RM | 3.31 | 16.7 | 20.2 | 23.4 | 26.2 | 28.9 | 1475 |
| 19 | 1.5 | RM | 2.9 | 16.6 | 20.1 | 23.3 | 26.1 | 28.8 | 1427 |
| 19 | 2.5 | RM | 3.31 | 18.7 | 22.2 | 25.4 | 28.1 | 31 | 1724 |
| 24 | 1.5 | RM | 2.9 | 19.5 | 23 | 26.2 | 28.9 | 31.9 | 1678 |
| 24 | 2.5 | RM | 3.31 | 22.1 | 25.6 | 28.8 | 31.6 | 34.9 | 2050 |
| 27 | 1.5 | RM | 2.9 | 20 | 23.5 | 26.7 | 29.6 | 32.6 | 1776 |
| 27 | 2.5 | RM | 3.31 | 22.5 | 26 | 29.2 | 32 | 35.3 | 2154 |
| 30 | 1.5 | RM | 2.9 | 20.7 | 24.2 | 27.4 | 30.3 | 33.4 | 1884 |
| 30 | 2.5 | RM | 3.31 | 23.4 | 26.9 | 30.1 | 33.1 | 36.5 | 2305 |
| 37 | 1.5 | RM | 2.9 | 22.4 | 25.9 | 29.1 | 29.1 | 35.2 | 2099 |
| 37 | 2.5 | RM | 3.31 | 25.3 | 28.8 | 32.8 | 32.8 | 39.6 | 2851 |
