N2XBY Cable

N2XBY Cable Description

N2XBY cables feature copper conductors, XLPE insulation, and a PVC outer jacket. Double-layer galvanized steel tape (GSTA) provides mechanical protection for the conductors. They are widely used in building power distribution projects and are suitable for both dry and wet environments, including burial in cable ducts.

While N2XBY cables feature copper conductors, aluminum conductors with PVC and LSZH jackets are also available, designated as NA2XBY and NA2XBH, respectively.

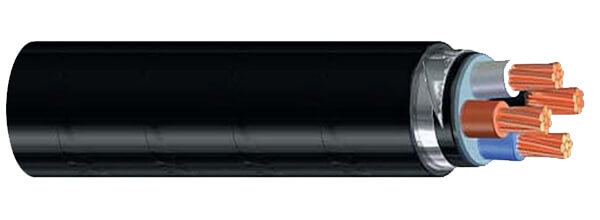

N2XBY Cable Construction

Conductor
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
PVC(Polyvinyl chloride )
Armour
Double galvanized steel tape
Outer Sheath
PVC(Polyvinyl chloride )

N2XBY Cable Characteristics

Voltage Rating Uo/U
0.6/1kV
Temperature Rating
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Minimum Bending Radius
12 x overall diameter

N2XBY Cable Specification

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF OUTER SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	2.5	1.76	0.7	1.24	13	276
2	4	2.21	0.7	1.24	14	326
2	6	2.71	0.7	1.24	15	384
2	10	3.85	0.7	1.24	17	498
2	16	4.8	0.7	1.24	19	649
2	25	5.85	0.9	1.24	22	882
2	35	6.9	0.9	1.32	24	1113
2	50	8.1	1	1.4	27	1421
2	70	9.7	1.1	1.48	31	1899
2	95	11.4	1.1	1.64	35	2482
3	1.5	1.36	0.7	1.24	12	265
3	2.5	1.76	0.7	1.24	14	342
3	4	2.21	0.7	1.24	15	417
3	6	2.71	0.7	1.24	16	501
3	10	3.85	0.7	1.24	19	704
3	16	4.8	0.7	1.24	21	938
3	25	5.85	0.9	1.24	24	1315
3	35	6.9	0.9	1.32	26	1682
3	50	8.1	1	1.4	29	2176
3	70	9.7	1.1	1.48	34	2949
3	95	11.4	1.1	1.64	38	4004
3	120	12.65	1.2	1.72	42	5215
3	150	14.4	1.4	1.88	47	6413
3	185	15.75	1.6	2.04	51	7719
3	240	18.2	1.7	2.2	58	9961
3	16+10	4.8	0.7	1.24	21	1073
3	25+16	5.85	0.9	1.24	25	1511
3	35+16	6.9	0.9	1.32	27	1861
3	50+25	8.1	1	1.4	30	2377
3	70+35	9.7	1.1	1.56	35	3235
3	95+70	11.4	1.1	1.64	39	4634
3	120+70	12.65	1.2	1.8	44	5813
3	150+70	14.4	1.4	1.88	48	6888
3	185+95	15.75	1.6	2.04	52	8412
3	240+120	18.2	1.7	2.2	59	10679
4	1.5	1.36	0.7	1.24	13	309
4	2.5	1.76	0.7	1.24	14	369
4	4	2.21	0.7	1.24	16	469
4	6	2.71	0.7	1.24	17	577
4	10	3.85	0.7	1.24	20	821
4	16	4.8	0.7	1.24	22	1113
4	25	5.85	0.9	1.32	25	1593
4	35	6.9	0.9	1.4	28	2060
4	50	8.1	1	1.48	32	2637
4	70	9.7	1.1	1.56	36	3611
4	95	11.4	1.1	1.72	41	5355
4	120	12.65	1.2	1.88	46	6590
4	150	14.4	1.4	1.96	51	8096
4	185	15.75	1.6	2.12	56	9795
4	240	18.2	1.7	2.36	63	12585
5	1.5	1.36	0.7	1.24	14	368
5	2.5	1.76	0.7	1.24	15	432
5	4	2.21	0.7	1.24	17	543
5	6	2.71	0.7	1.24	18	679
5	10	3.85	0.7	1.24	21	981
5	16	4.8	0.7	1.24	24	1351
5	25	5.85	0.9	1.32	28	1960
5	35	6.9	0.9	1.4	31	2539
5	50	8.1	1	1.48	35	3333
5	70	9.7	1	1.48	39	4507
5	95	11.4	1.1	1.56	44	6038
