N2XFGbY Cable Description
N2XFGbY cables utilize flat SWA and steel tape armor, effectively protecting against mechanical stress and accidental damage. Therefore, they are typically installed externally, including in direct burial. Their PVC outer jacket is both robust, UV-resistant, and flame-retardant.

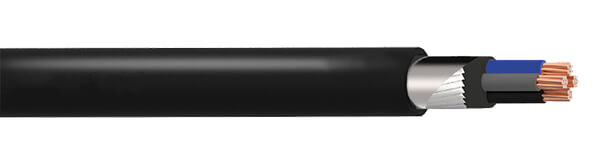

N2XFGbY Cable Construction
- Conductor
- Class 2 Stranded copper
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Filler
- PVC (Polyvinyl chloride)
- Armour 1
- SWA (Galvanised flat steel wire)
- Armour 2
- Galvanised steel tape
- Outer Sheath
- PVC (Polyvinyl chloride
N2XFGbY Cable Characteristics
- Voltage Rating Uo/U
- 0.6/1kV
- Temperature Rating
- Maximum Operating: +90ºC
- Maximum Short-Circuit: +250°C
- Minimum Bending Radius
- 12 x overall diameter
N2XFGbY Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 3 | 10 | 3.9 | 0.7 | 1.24 | 19 | 922 |
| 3 | 16 | 4.8 | 0.7 | 1.24 | 21 | 1186 |
| 3 | 25 | 5.9 | 0.9 | 1.24 | 24 | 1655 |
| 3 | 35 | 6.9 | 0.9 | 1.32 | 27 | 2100 |
| 3 | 50 | 8.2 | 1 | 1.4 | 31 | 2724 |
| 3 | 70 | 9.7 | 1.1 | 1.48 | 35 | 3608 |
| 3 | 95 | 11.4 | 1.1 | 1.64 | 39 | 4637 |
| 3 | 120 | 13.1 | 1.2 | 1.72 | 44 | 5701 |
| 3 | 150 | 14.2 | 1.4 | 1.88 | 47 | 6779 |
| 3 | 185 | 15.8 | 1.6 | 2.04 | 53 | 8437 |
| 3 | 240 | 18.6 | 1.7 | 2.2 | 60 | 10889 |
| 3 | 16/10 | 4.8 | 0.7 | 1.24 | 23 | 1372 |
| 3 | 25/16 | 5.9 | 0.9 | 1.24 | 26 | 1890 |
| 3 | 35/16 | 6.9 | 0.9 | 1.32 | 28 | 2286 |
| 3 | 50/25 | 8.2 | 1 | 1.4 | 32 | 3017 |
| 3 | 70/35 | 9.7 | 1.1 | 1.56 | 37 | 3990 |
| 3 | 95/50 | 11.4 | 1.1 | 1.64 | 41 | 5160 |
| 3 | 120/70 | 13.1 | 1.2 | 1.8 | 46 | 6428 |
| 3 | 150/70 | 14.2 | 1.4 | 1.88 | 49 | 7525 |
| 3 | 185/95 | 15.8 | 1.6 | 2.04 | 55 | 9429 |
| 3 | 240/120 | 18.6 | 1.7 | 2.2 | 62 | 11956 |
| 4 | 10 | 3.9 | 0.7 | 1.24 | 20 | 1071 |
| 4 | 16 | 4.8 | 0.7 | 1.24 | 23 | 1400 |
| 4 | 25 | 5.9 | 0.9 | 1.32 | 27 | 1985 |
| 4 | 35 | 6.9 | 0.9 | 1.4 | 30 | 2530 |
| 4 | 50 | 8.2 | 1 | 1.48 | 34 | 3299 |
| 4 | 70 | 9.7 | 1.1 | 1.56 | 38 | 4398 |
| 4 | 95 | 11.4 | 1.1 | 1.72 | 43 | 5693 |
| 4 | 120 | 13.1 | 1.2 | 1.88 | 48 | 7041 |
| 4 | 150 | 14.2 | 1.4 | 1.96 | 52 | 8495 |
| 4 | 185 | 15.8 | 1.6 | 2.12 | 58 | 10564 |
| 4 | 240 | 18.6 | 1.7 | 2.36 | 66 | 13684 |
| 4 | 300 | 21.5 | 1.9 | 3.06 | 78 | 17628 |
| 5 | 10 | 3.9 | 0.7 | 1.24 | 23 | 1342 |
| 5 | 16 | 4.8 | 0.7 | 1.24 | 24 | 1715 |
| 5 | 25 | 5.9 | 0.9 | 1.32 | 30 | 2536 |
| 5 | 35 | 6.9 | 0.9 | 1.4 | 33 | 3209 |
| 5 | 50 | 8.2 | 1 | 1.48 | 37 | 4192 |
