NA2XRH and NA2XRY Cable Description
These cables have a cross-linked polyethylene (XLPE) insulated stranded aluminum conductor covered with polyvinyl chloride (PVC) (NA2XRY) or low smoke zero halogen (LSZH) material (NA2XRH)
NA2XRH cable is a rugged and fireproof cable suitable for a wide range of applications where reliability and safety are critical, such as public buildings and infrastructure where maintaining circuit integrity is critical
NA2XRY cable is a popular choice for applications requiring mechanical protection and rugged performance, especially in environments where the cable may be buried or exposed to harsh conditions, such as fixed industrial power applications, underground tunnels, etc.

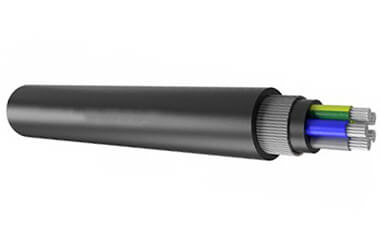

NA2XRY
NA2XRH and NA2XRY Cable Construction
| NA2XRY Aluminium Conductor IEC 60502-1 XLPE SWA PVC 0.6/1kV Cable | NA2XRH Aluminium Conductor IEC 60502-1 XLPE SWA HFFR 0.6/1kV Cable | |
|---|---|---|
| VOLTAGE | 0.6/1kV | |
| CONDUCTOR | Class 2 Stranded Aluminium | |
| INSULATION | XLPE (Cross-Linked Polyethylene) | |
| FILLER | PVC (Polyvinyl Chloride) | HFFR (Halogen Free Flame Retardant) |
| ARMOUR | Galvanised Round Steel Wire | |
| OUTER SHEATH | PVC (Polyvinyl Chloride) | HFFR (Halogen Free Flame Retardant) |

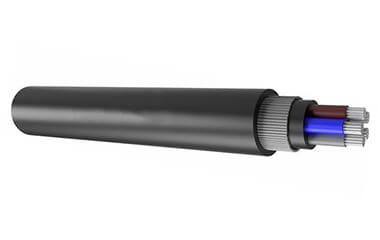

NA2XRH
NA2XRH and NA2XRY Cable Characteristics
- Voltage Rating Uo/U
- 0.6/1kV
- Temperature Range
- Fixed: -5°C to +90°C
- Minimum Bending Radius
- 15 x overall diameter
NA2XRH / NA2XRY Cable Code
- N: Standard metal cable type
- A: Aluminium
- 2X: XLPE insulation
- R: Round steel wire armour
- H: HFFR outersheath
- Y: PVC outersheath

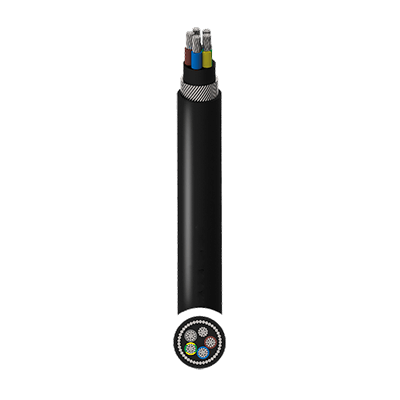

- NA2XRY Aluminium Conductor IEC 60502-1 XLPE SWA PVC 0.6/1kV Cable
- NA2XRH Aluminium Conductor IEC 60502-1 XLPE SWA HFFR 0.6/1kV Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL OUTER SHEATH THICKNESS mm | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 70 | 1.1 | 1.3 | 19.6 | 525 |
| 1 | 95 | 1.1 | 1.3 | 21.1 | 620 |
| 1 | 120 | 1.2 | 1.3 | 22.7 | 730 |
| 1 | 150 | 1.4 | 1.4 | 26.2 | 935 |
| 1 | 185 | 1.6 | 1.5 | 27.7 | 1085 |
| 1 | 240 | 1.7 | 1.5 | 30.3 | 1310 |
| 1 | 300 | 1.8 | 1.6 | 33 | 1560 |
| 1 | 400 | 2 | 1.7 | 36.9 | 1995 |
| 1 | 500 | 2.2 | 1.7 | 40.3 | 2375 |
| 1 | 630 | 2.4 | 1.8 | 44.8 | 2963 |
| 2 | 25 | 0.9 | 1.3 | 23.2 | 850 |
| 2 | 35 | 0.9 | 1.4 | 26.4 | 1165 |
| 2 | 50 | 1 | 1.6 | 29.8 | 1390 |
| 2 | 70 | 1.1 | 1.7 | 34.3 | 1925 |
| 2 | 95 | 1.1 | 1.7 | 37.3 | 2270 |
| 2 | 150 | 1.4 | 1.8 | 45.9 | 2945 |
| 2 | 185 | 1.6 | 2 | 50 | 3990 |
| 2 | 240 | 1.7 | 2.1 | 55.4 | 4760 |
| 2 | 300 | 1.8 | 2.1 | 60.8 | 5600 |
| 3 | 25 | 0.9 | 1.4 | 25.4 | 1100 |
| 3 | 35 | 0.9 | 1.5 | 28 | 1300 |
| 3 | 50 | 1 | 1.5 | 28.1 | 1370 |
| 3 | 70 | 1.1 | 1.6 | 31.6 | 1700 |
| 3 | 95 | 1.1 | 1.7 | 35.6 | 2215 |
| 3 | 120 | 1.2 | 1.8 | 39 | 2610 |
| 3 | 150 | 1.4 | 1.9 | 43.1 | 3485 |
| 3 | 185 | 1.6 | 2 | 47.1 | 4065 |
| 3 | 240 | 1.7 | 2.1 | 52 | 4900 |
| 3 | 300 | 1.8 | 2.2 | 57.1 | 5750 |
| 3 | 400 | 2 | 2.4 | 64.3 | 7105 |
| 4 | 25 | 0.9 | 1.4 | 27.4 | 1265 |
| 4 | 35 | 0.9 | 1.5 | 30.3 | 1520 |
| 4 | 50 | 1 | 1.6 | 31.8 | 1655 |
| 4 | 70 | 1.1 | 1.7 | 36.6 | 2320 |
| 4 | 95 | 1.1 | 1.8 | 39.3 | 2755 |
| 4 | 120 | 1.2 | 1.9 | 44.4 | 3635 |
| 4 | 150 | 1.4 | 2 | 48.9 | 4280 |
| 4 | 185 | 1.6 | 2.1 | 53.7 | 5025 |
| 4 | 240 | 1.7 | 2.2 | 59.7 | 6105 |
| 4 | 300 | 1.8 | 2.4 | 65.3 | 7315 |
| 5 | 25 | 0.9 | 1.5 | 29.7 | 1530 |
| 5 | 35 | 0.9 | 1.6 | 32.9 | 1830 |
| 5 | 50 | 1 | 1.7 | 37.8 | 2535 |
| 5 | 70 | 1.1 | 1.8 | 43 | 3250 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL OUTER SHEATH THICKNESS mm | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 70 | 1.1 | 1.3 | 19.6 | 525 |
| 1 | 95 | 1.1 | 1.3 | 21.1 | 620 |
| 1 | 120 | 1.2 | 1.3 | 22.7 | 730 |
| 1 | 150 | 1.4 | 1.4 | 26.2 | 935 |
| 1 | 185 | 1.6 | 1.5 | 27.7 | 1085 |
| 1 | 240 | 1.7 | 1.5 | 30.3 | 1310 |
| 1 | 300 | 1.8 | 1.6 | 33 | 1560 |
| 1 | 400 | 2 | 1.7 | 36.9 | 1995 |
| 1 | 500 | 2.2 | 1.7 | 40.3 | 2375 |
| 1 | 630 | 2.4 | 1.8 | 44.8 | 2963 |
| 2 | 25 | 0.9 | 1.3 | 23.2 | 850 |
| 2 | 35 | 0.9 | 1.4 | 26.4 | 1165 |
| 2 | 50 | 1 | 1.6 | 29.8 | 1390 |
| 2 | 70 | 1.1 | 1.7 | 34.3 | 1925 |
| 2 | 95 | 1.1 | 1.7 | 37.3 | 2270 |
| 2 | 150 | 1.4 | 1.8 | 45.9 | 2945 |
| 2 | 185 | 1.6 | 2 | 50 | 3990 |
| 2 | 240 | 1.7 | 2.1 | 55.4 | 4760 |
| 2 | 300 | 1.8 | 2.1 | 60.8 | 5600 |
| 3 | 25 | 0.9 | 1.4 | 25.4 | 1100 |
| 3 | 35 | 0.9 | 1.5 | 28 | 1300 |
| 3 | 50 | 1 | 1.5 | 28.1 | 1370 |
| 3 | 70 | 1.1 | 1.6 | 31.6 | 1700 |
| 3 | 95 | 1.1 | 1.7 | 35.6 | 2215 |
| 3 | 120 | 1.2 | 1.8 | 39 | 2610 |
| 3 | 150 | 1.4 | 1.9 | 43.1 | 3485 |
| 3 | 185 | 1.6 | 2 | 47.1 | 4065 |
| 3 | 240 | 1.7 | 2.1 | 52 | 4900 |
| 3 | 300 | 1.8 | 2.2 | 57.1 | 5750 |
| 3 | 400 | 2 | 2.4 | 64.3 | 7105 |
| 4 | 25 | 0.9 | 1.4 | 27.4 | 1265 |
| 4 | 35 | 0.9 | 1.5 | 30.3 | 1520 |
| 4 | 50 | 1 | 1.6 | 31.8 | 1655 |
| 4 | 70 | 1.1 | 1.7 | 36.6 | 2320 |
| 4 | 95 | 1.1 | 1.8 | 39.3 | 2755 |
| 4 | 120 | 1.2 | 1.9 | 44.4 | 3635 |
| 4 | 150 | 1.4 | 2 | 48.9 | 4280 |
| 4 | 185 | 1.6 | 2.1 | 53.7 | 5025 |
| 4 | 240 | 1.7 | 2.2 | 59.7 | 6105 |
| 4 | 300 | 1.8 | 2.4 | 65.3 | 7315 |
| 5 | 25 | 0.9 | 1.5 | 29.7 | 1530 |
| 5 | 35 | 0.9 | 1.6 | 32.9 | 1830 |
| 5 | 50 | 1 | 1.7 | 37.8 | 2535 |
| 5 | 70 | 1.1 | 1.8 | 43 | 3250 |
