NAYRY-J/O Cable Description
NAYRY cables are typically three-core with reduced-diameter grounding, using sector (SM) conductors. Other core counts and sizes are available upon request, or RM round stranded conductors can be used. This cable is specifically designed for low-voltage distribution, with a rated voltage of 0.6/1kV.
NAYRY-J cables (-J stands for green/yellow core) are commonly used in stationary industrial power applications in Europe. It should be noted that while the steel wire armor provides mechanical protection, it also makes it quite rigid, with a bending radius that can reach 15 times the total diameter of the cable.

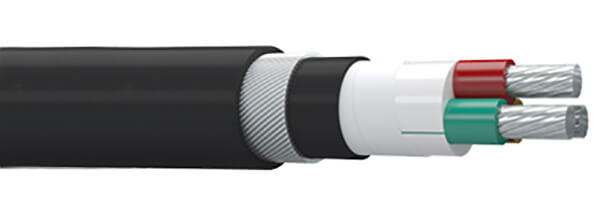

NAYRY-J/O Cable Construction
- Conductor
- Class 2 round or sectorial Aluminium
- Insulation
- PVC (Polyvinyl chloride)
- Armour
- SWA (Steel Wire Armour)
- Separator
- Plastic Tape or Bedding material
- Outer Sheath
- PVC (Polyvinyl Chloride) – UV resistant
NAYRY-J/O Cable Characteristics
- Voltage Rating Uo/U
- 0.6/1kV
- Temperature Rating
- Laying temperature: min -5ºC
- Operating temperature: -50ºC to +70ºC
- Maximum conductor temperature: +70ºC
- Short Circuit Temperature
- 160°C
- Minimum Bending Radius
- 15 x overall diameter
NAYRY-J/O Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR TYPE | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 3+1 | 35+16 | SM/RM | 31 | 1460 |
| 3+1 | 50+25 | SM/RM | 35.7 | 1910 |
| 3+1 | 70+35 | SM/RM | 39.6 | 2460 |
| 3+1 | 95+50 | SM/RM | 46 | 3035 |
| 3+1 | 120+70 | SM/RM | 49 | 3785 |
| 3+1 | 150+95 | SM/RM | 54.5 | 4610 |
| 3+1 | 185+95 | SM/RM | 59.8 | 5425 |
| 3+1 | 240+120 | SM/RM | 68.9 | 6575 |
