NYBY Cable Description
NYBY cables are designed for use in environments where mechanical damage is a concern, such as indoor and outdoor fixed installations, cable ducts, and buried installations, as well as industrial facilities, providing both power distribution and mechanical protection.
The name “NYBY” reflects its construction: the “N” represents standard PVC insulation (not weatherproof), the “Y” represents the PVC jacket, the “B” represents the steel tape armor, and the final “Y” means an additional PVC outer layer. This construction enables NYBY cables to withstand physical stress and environmental challenges while safely transmitting power.

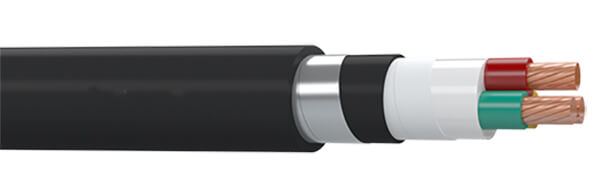

NYBY Cable Construction
- Conductor
- Class 2 Stranded copper
- Insulation
- PVC (Polyvinyl chloride)
- Filler
- PVC (Polyvinyl chloride)
- Armour
- Double galvanized steel tape
- Outer Sheath
- PVC (Polyvinyl chloride)
NYBY Cable Characteristics
- Voltage Rating Uo/U
- 0.6/1kV
- Temperature Rating
- Maximum Operating: +70ºC
- Maximum Short-Circuit: +160°C
- Minimum Bending Radius
- 12 x overall diameter
NYBY Cable Core Identification
- 2 core: Brown, Blue
- 3 core: Brown, Blue, Green/Yellow
- 4 core: Brown, Black, Grey, Green/Yellow
- 5 core: Brown, Blue, Black, Grey, Green/Yellow
NYBY Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 2 | 1.5 | 1.37 | 0.8 | 1.24 | 12 | 273 |
| 2 | 2.5 | 1.76 | 0.8 | 1.24 | 13 | 319 |
| 2 | 4 | 2.22 | 1 | 1.24 | 15 | 415 |
| 2 | 6 | 2.72 | 1 | 1.24 | 15 | 469 |
| 2 | 10 | 3.85 | 1 | 1.24 | 18 | 639 |
| 2 | 16 | 4.8 | 1 | 1.24 | 20 | 830 |
| 2 | 25 | 5.85 | 1.2 | 1.24 | 23 | 1154 |
| 2 | 35 | 6.9 | 1.2 | 1.32 | 25 | 1481 |
| 2 | 50 | 8.1 | 1.4 | 1.4 | 29 | 1923 |
| 2 | 70 | 9.7 | 1.4 | 1.48 | 33 | 2747 |
| 3 | 10 | 3.85 | 1 | 1.24 | 19 | 742 |
| 3 | 16 | 4.8 | 1 | 1.24 | 21 | 985 |
| 3 | 25 | 5.85 | 1.2 | 1.24 | 24 | 1403 |
| 3 | 35 | 6.9 | 1.2 | 1.32 | 27 | 1818 |
| 3 | 50 | 8.1 | 1.4 | 1.4 | 31 | 2381 |
| 3 | 70 | 9.7 | 1.4 | 1.48 | 34 | 3179 |
| 3 | 95 | 11.4 | 1.6 | 1.64 | 39 | 4249 |
| 3 | 120 | 12.65 | 1.6 | 1.72 | 42 | 5128 |
| 3 | 150 | 14.4 | 1.8 | 1.88 | 48 | 6384 |
| 3 | 185 | 15.75 | 2 | 2.04 | 52 | 7806 |
| 3 | 240 | 18.2 | 2.2 | 2.2 | 59 | 10156 |
| 3 | 16+10 | 4.8 | 1 | 1.24 | 23 | 1280 |
| 3 | 25+16 | 5.85 | 1.2 | 1.24 | 26 | 1777 |
| 3 | 35+16 | 6.9 | 1.2 | 1.32 | 29 | 2167 |
| 3 | 50+25 | 8.1 | 1.4 | 1.4 | 33 | 2853 |
| 3 | 70+35 | 9.7 | 1.4 | 1.56 | 37 | 3770 |
| 3 | 95+50 | 11.4 | 1.6 | 1.64 | 42 | 4975 |
| 3 | 120+70 | 12.65 | 1.6 | 1.8 | 46 | 6131 |
| 3 | 150+70 | 14.4 | 1.8 | 1.88 | 50 | 7288 |
| 3 | 185+95 | 15.75 | 2 | 2.04 | 55 | 8960 |
| 3 | 240+120 | 18.2 | 2.2 | 2.2 | 61 | 11377 |
| 4 | 1.5 | 1.5 | 0.8 | 1.24 | 14 | 338 |
| 4 | 2.5 | 1.76 | 0.8 | 1.24 | 15 | 391 |
| 4 | 4 | 2.21 | 1 | 1.24 | 17 | 531 |
| 4 | 6 | 2.72 | 1 | 1.24 | 15 | 539 |
| 4 | 10 | 3.85 | 1 | 1.24 | 21 | 1016 |
| 4 | 16 | 4.8 | 1 | 1.24 | 23 | 1215 |
| 4 | 25 | 5.85 | 1.2 | 1.32 | 27 | 1900 |
| 4 | 35 | 6.9 | 1.2 | 1.4 | 30 | 2435 |
| 4 | 50 | 8.1 | 1.4 | 1.48 | 34 | 3173 |
| 4 | 70 | 9.7 | 1.4 | 1.56 | 38 | 4205 |
| 4 | 95 | 11.4 | 1.6 | 1.72 | 44 | 5594 |
| 4 | 120 | 12.65 | 1.6 | 1.88 | 47 | 6761 |
| 4 | 150 | 14.4 | 1.8 | 1.96 | 53 | 8335 |
| 4 | 185 | 15.75 | 2 | 2.12 | 58 | 10146 |
| 4 | 240 | 18.2 | 2.2 | 2.36 | 66 | 13204 |
| 5 | 1.5 | 1.37 | 0.8 | 1.24 | 14 | 372 |
| 5 | 2.5 | 1.76 | 0.8 | 1.24 | 16 | 453 |
| 5 | 4 | 2.21 | 1 | 1.24 | 18 | 620 |
| 5 | 6 | 2.72 | 1 | 1.24 | 19 | 756 |
| 5 | 10 | 3.85 | 1 | 1.24 | 23 | 1123 |
| 5 | 16 | 4.8 | 1 | 1.24 | 25 | 1559 |
| 5 | 25 | 5.85 | 1.2 | 1.32 | 30 | 2241 |
| 5 | 35 | 6.9 | 1.2 | 1.4 | 33 | 2883 |
| 5 | 50 | 8.1 | 1.4 | 1.48 | 37 | 3804 |
