NYFGbY Cable

NYFGbY Cable Description

The galvanized flat steel wire and galvanized steel tape used in NYFGbY cable provide mechanical protection and are suitable for applications subject to higher tensile stresses during installation or operation.

The steel wire armor is suitable for direct burial installation. The flat wire (compared to standard SWA round wire) results in a slightly smaller overall cable diameter, making it suitable for use in space-constrained applications.

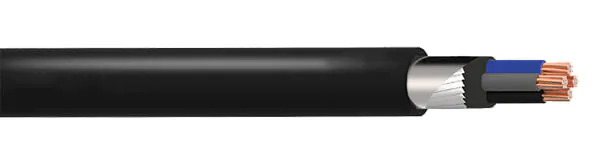

NYFGbY Cable Construction

Conductor
Class 2 Stranded copper
Insulation
PVC (Polyvinyl chloride)
Filler
PVC (Polyvinyl chloride)
Armour 1
SWA (Galvanised flat steel wire)
Armour 2
Galvanized steel tape
Outer Sheath
PVC (Polyvinyl chloride)

NYFGbY Cable Characteristics

Voltage Rating Uo/U
0.6/1kV
Temperature Rating
Maximum Operating: +70ºC
Maximum Short-Circuit: +160°C
Minimum Bending Radius
12 x overall diameter

NYFGbY Cable Specification

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF OUTER SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	10	3.9	1	1	19	815
2	16	4.7	1	1	21	1028
2	25	5.9	1.2	1	24	1378
2	35	6.9	1.2	1	26	1714
2	50	8.2	1.4	1.08	30	2209
2	70	9.7	1.4	1.16	33	2844
2	95	11.4	1.6	1.24	38	3706
3	10	3.9	1	1	20	967
3	16	4.8	1	1	22	1244
3	25	5.9	1.2	1	25	1699
3	35	6.9	1.2	1.08	28	2144
3	50	8.2	1.4	1.16	32	2780
3	70	9.7	1.4	1.24	36	3611
3	95	11.4	1.6	1.4	41	4728
3	120	13.1	1.6	1.4	44	5712
3	150	14.2	1.8	1.72	49	6807
3	185	15.8	2	1.8	54	8292
3	240	18.6	2.2	1.88	61	10742
3	10/16	4.8	1	1	23	1363
3	25/16	5.9	1.2	1	27	1868
3	35/16	6.9	1.2	1	29	2256
3	50/25	8.2	1.4	1.16	33	2973
3	70/35	9.7	1.4	1.24	37	3908
3	95/50	11.4	1.6	1.32	42	5145
3	120/70	13.1	1.6	1.48	47	6384
3	150/70	14.2	1.8	1.56	50	7450
3	185/95	15.8	2	1.64	55	9159
3	240/120	18.6	2.2	1.8	61	11479
4	10	3.9	1	1	21	1112
4	16	4.8	1	1	24	1453
4	25	5.9	1.2	1	27	2002
4	35	6.9	1.2	1.08	30	2505
4	50	8.2	1.4	1.16	34	3278
4	70	9.7	1.4	1.24	38	4286
4	95	11.4	1.6	1.4	44	5732
4	120	13.1	1.6	1.48	48	6944
4	150	14.2	1.8	1.64	53	8486
4	185	15.8	2	1.8	59	10360
4	240	18.6	2.2	1.96	67	13432
5	10	3.9	1	1	23	1299
5	16	4.8	1	1	26	1735
5	25	5.9	1.2	1.08	30	2460
5	35	6.9	1.2	1.16	34	3098
5	50	8.2	1.4	1.24	38	4053
