NYFGY Cable

NYFGY Cable Description

NYFGY cables are typically configured with 3 cores, with core diameters ranging from 35mm² to 240mm². They feature PVC insulation and sheathing, and have an operating temperature range of -5℃ to +70℃. They are suitable for locations with a high risk of mechanical damage, such as power plants and industrial equipment installations.

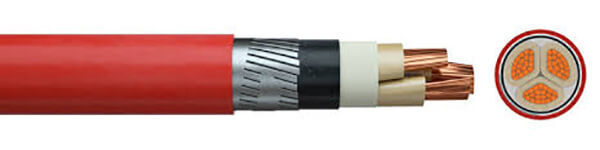

NYFGY Cable Construction

Conductor
Class 2 stranded copper conductor
Insulation
PVC (Polyvinyl Chloride)
Inner Sheath
PVC (Polyvinyl Chloride)
Armour
SWA (Steel Wire Armour)
Outer Sheath
PVC (Polyvinyl Chloride)

NYFGY Cable Characteristics

Voltage Rating
3.6/6 (7.2)kV
Temperature Rating
Fixed: -5; +70 °C
Maximum conductor temperature: 70°C
Minimum Bending Radius
15 x Overall diameter

NYFGY Cable Specification

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
3	35	37	2450
3	50	39	3100
3	70	43	3700
3	95	44	4600
3	120	47	5450
3	150	59	7300
3	185	61	7550
3	240	64	9641
