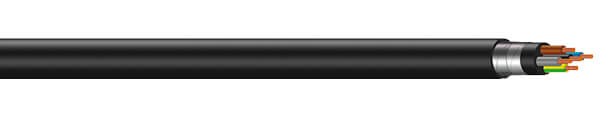

RVFV-K Cable

RVFV-K Cable Description

RVFV-K cable features double-layer steel tape armor (multi-core) or double-layer aluminum tape armor (single-core), offering high resistance to mechanical impact, abrasion, and rodent damage. It is also resistant to UV radiation and chemicals, making it suitable for direct burial. Common applications include industrial plants, street lighting, warehouses, and agricultural facilities.

RVFV-K Cable Construction

Conductor
Copper, class 5 (flexible)
Insulation
Cross-linked polyethylene (XLPE)
Armour
Double steel or aluminium tape armour
Beding
PVC
Outer sheath
PVC (flexible)

RVFV-K Cable Characteristic

Voltage Rating
0,6/1kV
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Minimum installation and handling temperature: 0ºC.
Mechanical performance
Minimum bending radius during installation: 10x cable diameter.

RVFV-K Cable Specifications

Cross-section (mm²)	Diameter (mm)	Weight (kg/km)	Open air (A)	Buried (A)	Voltage drop (V/A·km)
1 x 16	14,6	375	124	100	3,08
1 x 25	15,9	465	161	129	1,98
1 x 35	16,1	530	200	155	1,41
1 x 50	17,7	685	242	183	0,984
1 x 70	19,5	895	310	225	0,639
1 x 95	21,2	1.115	377	270	0,525
1 x 120	23,0	1.375	437	306	0,410
1 x 150	24,8	1.665	504	343	0,328
1 x 185	26,9	1.98	575	387	0,270
1 x 240	29,9	2.535	679	448	0,204
1 x 300	32,5	3.1	783	502	0,163
1 x 400	37,6	4.11	940	592	0,123
1 x 500	41,3	5.22	1.083	670	0,097
2 x 1,5	12,3	225	26	27	33,9
2 x 2,5	13,2	270	36	35	20,3
2 x 4	14,1	320	49	46	12,6
2 x 6	15,7	420	63	58	8,41
2 x 10	17,1	530	86	77	4,87
2 x 16	18,6	690	115	100	3,08
2 x 25	21,1	925	149	129	1,98
3 G 1,5	11,6	220	26	27	33,9
3 G 2,5	12,5	270	36	35	20,3
3 x 4	13,6	335	49	46	12,6
3 x 6	14,7	415	63	58	8,41
3 x 10	17,1	595	86	77	4,87
3 x 16	19,3	815	115	100	3,08
3 x 25	21,9	1.11	149	129	1,98
3 x 35	24,6	1.455	185	155	1,41
3 x 50	28,6	1.99	225	183	0,984
3 x 70	31,4	2.63	289	225	0,639
3 x 95	37,9	3.78	352	270	0,525
3 x 120	41,3	4.64	410	306	0,410
3 x 150	46,5	5.735	473	343	0,328
3 x 185	51,5	6.915	542	387	0,270
3 x 16 + 1 x 10	20,2	920	115	100	3,08
3 x 25 + 1 x 16	22,9	1.285	149	129	1,98
3 x 35 + 1 x 16	25,3	1.625	185	155	1,41
3 x 50 + 1 x 25	29,9	2.265	225	183	0,984
3 x 70 + 1 x 35	34,2	3.05	289	225	0,639
3 x 95 + 1 x 50	39,4	4.29	352	270	0,525
3 x 120 + 1 x 70	43,1	5.375	410	306	0,410
3 x 150 + 1 x 70	48,2	6.51	473	343	0,328
3 x 185 + 1 x 95	53,8	7.91	542	387	0,270
3 x 240 + 1 x 120	61,3	10.165	641	448	0,204
4 G 1,5	12,4	250	26	27	33,9
4 G 2,5	13,2	310	36	35	20,3
4 x 4	14,7	400	49	46	12,6
4 x 6	16,2	505	63	58	8,41
4 x 10	18,3	710	86	77	4,87
4 x 16	20,7	985	115	100	3,08
4 x 25	24,2	1.38	149	129	1,98
4 x 35	26,2	1.785	185	155	1,41
4 x 50	31,4	2.49	225	183	0,984
4 x 70	37,1	3.72	289	225	0,639
4 x 95	41,2	4.68	352	270	0,525
4 x 120	46,5	5.89	410	306	0,410
4 x 150	51,6	7.265	473	343	0,328
4 x 185	57,0	8.735	542	387	0,270
4 x 240	64,5	11.245	641	448	0,204
5 G 1,5	13,1	285	26	27	33,9
5 G 2,5	14,3	355	36	35	20,3
5 G 4	16,1	470	49	46	12,6
5 G 6	17,5	590	63	58	8,41
5 G 10	20,0	840	86	77	4,87
5 G 16	23,0	1.185	115	100	3,08
5 G 25	26,1	1.66	149	129	1,98
5 G 35	29,3	2.19	185	155	1,41
5 G 50	35,2	3.05	225	183	0,984
5 G 70	40,8	4.485	289	225	0,639
5 G 95	45,7	5.72	352	270	0,525
5 G 120	51,7	7.215	410	306	0,410
5 G 150	57,3	8.835	473	343	0,328
5 G 185	63,2	10.62	542	387	0,270
5 G 240	71,7	13.705	641	448	0,204
6 G 1,5	14,0	320	26	27	29,5
6 G 2,5	15,6	415	36	35	17,7
6 G 4	17,4	540	49	46	11,0
7 G 1,5	13,8	330	26	27	33,9
7 G 2,5	15,3	425	36	35	20,3
7 G 4	17,2	565	49	46	12,6
10 G 1,5	16,0	420	26	27	33,9
10 G 2,5	17,3	540	36	35	20,3
12 G 1,5	16,8	465	26	27	33,9
12 G 2,5	18,8	620	36	35	20,3
12 G 4	21,8	850	49	46	12,6
14 G 1,5	18,2	530	26	27	29,5
14 G 2,5	20,2	700	36	35	17,7
16 G 1,5	18,7	575	26	27	29,5
16 G 2,5	20,7	760	36	35	17,7
19 G 1,5	19,3	630	26	27	33,9
19 G 2,5	22,5	845	36	35	20,3
19 G 4	24,6	1.17	49	46	12,6
24 G 1,5	21,2	740	26	27	33,9
24 G 2,5	23,5	1	36	35	20,3
24 G 4	29,1	1.46	49	46	12,6
27 G 1,5	22,4	805	26	27	33,9
27 G 2,5	25,8	1.11	36	35	20,3
37 G 1,5	24,6	995	26	27	33,9
37 G 2,5	28,1	1.395	36	35	20,3
61 G 1,5	30,4	1.515	26	27	33,9
