RVhMVh-K Cable

RVhMVh-K Cable Description

RVhMVh-K cables feature Category 5 flexible copper conductors, XLPE insulation, galvanized steel wire armor (SWA), and a UV-resistant PVC sheath, providing excellent rodent, chemical, and water resistance. They are suitable for locations requiring high mechanical protection (e.g., oil refineries, chemical plants, industrial areas), and can also be used in manufacturing plants, agricultural facilities, and street lighting.

Compared to standard flexible armored cables, RVhMVh-K offers superior resistance to hydrocarbons/oils and lower halogen emissions, enabling it to withstand higher levels of chemical/oil exposure.

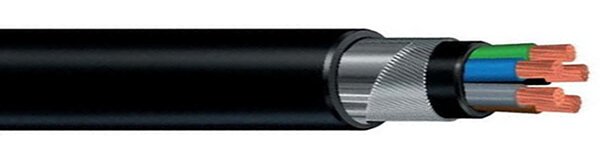

RVhMVh-K Cable Construction

Conductor
Annealed electrolytic copper, class 5 (flexible)
Insulation
XLPE (Cross-linked polyethylene)
Armour
Galvanized steel wire armour
Outer sheath
PVC (Polyvinyl Chloride)

RVhMVh-K Cable Characteristics

Voltage Rating
0.6/1kV
Thermal performance
Maximum conductor temperature: 90ºC
Maximum short-circuittemperature: 250ºC (max. 5 s)
Minimum service temperature: -40ºC
Minimum bending radius during instrallation
x10 cable diameter

RVhMVh-K Cable Specifications

Section (mm²)	Diameter (mm)	Weight (kg/km)	Open Air (A)	Buried (A)	Voltage Drop (V/A·km)
1 x 16	14,8	375	124	100	3,08
1 x 25	16,5	495	161	129	1,98
1 x 35	17,4	600	200	155	1,41
1 x 50	19,2	770	242	183	0,984
1 x 70	21,0	985	310	225	0,693
1 x 95	22,7	1.22	377	270	0,525
1 x 120	24,5	1.48	437	306	0,410
1 x 150	26,2	1.775	504	343	0,328
1 x 185	28,5	2.11	575	387	0,270
1 x 240	31,6	2.69	679	448	0,204
1 x 300	34,3	3.33	783	502	0,163
1 x 400	39,2	4.32	940	563	0,123
1 x 500	45,2	5.71	1.083	637	0,0979
1 x 630	51,4	7.385	1.254	719	0,0731
2 x 1,5	11,3	250	26	27	33,9
2 x 2,5	12,3	300	36	35	20,3
2 x 4	13,4	365	49	46	12,6
2 x 6	14,4	430	63	58	8,41
2 x 10	17,0	660	86	77	4,87
2 x 16	18,7	770	115	100	3,08
2 x 25	23,6	1.35	149	129	1,98
2 x 35	25,7	1.65	185	155	1,41
2 x 50	29,6	2.165	225	183	0,984
2 x 70	33,5	2.79	289	225	0,639
3 x 1,5	12,0	280	26	27	33,9
3 x 2,5	12,9	335	36	35	20,3
3 x 4	14,1	410	49	46	12,6
3 x 6	15,3	500	63	58	8,41
3 x 10	17,8	695	86	77	4,87
3 x 16	20,2	1.08	115	100	3,08
3 x 25	24,4	1.565	149	129	1,98
3 x 35	27,4	1.97	185	155	1,41
3 x 50	31,2	2.595	225	183	0,984
3 x 70	36,6	4.02	289	225	0,639
3 x 95	41,8	5.005	352	270	0,525
3 x 120	45,1	5.98	410	306	0,410
3 x 150	50,3	7.215	473	343	0,328
3 x 185	55,1	8.51	542	387	0,270
3 x 240	61,5	10.64	641	448	0,204
3 x 16 + 1 x 10	22,9	1.345	115	100	3,08
3 x 25 + 1 x 16	25,5	1.75	149	129	1,98
3 x 35 + 1 x 16	28,0	2.165	185	155	1,41
3 x 50 + 1 x 25	32,4	2.885	225	183	0,984
3 x 70 + 1 x 35	39,4	4.56	289	225	0,639
3 x 95 + 1 x 50	43,2	5.575	352	270	0,525
4 x 1,5	12,8	315	26	27	33,9
4 x 2,5	13,6	375	36	35	20,3
4 x 4	15,3	480	49	46	12,6
4 x 6	16,6	590	63	58	8,41
4 x 10	19,1	815	86	77	4,87
4 x 16	23,8	1.415	115	100	3,08
4 x 25	26,7	1.885	149	129	1,98
4 x 35	29,0	2.34	185	155	1,41
4 x 50	34,1	3.155	225	183	0,984
4 x 70	40,9	4.93	289	225	0,639
4 x 95	45,0	6.02	352	270	0,525
4 x 120	50,4	7.365	410	306	0,410
4 x 150	55,3	8.895	473	343	0,328
4 x 185	60,3	10.46	542	387	0,270
4 x 240	68,0	13.285	641	448	0,204
5 G 1,5	13,5	350	26	27	33,9
5 G 2,5	14,6	435	36	35	20,3
5 G 4	16,5	555	49	46	12,6
5 G 6	17,9	680	63	58	8,41
5 G 10	22,8	1.265	86	77	4,87
5 G 16	25,7	1.665	115	100	3,08
5 G 25	28,9	2.215	149	129	1,98
5 G 35	32,0	2.81	185	155	1,41
5 G 50	37,7	3.79	225	183	0,984
5 G 70	44,7	5.83	289	225	0,639
6 G 1,5	14,2	385	26	27	33,9
6 G 2,5	15,7	490	36	35	20,3
7 G 1,5	14,2	400	26	27	33,9
7 G 2,5	15,7	510	36	35	20,3
10 G 1,5	16,3	510	26	27	33,9
10 G 2,5	17,7	640	36	35	20,3
12 G 1,5	17,4	575	26	27	33,9
12 G 2,5	20,9	1	36	35	20,3
14 G 1,5	18,1	620	26	27	33,9
14 G 2,5	22,3	1.105	36	35	20,3
16 G 1,5	21,2	965	26	27	33,9
16 G 2,5	23,2	1.205	36	35	20,3
19 G 1,5	21,9	1.035	26	27	33,9
19 G 2,5	24,1	1.305	36	35	20,3
24 G 1,5	23,8	1.145	26	27	33,9
24 G 2,5	26,1	1.5	36	35	20,3
27 G 1,5	25,0	1.295	26	27	33,9
