RVMV-K and RVMAV-K Cable Description
RVMV-K and RVMAV-K cables feature Category 5 flexible copper conductors, cross-linked polyethylene (XLPE) insulation, and a polyvinyl chloride (PVC) sheath. Single-core cables are designated RVMAV-K, where the “A” indicates the use of aluminum wire, while multi-core RVMV-K cables use steel wire. Applications span industries such as petrochemicals and power plants.

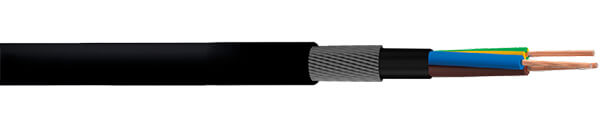

RVMV-K and RVMAV-K Cable Construction
| RVMV-K Cable | RVMAV-K Cable | |
|---|---|---|
| Conductor | Class 5 flexible stranded Copper | |
| Insulation | XLPE (Cross-linked Polyethylene) | |
| Inner Sheath | PVC (Polyvinyl Chloride) | |
| Armour | SWA (Steel Wire Armour) | AWA (Aluminium Wire Armour) |
| Outer Sheath | PVC (Polyvinyl Chloride) | |
RVMV-K and RVMAV-K Cable Characteristics
- Voltage Rating Uo/U
- 0.6/1kV
- Temperature Rating
- Operating: -15ºC to +90ºC
- Maximum Short Circuit Temperature: 250ºC (Max. 5 seconds)
- RVMV-K Cable
- RVMAV-K Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL DIAMETER OF INNER SHEATH mm | NOMINAL DIAMETER OF WIRE mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 2 | 1.5 | 0.7 | 8.4 | 0.8 | 1.4 | 12.8 | 322 |
| 2 | 2.5 | 0.7 | 9.2 | 0.8 | 1.4 | 13.6 | 367 |
| 2 | 4 | 0.7 | 10.2 | 0.8 | 1.4 | 14.6 | 431 |
| 2 | 6 | 0.7 | 11.3 | 0.8 | 1.4 | 15.7 | 506 |
| 2 | 10 | 0.7 | 13.2 | 0.8 | 1.5 | 17.8 | 664 |
| 2 | 16 | 0.7 | 15.3 | 0.8 | 1.6 | 20.1 | 863 |
| 2 | 25 | 0.9 | 18.5 | 1.6 | 1.8 | 25.3 | 1540 |
| 2 | 35 | 0.9 | 20.9 | 1.6 | 1.8 | 27.7 | 1882 |
| 3 | 1.5 | 0.7 | 8.9 | 0.8 | 1.4 | 13.3 | 347 |
| 3 | 2.5 | 0.7 | 9.8 | 0.8 | 1.4 | 14.1 | 403 |
| 3 | 4 | 0.7 | 10.8 | 0.8 | 1.4 | 15.2 | 478 |
| 3 | 6 | 0.7 | 12 | 0.8 | 1.4 | 16.4 | 573 |
| 3 | 10 | 0.7 | 14.1 | 0.8 | 1.5 | 18.7 | 770 |
| 3 | 16 | 0.7 | 16.3 | 1.6 | 1.6 | 22.7 | 1325 |
| 3 | 25 | 0.9 | 19.8 | 1.6 | 1.7 | 26.4 | 1767 |
| 3 | 35 | 0.9 | 22.4 | 1.6 | 1.8 | 29.2 | 2203 |
| 3 | 50 | 1 | 25.9 | 1.6 | 2 | 33.1 | 2840 |
| 3 | 70 | 1.1 | 30.7 | 2 | 2.1 | 38.9 | 4074 |
| 3 | 95 | 1.1 | 33.8 | 2 | 2.3 | 42.4 | 4881 |
| 3 | 120 | 1.2 | 37.9 | 2 | 2.4 | 46.7 | 6580 |
| 3 | 150 | 1.4 | 49.3 | 2.5 | 2.9 | 60.1 | 7800 |
| 3 | 185 | 1.6 | 51.4 | 2.5 | 2.9 | 62.2 | 9100 |
| 3 | 240 | 1.7 | 53.5 | 2.5 | 2.9 | 64.3 | 11160 |
| 3+E | 95 + 50 | 1.1/1.0 | 34.4 | 2 | 1.7 | 42.2 | 5427 |
| 3+E | 120+70 | 1.2/1.1 | 38.4 | 2 | 2 | 46.8 | 6706 |
| 3+E | 150+70 | 1.4/1.1 | 44.6 | 2.5 | 2 | 53.1 | 7765 |
| 3+E | 185 + 70 | 1.6/1.1 | 49.3 | 2.5 | 2.2 | 58.7 | 9659 |
| 3+E | 185 + 95 | 1.6/1.1 | 50.6 | 2.5 | 2.2 | 60.1 | 9924 |
| 3+E | 240 + 120 | 1.7/1.2 | 52.7 | 2.5 | 2.2 | 62.3 | 12440 |
| 4 | 1.5 | 0.7 | 9.7 | 0.8 | 1.4 | 14.1 | 386 |
| 4 | 2.5 | 0.7 | 10.6 | 0.8 | 1.4 | 15 | 457 |
| 4 | 4 | 0.7 | 11.8 | 0.8 | 1.5 | 16.4 | 555 |
| 4 | 6 | 0.7 | 13.2 | 0.8 | 1.5 | 17.8 | 669 |
| 4 | 10 | 0.7 | 15.5 | 0.8 | 1.6 | 20.3 | 914 |
| 4 | 16 | 0.7 | 18 | 1.6 | 1.7 | 24.6 | 1552 |
| 4 | 25 | 0.9 | 22.1 | 1.6 | 1.8 | 28.7 | 2095 |
| 4 | 35 | 0.9 | 24.8 | 1.6 | 1.9 | 31.8 | 2644 |
| 4 | 50 | 1 | 28.8 | 2 | 2.1 | 37 | 3680 |
| 4 | 70 | 1.1 | 34.1 | 2 | 2.2 | 42.5 | 4903 |
| 5G | 1.5 | 0.7 | 10.5 | 0.8 | 1.4 | 14.9 | 427 |
| 5G | 2.5 | 0.7 | 11.6 | 0.8 | 1.5 | 16.2 | 517 |
| 5G | 4 | 0.7 | 12.9 | 0.8 | 1.5 | 17.5 | 626 |
| 5G | 6 | 0.7 | 14.4 | 0.8 | 1.6 | 19.2 | 774 |
| 5G | 10 | 0.7 | 17 | 1.6 | 1.7 | 23.6 | 1373 |
| 5G | 16 | 0.7 | 19.8 | 1.6 | 1.8 | 26.6 | 1796 |
| 5G | 25 | 0.9 | 24.2 | 1.6 | 1.9 | 31.1 | 2444 |
| 5G | 35 | 0.9 | 27.4 | 2 | 2 | 35.4 | 3.338 |
| 5G | 50 | 1 | 31.8 | 2 | 2.2 | 40.2 | 4316 |
| 8G | 1.5 | 0.7 | 12.8 | 0.8 | 1.5 | 17.4 | 565 |
| 16G | 1.5 | 0.7 | 16.5 | 1.6 | 1.6 | 22.9 | 1120 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL DIAMETER OF INNER SHEATH mm | NOMINAL DIAMETER OF WIRE mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 10 | 0.7 | 7.8 | 0.8 | 1.4 | 12.2 | 260 |
| 1 | 16 | 0.7 | 8.9 | 0.8 | 1.4 | 13.3 | 320 |
| 1 | 25 | 0.9 | 10.5 | 0.8 | 1.4 | 14.9 | 430 |
| 1 | 35 | 0.9 | 11.7 | 0.8 | 1.5 | 16.3 | 545 |
| 1 | 50 | 1 | 13.3 | 0.8 | 1.6 | 18.1 | 710 |
| 1 | 70 | 1.1 | 15.5 | 0.8 | 1.6 | 20.3 | 950 |
| 1 | 95 | 1.1 | 17 | 1.6 | 1.7 | 23.6 | 1280 |
| 1 | 120 | 1.2 | 18.8 | 1.6 | 1.7 | 25.4 | 1560 |
| 1 | 150 | 1.4 | 20.8 | 1.6 | 1.8 | 27.6 | 1900 |
| 1 | 185 | 1.6 | 22.8 | 1.6 | 1.9 | 29.8 | 2210 |
| 1 | 240 | 1.7 | 26.3 | 1.6 | 1.9 | 33.3 | 2810 |
| 1 | 300 | 1.8 | 29 | 1.6 | 1.9 | 36 | 3450 |
