RZ1FZ1-K Cable

RZ1FZ1-K Cable Description

The RZ1FZ1-K cable features Class 5 flexible copper, XLPE insulation, and LSZH inner and outer sheaths. It does not release toxic or corrosive gases in the event of a fire, making it suitable for public places and high-fire-risk areas.

Compared to the RZ1MZ1-K, this cable is reinforced with double steel tape (typically marked F), providing better resistance to rodents and stronger impacts. Therefore, it is suitable for locations requiring rodent protection or enhanced mechanical strength.

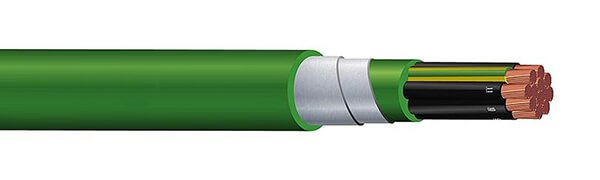

RZ1FZ1-K Cable Construction

Conductor
Copper, class 5 (flexible)
Insulation
XLPE
Armour
Double steel or aluminium tape armour
Beding
Polyolefin LSZH
Outer sheath
Polyolefin LSZH

RZ1FZ1-K Cable Characteristics

Voltage Rating
0.6/1kV
Thermal performance
Maximum conductor temperature: 90ºC
Maximum short-circuittemperature: 250ºC
Minimum service temperature: -40ºC
Minimum bending radius
x10 cable diameter

RZ1FZ1-K Cable Specifications

Cross-section (mm²)	Diameter (mm)	Weight (kg/km)	Open air (A)	Buried (A)	Voltage drop (V/A·km)
1 x 10	14,5	340	74	65	4,23
1 x 16	14,6	375	101	84	2,68
1 x 25	15,3	450	135	107	1,73
1 x 35	16,4	550	169	129	1,23
1 x 50	18,2	710	207	153	0,86
1 x 70	20,0	925	268	188	0,603
1 x 95	21,6	1.145	328	226	0,457
1 x 120	23,5	1.41	383	257	0,357
1 x 150	25,4	1.7	444	287	0,286
1 x 185	27,4	2.02	510	324	0,235
1 x 240	30,5	2.575	607	375	0,178
1 x 300	33,0	3.15	703	419	0,142
1 x 400	37,6	4.15	823	493	0,107
1 x 500	41,9	5.165	946	558	0,084
1 x 630	48,7	6.975	1.088	634	0,063
2 x 1,5	12,3	235	26	27	34,0
2 x 2,5	13,2	275	36	35	20,4
2 x 4	14,3	335	49	46	12,7
2 x 6	15,3	400	63	58	8,45
2 x 10	17,2	535	86	77	4,89
2 x 16	19,0	700	115	100	3,1
2 x 25	21,7	950	149	129	2,0
2 x 35	23,8	1.215	185	155	1,42
3 G 1,5	13,0	265	26	27	34,0
3 G 2,5	13,9	315	36	35	20,4
3 G 4	15,0	380	49	46	12,7
3 G 6	16,1	465	63	58	8,45
3 G 10	18,3	640	86	77	4,89
3 x 16	20,3	855	100	84	2,68
3 x 25	22,5	1.16	127	107	1,73
3 x 35	25,2	1.515	158	129	1,23
3 x 50	29,1	2.06	192	153	0,86
3 x 70	33,6	2.785	246	188	0,603
3 x 95	38,5	3.895	298	226	0,457
3 x 120	42,1	4.795	346	257	0,357
3 x 150	48,7	6.05	399	287	0,286
3 x 185	52,3	7.135	456	324	0,235
3 x 240	61,5	9.45	538	375	0,178
4 G 1,5	13,8	295	23	23	29,5
4 G 2,5	14,7	355	32	30	17,7
4 G 4	16,0	440	42	39	11,0
4 G 6	17,4	550	54	49	7,32
4 G 10	19,7	765	75	65	4,23
4 x 16	22,2	1.039	100	84	2,68
4 x 25	24,3	1.415	127	107	1,73
4 x 35	26,8	1.845	158	129	1,23
4 x 50	32,0	2.575	192	153	0,86
4 x 70	37,6	3.8	246	188	0,603
4 x 95	42,0	4.82	298	226	0,457
4 x 120	47,3	6.055	346	257	0,357
4 x 150	54,2	7.675	399	287	0,286
4 x 185	57,8	8.97	456	324	0,235
4 x 240	67,6	11.87	538	375	0,178
4 x 300	71,4	14.13	621	419	0,142
4 x 500	97,3	25.24	835	558	0,085
5 G 1,5	14,7	335	23	23	29,5
5 G 2,5	15,6	400	32	30	17,7
5 G 4	17,2	510	42	39	11,0
5 G 6	18,7	640	54	49	7,32
5 G 10	21,2	900	75	65	4,23
5 G 16	24,1	1.24	100	84	2,68
5 G 25	26,7	1.715	127	107	1,73
5 G 35	29,9	2.26	158	129	1,23
