RZ1MZ1-K Cable

RZ1MZ1-K cable is widely used within the Oil, Gas & Petrochemical, and Distribution and Power Network industries. Known commonly as a green SWA because of the colour of the outer sheath, it is insulated and sheathed in a halogen free thermoplastic polyolefin material.

RZ1MZ1-K Cable Description

RZ1MZ1-K features bare copper conductors, cross-linked polyethylene (XLPE) insulation and galvanized steel wire armouring to provide protection against mechanical damage and fire, and is suitable for indoor and outdoor installations, including direct burial.

The cable is suitable for low voltage distribution networks, connections and lighting in industrial premises, public areas and facilities with a high risk of fire.

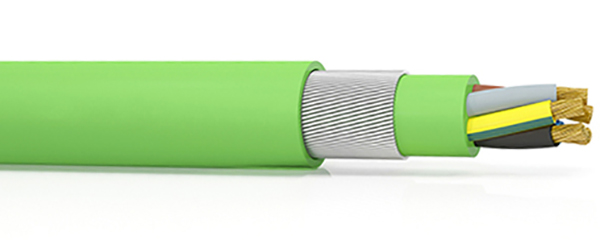

RZ1MZ1-K Cable Construction

Conductor
Class 5 flexible copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding Layer
LSZH (Low Smoke Zero Halogen)
Armour
Galvanized steel wires
Sheath
LSZH (Low Smoke Zero Halogen)

RZ1MZ1-K Cable Characteristics

Voltage Rating Uo/U
0.6/1kV
Temperature Rating
-40ºC to +90ºC

RZ1MZ1-K Cable Specification

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER UNDER ARMOUR mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km	MINIMUM BENDING RADIUS mm
2	1.5	7.6	12.5	290	125
2	2.5	8.4	13.3	335	135
2	4	9.5	14.4	400	145
2	6	10.6	15.5	480	155
2	10	12.5	18.1	720	185
2	16	14.5	20.1	920	205
2	25	17.8	24.2	1370	245
2	35	20	26.4	1680	265
2	50	19.4	26.1	1835	265
2	70	23.2	29.9	2420	300
2	95	25.8	33.6	3175	340
2	120	29.2	37.4	3920	375
2	150	32.4	40.9	4680	410
2	185	35.6	45.4	5900	455
2	240	41.1	51.4	7485	515
3	1.5	8	13	320	130
3	2.5	8.9	13.9	375	140
3	4	10.1	15	450	150
3	6	11.3	16.2	545	165
3	10	13.3	18.9	830	190
3	16	15.5	21.1	1075	215
3	25	19.1	25.6	1640	255
3	35	21.7	28.2	2050	285
3	50	23.3	30.9	2580	310
3	70	27.5	35.2	3365	355
3	95	30.6	38.8	4170	390
3	120	34.4	42.9	5070	430
3	150	38.5	48.3	6530	485
3	185	42.5	52.7	7735	530
3	240	48.7	59.4	9780	595
4	1.5	8.9	14	365	140
4	2.5	9.9	15	435	150
4	4	11.2	16.3	530	165
4	6	12.5	18.3	735	185
4	10	14.8	20.6	990	210
4	16	17.3	23.7	1405	240
4	25	21.3	27.8	1960	280
4	35	24	30.8	2480	310
4	50	25.7	33.4	3175	335
4	70	30.4	38.6	4235	390
4	95	33.9	42.3	5245	425
4	120	38.6	48.4	6900	485
4	150	42.8	53	8295	530
4	185	47.1	57.7	9850	580
4	240	54.2	65.2	12560	655
5	1.5	9.8	14.9	415	150
5	2.5	10.9	16.7	570	170
5	4	12.4	18.2	705	185
5	6	13.9	19.7	850	200
5	10	16.5	22.8	1265	230
5	16	19.2	25.6	1665	260
5	25	23.8	30.6	2340	310
5	35	26.8	33.7	2970	340
5	50	31.3	39.3	4180	395
5	70	37.1	45.6	5580	460
5	95	41.6	51.5	7390	515
