Traffic Signal Cable Description
Traffic signal cables are typically multi-core cables, with solid or stranded bare copper conductors, insulated with polyethylene or polyvinyl chloride, and with a PVC sheath for durability and environmental resistance. These cables can be unarmored or armored (with steel wire armor) for direct burial and protection from damage.
BS 6346 is the British standard for traffic signal cables and AS/NZS 5000.1 is the Australian/New Zealand standard for traffic signal cables. Both cables are of large core configuration, BS6346 cables have a Class 1 solid copper conductor, while AS/NZS 5000.1 traffic cables have a Class 2 stranded copper core.
Traffic Signal Cable Construction
Traffic Signal Cable BS6346 SWA PVC | AS/NZS 5000.1 Traffic Signal Cable Orange 0.6/1kV XLPE SWA PVC Cable | |
---|---|---|
VOLTAGE | 0.6/1kV | |
CONDUCTOR | Class 1 Annealed Copper | Class 2 Circular Stranded or Circular Compacted Copper |
INSULATION | PVC (Polyvinyl Chloride) | XLPE (Cross-Linked Polyethylene) |
BEDDING | Polymeric compound with a tensile strength of not less than 4N/ mm2 and an elongation break of not less than 50% | PVC (Polyvinyl Chloride) |
ARMOUR | Single layer of Galvanised Wires laid in a right direction | SWA (Galvanised Steel Wire) |
OUTER SHEATH | PVC (Polyvinyl Chloride) |
Traffic Signal Cable Characteristics
Traffic Signal Cable BS6346 SWA PVC | AS/NZS 5000.1 Traffic Signal Cable Orange 0.6/1kV XLPE SWA PVC Cable | |
---|---|---|
Voltage Rating Uo/U | 0.6/1kV | |
Temperature Rating | Fixed: -15°C to +70°C Short Circuit Temperature: +160°C | Operating:+90°C Short Circuit Temperature: +250°C |
Minimum Bending Radius | 6 x overall diameter | 12 x overall diameter |

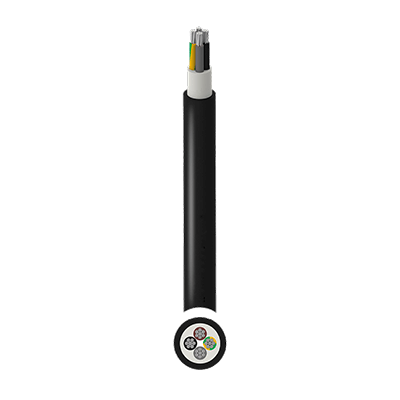

- Traffic Signal Cable BS 6346 SWA PVC

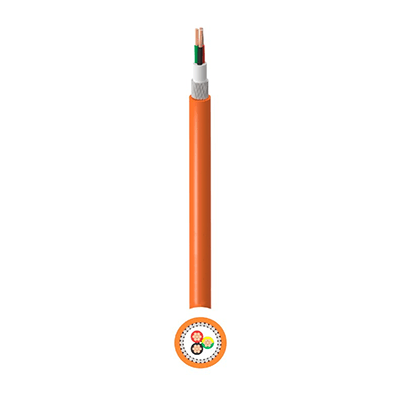

- ASNZS 5000.1 Traffic Signal Cable Orange 0.6-1kV XLPE SWA PVC
NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF BEDDING mm | DIAMETER OF STEEL WIRE mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
---|---|---|---|---|---|---|---|
8 | 1 | 0.6 | 0.8 | 0.9 | 1.4 | 13.2 | 388 |
8 | 1.5 | 0.6 | 0.8 | 0.9 | 1.4 | 13.4 | 451 |
12 | 1 | 0.6 | 0.8 | 1.25 | 1.4 | 16.2 | 615 |
12 | 1.5 | 0.6 | 0.8 | 1.25 | 1.5 | 17.4 | 729 |
16 | 1 | 0.6 | 0.8 | 0.9 | 1.5 | 17.6 | 725 |
16 | 1.5 | 0.6 | 0.8 | 1.25 | 1.6 | 18.9 | 864 |
20 | 1 | 0.6 | 0.8 | 1.25 | 1.6 | 19 | 841 |
20 | 1.5 | 0.6 | 0.8 | 1.25 | 1.6 | 20.2 | 997 |
NO. OF CORES (PHASE + EARTH) | NOMINAL CROSS SECTIONAL AREA mm² | NOMINALTHICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
||
---|---|---|---|---|---|---|---|
Phase Conductor | Earth Conductor | Phase Conductor | Earth Conductor | ||||
3 | 1.5 | - | 0.6 | - | 1.1 | 11.4 | 275 |
3 | 2.5 | - | 0.7 | - | 1.2 | 13.2 | 366 |
3 | 4 | - | 0.7 | - | 1.2 | 14.3 | 447 |
3 | 6 | - | 0.7 | - | 1.2 | 15.6 | 549 |
3 | 10 | - | 0.7 | - | 1.2 | 17.8 | 822 |
3 | 16 | - | 0.7 | - | 1.3 | 20.1 | 1090 |
3 | 25 | - | 0.9 | - | 1.4 | 24.4 | 1670 |
3 | 35 | - | 0.9 | - | 1.4 | 26.8 | 2084 |
3 | 50 | - | 1 | - | 1.6 | 31 | 2775 |
3 | 70 | - | 1.1 | - | 1.7 | 34.9 | 3650 |
3 | 95 | - | 1.1 | - | 1.8 | 39.8 | 4945 |
3 + 1 | 1.5 | 1.5 | 0.7 | 0.7 | 1.8 | 14.5 | 393 |
3 + 1 | 2.5 | 2.5 | 0.7 | 0.7 | 1.8 | 15.6 | 465 |
3 + 1 | 4 | 2.5 | 0.7 | 0.7 | 1.8 | 16.4 | 546 |
3 + 1 | 6 | 2.5 | 0.7 | 0.7 | 1.8 | 17.9 | 733 |
3 + 1 | 10 | 4 | 0.7 | 0.7 | 1.8 | 19.8 | 939 |
3 + 1 | 16 | 6 | 0.7 | 0.7 | 1.8 | 21.9 | 1224 |
3 + 1 | 25 | 6 | 0.9 | 0.7 | 1.8 | 25.7 | 1810 |
3 + 1 | 35 | 10 | 0.9 | 0.7 | 1.8 | 28.1 | 2267 |
3 + 1 | 50 | 16 | 1 | 0.7 | 1.9 | 31.7 | 2884 |
3 + 1 | 70 | 25 | 1.1 | 0.9 | 2.1 | 37.1 | 4119 |
3 + 1 | 95 | 25 | 1.1 | 0.9 | 2.2 | 40.8 | 5137 |
3 + 1 | 120 | 35 | 1.2 | 0.9 | 2.3 | 44.6 | 6225 |
3 + 1 | 150 | 50 | 1.4 | 1 | 2.5 | 51 | 8064 |
3 + 1 | 185 | 70 | 1.6 | 1.1 | 2.6 | 55.5 | 9725 |
3 + 1 | 240 | 95 | 1.7 | 1.1 | 2.8 | 62.4 | 12265 |
3 + 1 | 300 | 120 | 1.8 | 1.2 | 3 | 67.4 | 14742 |
4 + 1 | 1.5 | 1.5 | 0.7 | 0.7 | 1.8 | 15.4 | 441 |
4 + 1 | 2.5 | 2.5 | 0.7 | 0.7 | 1.8 | 16.6 | 529 |
4 + 1 | 4 | 2.5 | 0.7 | 0.7 | 1.8 | 18.3 | 746 |
4 + 1 | 6 | 2.5 | 0.7 | 0.7 | 1.8 | 19.2 | 846 |
4 + 1 | 10 | 4 | 0.7 | 0.7 | 1.8 | 21.4 | 1106 |
4 + 1 | 16 | 6 | 0.7 | 0.7 | 1.8 | 24.5 | 1602 |
4 + 1 | 25 | 6 | 0.9 | 0.7 | 1.8 | 28.2 | 2187 |
4 + 1 | 35 | 10 | 0.9 | 0.7 | 1.9 | 31.1 | 2748 |
4 + 1 | 50 | 16 | 1 | 0.7 | 2 | 35.9 | 3778 |
4 + 1 | 70 | 25 | 1.1 | 0.9 | 2.2 | 41 | 5022 |
4 + 1 | 95 | 25 | 1.1 | 0.9 | 2.3 | 45.4 | 6333 |
4 + 1 | 120 | 35 | 1.2 | 0.9 | 2.5 | 51.2 | 8200 |
4 + 1 | 150 | 50 | 1.4 | 1 | 2.7 | 56.9 | 9942 |
4 + 1 | 185 | 70 | 1.6 | 1.1 | 2.8 | 62.4 | 12079 |
4 + 1 | 240 | 95 | 1.7 | 1.1 | 3 | 69.7 | 15181 |
4 + 1 | 300 | 120 | 1.8 | 1.2 | 3.2 | 75.3 | 18264 |
