R2V and RVFV Description
R2V cables (also called XV or RV cables) are rigid non-armoured power and control cables suitable for all low voltage power installations, such as low voltage industrial connections, urban power grids, building installations, etc. They can be inserted into cable ducts or fixed to pipes and walls. Also can be laid underground and use a mechanical protection layer consisting of plates, tiles or bricks.
RVFV cable (also known as XAV cable) is an armored cable with two additional layers of steel tape armor. It is an enhanced version of R2V cable and can be used outdoors, in direct burial installations, or where additional protection against mechanical stress is required.

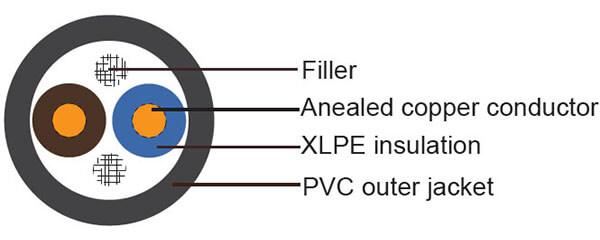

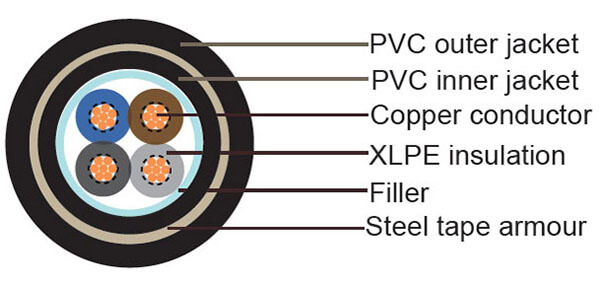

R2V and RVFV Construction
| U-1000 R2V/ XV/ RV Cable | U-1000 RVFV / XAV XLPE PVC 0.6/1kV Cable | |
|---|---|---|
| VOLTAGE | 0.6/1kV | |
| CONDUCTOR | Class 1 Solid or Class 2 Stranded Copper | |
| INSULATION | XLPE (Cross-Linked Polyethylene) | |
| INNER SHEATH | PVC (Polyvinyl Chloride) | |
| ARMOUR | - | Two Steel Tapes |
| OUTER SHEATH | PVC-FR (Polyvinyl Chloride Flame Retardant) | PVC (Polyvinyl Chloride) |

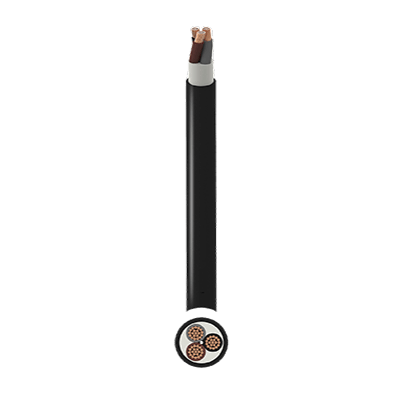

U-1000 R2V Cable
R2V and RVFV Characteristics
| U-1000 R2V/ XV/ RV Cable | U-1000 RVFV / XAV XLPE PVC 0.6/1kV Cable | |
|---|---|---|
| Voltage Rating Uo/U | 0.6/1kV | |
| Temperature Rating | During installation -10°C to +50ºC Fixed installation: -25°C to +90°C | -10°C to +90°C |
| Minimum Bending Radius | 6 x overall diameter | - |

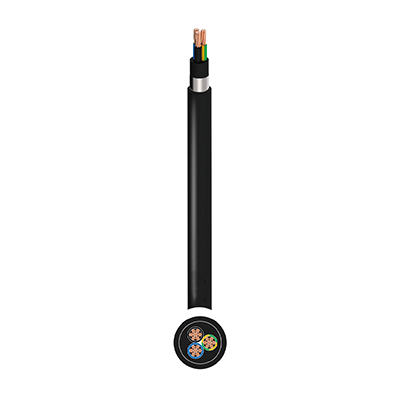

U-1000 RVFV Cable
- U-1000 R2V/ XV/ RV Cable
- U-1000 RVFV / XAV XLPE PVC 0.6/1kV Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 1.5 | 0.7 | 1.1 | 6.6 | 45 |
| 1 | 2.5 | 0.7 | 1.1 | 7 | 55 |
| 1 | 4 | 0.7 | 1.1 | 7.6 | 75 |
| 1 | 6 | 0.7 | 1.1 | 8.2 | 100 |
| 1 | 10 | 0.7 | 1.1 | 9.2 | 140 |
| 1 | 16 | 0.7 | 1.4 | 10.5 | 205 |
| 1 | 25 | 0.9 | 1.4 | 12.5 | 315 |
| 1 | 35 | 0.9 | 1.4 | 13.5 | 400 |
| 1 | 50 | 1 | 1.4 | 15 | 530 |
| 1 | 70 | 1.1 | 1.4 | 17 | 725 |
| 1 | 95 | 1.1 | 1.5 | 19 | 985 |
| 1 | 120 | 1.2 | 1.5 | 21 | 1260 |
| 1 | 150 | 1.4 | 1.6 | 23 | 1520 |
| 1 | 185 | 1.6 | 1.6 | 25.5 | 1940 |
| 1 | 240 | 1.7 | 1.7 | 28.5 | 2310 |
| 1 | 300 | 1.8 | 1.8 | 31 | 3200 |
| 1 | 400 | 2 | 1.9 | 34.2 | 3931 |
| 1 | 500 | 2.2 | 2 | 38 | 5020 |
| 1 | 630 | 2.4 | 2.3 | 44 | 5324 |
| 2 | 1.5 | 0.7 | 1.8 | 10.5 | 115 |
| 2 | 2.5 | 0.7 | 1.8 | 11.5 | 145 |
| 2 | 4 | 0.7 | 1.8 | 13 | 195 |
| 2 | 6 | 0.7 | 1.8 | 14 | 265 |
| 2 | 10 | 0.7 | 1.8 | 16 | 390 |
| 2 | 16 | 0.7 | 1.8 | 18.5 | 560 |
| 2 | 25 | 0.9 | 1.8 | 22 | 850 |
| 2 | 35 | 0.9 | 1.8 | 24.5 | 1080 |
| 3 | 1.5 | 0.7 | 1.8 | 11 | 130 |
| 3 | 2.5 | 0.7 | 1.8 | 12.5 | 170 |
| 3 | 4 | 0.7 | 1.8 | 13.5 | 230 |
| 3 | 6 | 0.7 | 1.8 | 15 | 325 |
| 3 | 10 | 0.7 | 1.8 | 17 | 485 |
| 3 | 16 | 0.7 | 1.8 | 19.5 | 705 |
| 3 | 25 | 0.9 | 1.8 | 23.5 | 1080 |
| 3 | 35 | 0.9 | 1.8 | 26 | 1390 |
| 3 | 50 | 1 | 1.8 | 29 | 1840 |
| 3 | 70 | 1.1 | 1.9 | 34 | 2540 |
| 3 | 95 | 1.1 | 2 | 38.5 | 3430 |
| 3 | 120 | 1.2 | 2.1 | 42.5 | 4440 |
| 3 | 150 | 1.4 | 2.3 | 47.5 | 5380 |
| 3 | 185 | 1.6 | 2.4 | 55 | 6920 |
| 3 | 240 | 1.7 | 2.6 | 59.5 | 8420 |
| 3 | 300 | 1.8 | 2.8 | 66 | 11300 |
| 3+E | 50 + 1 x 35 | 1 | 1.8 | 31.1 | 2160 |
| 3+E | 70 + 1 x 50 | 1.1 | 2 | 36.2 | 3010 |
| 3+E | 95 + 1 x 50 | 1.1 | 2.1 | 40.6 | 3960 |
| 3+E | 120 + 1 x 70 | 1.2 | 2.2 | 45.4 | 5160 |
| 3+E | 150 + 1 x 70 | 1.4 | 2.3 | 49.5 | 6150 |
| 3+E | 185 + 1 x 70 | 1.6 | 2.5 | 54.4 | 7780 |
| 3+E | 240 + 1 x 95 | 1.7 | 2.7 | 61.5 | 9550 |
| 4 | 1.5 | 0.7 | 1.8 | 12 | 150 |
| 4 | 2.5 | 0.7 | 1.8 | 13 | 205 |
| 4 | 4 | 0.7 | 1.8 | 14.5 | 280 |
| 4 | 6 | 0.7 | 1.8 | 16 | 390 |
| 4 | 10 | 0.7 | 1.8 | 18.5 | 590 |
| 4 | 16 | 0.7 | 1.8 | 21 | 870 |
| 4 | 25 | 0.9 | 1.8 | 25.5 | 1365 |
| 4 | 35 | 0.9 | 1.8 | 28.5 | 1760 |
| 4 | 50 | 1 | 1.9 | 32.5 | 2460 |
| 4 | 70 | 1.1 | 2 | 37.5 | 3442 |
| 4 | 95 | 1.1 | 2.1 | 42.5 | 4690 |
| 4 | 120 | 1.2 | 2.3 | 47.5 | 6119 |
| 4 | 150 | 1.4 | 2.4 | 52.5 | 7405 |
| 4 | 185 | 1.6 | 2.6 | 59 | 8820 |
| 4 | 240 | 1.7 | 2.8 | 66.5 | 11865 |
| 4 | 300 | 1.8 | 3 | 75.5 | 14716 |
| 5 | 1.5 | 0.7 | 1.8 | 12.5 | 225 |
| 5 | 2.5 | 0.7 | 1.8 | 13.5 | 290 |
| 5 | 10 | 0.7 | 1.8 | 19 | 775 |
| 5 | 16 | 0.7 | 1.8 | 21.5 | 1135 |
| 5 | 25 | 0.9 | 1.8 | 27 | 1780 |
| 5 | 35 | 0.9 | 1.8 | 34 | 2069 |
| 5 | 50 | 1 | 1.9 | 36 | 2755 |
| 5 | 70 | 1.1 | 2 | 43 | 3925 |
| 5 | 95 | 1.1 | 2.1 | 47 | 5336 |
| 7 | 1.5 | 0.7 | 1.8 | 13.5 | 220 |
| 7 | 2.5 | 0.7 | 1.8 | 15 | 310 |
| 12 | 1.5 | 0.7 | 1.8 | 17 | 370 |
| 12 | 2.5 | 0.7 | 1.8 | 19.5 | 525 |
| 19 | 1.5 | 0.7 | 1.8 | 19.5 | 560 |
| 19 | 2.5 | 0.7 | 1.8 | 22.5 | 745 |
| 24 | 1.5 | 0.7 | 1.8 | 22.5 | 745 |
| 24 | 2.5 | 0.7 | 1.8 | 22.5 | 710 |
| 27 | 1.5 | 0.7 | 1.8 | 23.5 | 1000 |
| 27 | 2.5 | 0.7 | 1.8 | 26 | 1000 |
| 37 | 1.5 | 0.7 | 1.8 | 25.5 | 972 |
| 37 | 2.5 | 0.7 | 1.8 | 29.5 | 1350 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 2 | 1.5 | 13 | 215 |
| 2 | 2.5 | 14 | 249 |
| 2 | 4 | 15.5 | 309 |
| 2 | 6 | 16.5 | 386 |
| 2 | 10 | 18.5 | 515 |
| 2 | 16 | 20.5 | 709 |
| 2 | 25 | 23.5 | 1063 |
| 3 | 2.5 | 14.5 | 274 |
| 3 | 4 | 16 | 352 |
| 3 | 6 | 17.5 | 447 |
| 3 | 10 | 19 | 624 |
| 3 | 16 | 22 | 849 |
| 3 | 25 | 25 | 1273 |
| 3 | 35 | 32.5 | 1644 |
| 3 | 50 | 37.5 | 2107 |
| 3 | 70 | 35 | 2862 |
| 3 | 95 | 40 | 4190 |
| 3 | 120 | 45 | 5176 |
| 3 | 150 | 50 | 6303 |
| 3 | 185 | 54 | 7698 |
| 3 | 240 | 63 | 9814 |
| 3 | 50 | 34.5 | 2560 |
| 3 | 70 | 40 | 3492 |
| 3 | 95 | 45 | 4790 |
| 3 | 120 | 50 | 5951 |
| 3 | 150 | 54 | 7090 |
| 5 | 1.5 | 15.5 | 301 |
| 5 | 2.5 | 17 | 373 |
| 5 | 4 | 18.5 | 480 |
| 5 | 6 | 20.5 | 638 |
| 5 | 10 | 22.5 | 900 |
| 5 | 16 | 26 | 1250 |
| 5 | 25 | 31 | 1903 |
| 5 | 35 | 32 | 2455 |
