FHLR91XC13X and FHLR4GC13X Cable Description
These two cables are differentiated by conductor cross-sectional area and insulation material. The FHLR91XC13X has a conductor cross-sectional area ranging from 2.5 mm² to 6 mm² (inclusive) and uses cross-linked irradiated polyolefin (XLPO); while the FHLR4GC13X has a conductor cross-sectional area ranging from 8 mm² to 150 mm² and uses EVA (ethylene vinyl acetate) as insulation material.
Both cables feature a tinned copper braided shield to reduce EMC interference and a thermoplastic elastomer (TPE-E) jacket with the reference code 13X.

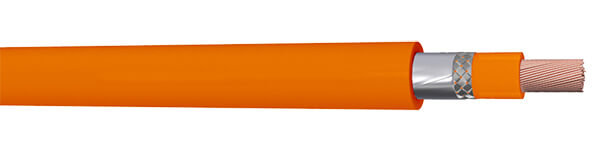

FHLR91XC13X and FHLR4GC13X Cable Construction
- Conductor
- Stranded Copper
- Insulation
- 91X – XLPO (Cross-linked irradiation Polyolefin) 4G – EVA (Ethylene Vinyl Acetate)
- Screen
- TCWB (Tinned Copper Wire Braid)
- Outer Sheath
- 13X – TPE-E (Vulcanised thermoplastic Elastomer)
FHLR91XC13X and FHLR4GC13X Cable Characteristics
- Voltage Rating
- U0 : 1000V AC
- V0 : 1500V DC
- Temperature Range
- (3000h): -40°C to + 150°C
- Minimum Bending Radius
- Fixed: 4x Overall diameter
- Flexing: 6x Overall diameter
FHLR91XC13X and FHLR4GC13X Cable Specifications
| NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR | CABLE | |||||
|---|---|---|---|---|---|---|---|
| NUMBER OF INDIVIDUAL WIRES | NOMINAL DIAMETER OF INDIVIDUAL WIRES mm | NOMINAL DIAMETER mm | NOMINAL DIAMETER OF INSULATION mm | NOMINAL DIAMETER OF SCREEN mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/100m |
|
| FHLR91XC13X | |||||||
| 2.5 | 50 | 0.26 | 2 | 2.85 | 3.3 | 5 | 4.9 |
| 4 | 56 | 0.31 | 2.5 | 3.55 | 4 | 5.8 | 7 |
| 6 | 84 | 0.31 | 3 | 4.15 | 4.7 | 6.6 | 9.8 |
| FHLR4GC13X | |||||||
| 8 | 60 | 0.41 | 3.8 | 5.05 | 5.6 | 7.6 | 12.5 |
| 10 | 78 | 0.41 | 4.3 | 5.75 | 6.3 | 8.4 | 15.8 |
| 12 | 92 | 0.41 | 4.7 | 6.1 | 6.7 | 8.9 | 17.9 |
| 16 | 126 | 0.41 | 5.4 | 6.9 | 7.5 | 9.7 | 23 |
| 20 | 154 | 0.41 | 6.2 | 7.6 | 8.3 | 10.6 | 28.2 |
| 25 | 189 | 0.41 | 6.7 | 8.2 | 8.9 | 11.2 | 32.8 |
| 30 | 224 | 0.41 | 7.4 | 9.1 | 9.8 | 12.1 | 38.5 |
| 35 | 273 | 0.41 | 7.9 | 9.7 | 10.4 | 12.7 | 44.7 |
| 40 | 301 | 0.41 | 8.5 | 10.4 | 11.3 | 13.6 | 51.3 |
| 50 | 385 | 0.41 | 9.4 | 11.5 | 12.6 | 14.9 | 64.2 |
| 60 | 294 | 0.51 | 10.6 | 12.6 | 13.5 | 15.9 | 73.1 |
| 70 | 360 | 0.51 | 11.6 | 13.7 | 14.6 | 17 | 85.8 |
| 95 | 480 | 0.51 | 13.5 | 16.2 | 17.3 | 19.9 | 115.3 |
| 120 | 589 | 0.51 | 15.1 | 18 | 19.1 | 22.6 | 145.5 |
| 150 | 741 | 0.51 | 17 | 20 | 21.3 | 24.9 | 177.4 |
