NA2XS2Y Cable

NA2XS2Y Cable Description

NA2XS2Y cables offer excellent electrical and thermal performance. Their durable, UV-resistant outer jacket allows them to be used for direct burial, outdoor installations, indoor installations, and in cable ducts. They are widely used in the construction and power distribution industries.

NA2XS2Y Cable Construction

	NA2XS2Y Aluminium XLPE PE - 6/10 (12)kV Cable	NA2XS2Y Aluminium XLPE MDPE 8.7/15kV Cable	NA2XS2Y Aluminium XLPE HDPE 8.7/15kV Cable	NA2XS2Y Aluminium XLPE PE - 12/20 (24)kV Cable	NA2XS2Y Aluminium XLPE PE - 18/30 (36)kV Cable
Conductor	Class 2 Stranded Aluminium	Class 2 stranded compacted aluminium		Class 2 Stranded Aluminium
Conductor Screen	Semi-conductive material	Semi-conductive extruded XLPE (Cross-linked Polyethylene)		Semi-conductive material
Insulation	XLPE (Cross-Linked Polyethylene)
Insulation Screen	Semi-conductive material (bonded)	Semi-conductive extruded XLPE (Cross-linked Polyethylene)		Semi-conductive material (bonded)
Screen	Copper wires and copper tape	Copper Wires and Tape		Copper wires and copper tape
Outer Sheath	MDPE (Medium Density Polyethylene)		HDPE (High Density Polyethylene)	MDPE (Medium Density Polyethylene)

NA2XS2Y Cable Characteristics

	NA2XS2Y Aluminium XLPE PE - 6/10 (12)kV Cable	NA2XS2Y Aluminium XLPE PE - 12/20 (24)kV Cable	NA2XS2Y Aluminium XLPE PE - 18/30 (36)kV Cable	NA2XS2Y Aluminium XLPE MDPE 8.7/15kV Cable	NA2XS2Y Aluminium XLPE HDPE 8.7/15kV Cable
Voltage Rating Uo/U	6/10 (12)kV	12/20 (24)kV	18/30 (36)kV	8.7/15 (17.5) kV
Temperature Rating	-20°C to +60°C Permissible Conductor Operating Temperature: +90°C Permissible Short Circuit Temperature up to 5 sec: 250°C			-
Minimum Bending Radius	15 x overall diameter			-

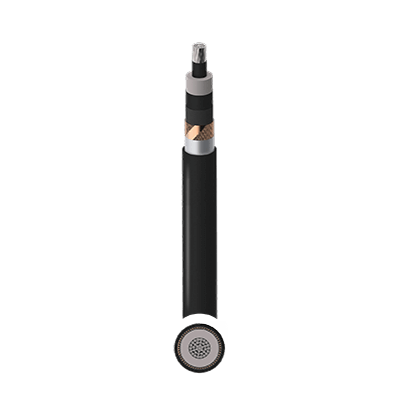

NA2XS2Y Aluminium XLPE PE - 6/10 (12)kV Cable
NA2XS2Y Aluminium XLPE MDPE 8.7/15kV Cable

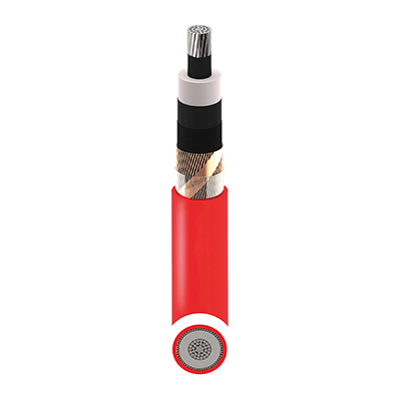

NA2XS2Y Aluminium XLPE HDPE 8.7/15kV Cable

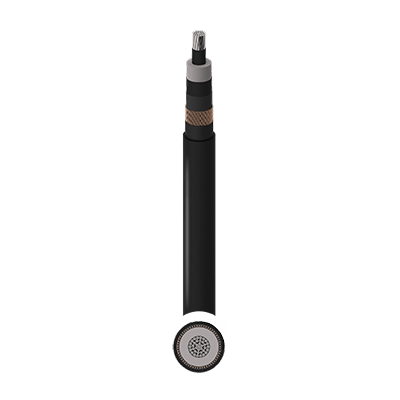

NA2XS2Y Aluminium XLPE PE - 12/20 (24)kV Cable
NA2XS2Y Aluminium XLPE PE - 18/30 (36)kV Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
1	50	16	8.2	7 x 2.90	0.5	0.4	3.4	2.96	16.4
1	70	16	9.7	19 x 2.18	0.5	0.4	3.4	2.96	17.9
1	95	16	11.4	19 x 2.55	0.5	0.4	3.4	2.96	19.6
1	120	16	12.65	19 x 2.90	0.5	0.4	3.4	2.96	20.9
1	150	25	14.4	19 x 3.16	0.5	0.4	3.4	2.96	22.6
1	185	25	15.75	37 x 2.55	0.5	0.4	3.4	2.96	24.4
1	240	25	18.2	37 x 2.90	0.5	0.4	3.4	2.96	26.9
1	300	25	20.5	61 x 2.55	0.5	0.4	3.4	2.96	29.2
1	400	35	23	61 x 2.90	0.5	0.4	3.4	2.96	31.7
1	500	35	26	61 x 3.20	0.5	0.4	3.4	2.96	34.7
1	630	35	30.2	61 x 3.65	0.5	0.4	3.4	2.96	38.9

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	INSULATION mm		METALLIC SCREEN		NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	Nominal thickness	Nominal diameter over	Nominal cross section mm²	Nominal diameter over mm	NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
1	50	8.25	4.5	18.5	16	22.4	27.1	780	1.5	0.41
1	70	9.5	4.5	19.7	25	23.6	28.4	950	2.1	0.43
1	95	11.3	4.5	21.5	35	25.4	30.2	1160	2.85	0.45
1	120	12.5	4.5	22.7	50	26.6	31.4	1400	3.6	0.47
1	150	14.2	4.5	24.4	50	28.3	33.1	1520	4.5	0.50
1	185	15.8	4.5	26.0	50	29.9	34.7	1660	5.55	0.52
1	240	17.9	4.5	28.1	50	32.0	36.8	1870	7.2	0.55
1	300	20.0	4.5	30.2	50	34.1	38.9	2080	9	0.58
1	400	22.9	4.5	33.1	50	37.0	41.8	2390	12	0.63
1	500	25.7	4.5	36.4	50	40.5	45.3	2810	15	0.68
1	630	29.3	4.5	40.3	50	44.4	49.3	3310	18.9	0.74
1	800	33.0	4.5	44.4	50	48.5	53.6	3920	24	0.80
1	1000	38.0	4.5	49.4	50	53.5	59.0	4680	30	0.89

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	INSULATION mm		METALLIC SCREEN		NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	Nominal thickness	Nominal diameter over	Nominal cross section mm²	Nominal diameter over mm	NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
1	50	8.25	4.5	18.5	16	22.4	27.1	780	1.5	0.41
1	70	9.5	4.5	19.7	25	23.6	28.4	950	2.1	0.43
1	95	11.3	4.5	21.5	35	25.4	30.2	1160	2.85	0.45
1	120	12.5	4.5	22.7	50	26.6	31.4	1400	3.6	0.47
1	150	14.2	4.5	24.4	50	28.3	33.1	1520	4.5	0.50
1	185	15.8	4.5	26.0	50	29.9	34.7	1660	5.55	0.52
1	240	17.9	4.5	28.1	50	32.0	36.8	1870	7.2	0.55
1	300	20.0	4.5	30.2	50	34.1	38.9	2080	9	0.58
1	400	22.9	4.5	33.1	50	37.0	41.8	2390	12	0.63
1	500	25.7	4.5	36.4	50	40.5	45.3	2810	15	0.68
1	630	29.3	4.5	40.3	50	44.4	49.3	3310	18.9	0.74
1	800	33.0	4.5	44.4	50	48.5	53.6	3920	24	0.80
1	1000	38.0	4.5	49.4	50	53.5	59.0	4680	30	0.89

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
1	50	16	8.2	7 x 2.90	0.5	0.4	5.5	4.85	20.4
1	70	16	9.7	19 x 2.18	0.5	0.4	5.5	4.85	21.9
1	95	16	11.4	19 x 2.55	0.5	0.4	5.5	4.85	23.6
1	120	16	12.65	19 x 2.90	0.5	0.4	5.5	4.85	24.9
1	150	25	14.4	19 x 3.16	0.5	0.4	5.5	4.85	26.6
1	185	25	15.75	37 x 2.55	0.5	0.4	5.5	4.85	28.4
1	240	25	18.2	37 x 2.90	0.5	0.4	5.5	4.85	30.9
1	300	25	20.5	61 x 2.55	0.5	0.4	5.5	4.85	33.2
1	400	35	23	61 x 2.90	0.5	0.4	5.5	4.85	35.7
1	500	35	26	61 x 3.20	0.5	0.4	5.5	4.85	38.7
1	630	35	30.2	61 x 3.65	0.5	0.4	5.5	4.85	42.9

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
1	50	16	8.2	7 x 2.90	0.5	0.4	8	7.1	25.2
1	70	16	9.7	19 x 2.18	0.5	0.4	8	7.1	26.7
1	95	16	11.4	19 x 2.55	0.5	0.4	8	7.1	28.4
1	120	16	12.65	19 x 2.90	0.5	0.4	8	7.1	29.7
1	150	25	14.4	19 x 3.16	0.5	0.4	8	7.1	31.4
1	185	25	15.75	37 x 2.55	0.5	0.4	8	7.1	33.2
1	240	25	18.2	37 x 2.90	0.5	0.4	8	7.1	35.7
1	300	25	20.5	61 x 2.55	0.5	0.4	8	7.1	38
1	400	35	23	61 x 2.90	0.5	0.4	8	7.1	40.5
1	500	35	26	61 x 3.20	0.5	0.4	8	7.1	43.5
1	630	35	30.2	61 x 3.65	0.5	0.4	8	7.1	47.7
