NA2XS(F)2Y Cable Description
NA2XS(F)2Y cables feature a copper shield and are typically used with contra-helical conductors. The cables are longitudinally waterproofed using expansion tape and/or waterproofing tape, and inner and outer semiconducting layers cover the conductors and insulation to control electrical stresses.
NA2XS(F)2Y cables are suitable for direct burial, ductwork, and indoor and outdoor installations. They are commonly used in power distribution networks, energy supply systems, industrial applications, and power stations.

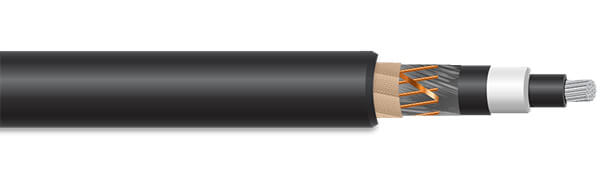

NA2XS(F)2Y Cable Construction
| NA2XS(F)2Y Aluminium XLPE MDPE - 6/10kV Cable | NA2XS(F)2Y Aluminium XLPE MDPE 8.7/15kV Cable | NA2XS(F)2Y Aluminium XLPE HDPE 8.7/15kV Cable | NA2XS(F)2Y Aluminium XLPE MDPE - 12/20 (24)kV Cable | NA2XS(F)2Y Aluminium XLPE MDPE - 18/30 (36)kV Cable | |
|---|---|---|---|---|---|
| Conductor | Class 2 Stranded Aluminium | ||||
| Conductor Screen | Semi-conductive material | Semi-conductive extruded XLPE (Cross-linked Polyethylene) | Semi-conductive material | ||
| Insulation | XLPE (Cross-Linked Polyethylene) | ||||
| Insulation Screen | Semi-conductive material (bonded) | Semi-conductive extruded XLPE (Cross-linked Polyethylene) | Semi-conductive material (bonded) | ||
| Screen | Copper wires and copper tape | Copper Wires and Tape | Copper wires and copper tape | ||
| Outer Sheath | MDPE (Medium Density Polyethylene) | HDPE (High Density Polyethylene) | MDPE (Medium Density Polyethylene) | ||
NA2XS(F)2Y Cable Characteristics
| NA2XS(F)2Y Aluminium XLPE MDPE - 6/10kV Cable | NA2XS(F)2Y Aluminium XLPE MDPE - 12/20 (24)kV Cable | NA2XS(F)2Y Aluminium XLPE MDPE - 18/30 (36)kV Cable | NA2XS(F)2Y Aluminium XLPE MDPE 8.7/15kV Cable | NA2XS(F)2Y Aluminium XLPE HDPE 8.7/15kV Cable | |
|---|---|---|---|---|---|
| Voltage Rating Uo/U | 6/10 (12)kV | 12/20 (24)kV | 18/30 (36)kV | 8.7/15 (17.5) kV | |
| Temperature Rating | -20°C to +60°C Permissible Conductor Operating Temperature: +90°C Permissible Short Circuit Temperature up to 5 sec: 250°C | - | |||
| Minimum Bending Radius | 15 x overall diameter | - | |||
- NA2XS(F)2Y Aluminium XLPE MDPE - 6/10kV Cable
- NA2XS(F)2Y Aluminium XLPE MDPE 8.7/15kV Cable

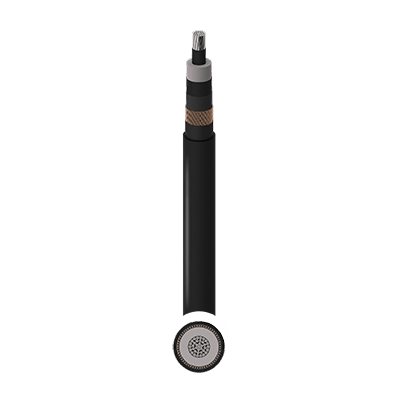

- NA2XS(F)2Y Aluminium XLPE HDPE 8.7/15kV Cable
- NA2XS(F)2Y Aluminium XLPE MDPE - 12/20 (24)kV Cable
- NA2XS(F)2Y Aluminium XLPE MDPE - 18/30 (36)kV Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.2 | 7 x 2.90 | 0.5 | 0.4 | 3.4 | 2.96 | 16.4 |
| 1 | 70 | 16 | 9.7 | 19 x 2.18 | 0.5 | 0.4 | 3.4 | 2.96 | 17.9 |
| 1 | 95 | 16 | 11.4 | 19 x 2.55 | 0.5 | 0.4 | 3.4 | 2.96 | 19.6 |
| 1 | 120 | 16 | 12.65 | 19 x 2.90 | 0.5 | 0.4 | 3.4 | 2.96 | 20.9 |
| 1 | 150 | 25 | 14.4 | 19 x 3.16 | 0.5 | 0.4 | 3.4 | 2.96 | 22.6 |
| 1 | 185 | 25 | 15.75 | 37 x 2.55 | 0.5 | 0.4 | 3.4 | 2.96 | 24.4 |
| 1 | 240 | 25 | 18.2 | 37 x 2.90 | 0.5 | 0.4 | 3.4 | 2.96 | 26.9 |
| 1 | 300 | 25 | 20.5 | 61 x 2.55 | 0.5 | 0.4 | 3.4 | 2.96 | 29.2 |
| 1 | 400 | 35 | 23 | 61 x 2.90 | 0.5 | 0.4 | 3.4 | 2.96 | 31.7 |
| 1 | 500 | 35 | 26 | 61 x 3.20 | 0.5 | 0.4 | 3.4 | 2.96 | 34.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.65 | 0.5 | 0.4 | 3.4 | 2.96 | 38.9 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | INSULATION mm | METALLIC SCREEN | NOMINAL OUTER DIAMETER OF CABLE mm | NOMINAL WEIGHT kg/km | MAXIMUM PULLING FORCE kN | MINIMUM BENDING RADIUS m |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal thickness | Nominal diameter over | Nominal cross section mm² | Nominal diameter over mm |
|||||||
| 1 | 50 | 8.25 | 4.5 | 18.5 | 16 | 22.6 | 28.1 | 720 | 1.5 | 0.42 |
| 1 | 70 | 9.5 | 4.5 | 19.7 | 25 | 23.8 | 29.4 | 890 | 2.1 | 0.44 |
| 1 | 95 | 11.3 | 4.5 | 21.5 | 35 | 25.6 | 31.2 | 1100 | 2.85 | 0.47 |
| 1 | 120 | 12.5 | 4.5 | 22.7 | 50 | 26.8 | 32.4 | 1330 | 3.6 | 0.49 |
| 1 | 150 | 14.2 | 4.5 | 24.4 | 50 | 28.5 | 34.1 | 1440 | 4.5 | 0.51 |
| 1 | 185 | 15.8 | 4.5 | 26 | 50 | 30.1 | 35.7 | 1580 | 5.55 | 0.54 |
| 1 | 240 | 17.9 | 4.5 | 28.1 | 50 | 32.2 | 37.8 | 1780 | 7.2 | 0.57 |
| 1 | 300 | 20 | 4.5 | 30.2 | 50 | 34.3 | 39.9 | 1990 | 9 | 0.6 |
| 1 | 400 | 22.9 | 4.5 | 33.1 | 50 | 37.2 | 42.8 | 2300 | 12 | 0.64 |
| 1 | 500 | 25.7 | 4.5 | 36.4 | 50 | 40.7 | 46.3 | 2710 | 15 | 0.69 |
| 1 | 630 | 29.3 | 4.5 | 40.3 | 50 | 44.6 | 50.3 | 3190 | 18.9 | 0.75 |
| 1 | 800 | 33 | 4.5 | 44.4 | 50 | 48.7 | 54.6 | 3780 | 24 | 0.82 |
| 1 | 1000 | 38 | 4.5 | 49.4 | 50 | 53.7 | 60 | 4510 | 30 | 0.9 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | INSULATION mm | METALLIC SCREEN | NOMINAL OUTER DIAMETER OF CABLE mm | NOMINAL WEIGHT kg/km | MAXIMUM PULLING FORCE kN | MINIMUM BENDING RADIUS m |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal thickness | Nominal diameter over | Nominal cross section mm² | Nominal diameter over mm |
|||||||
| 1 | 50 | 8.25 | 4.5 | 18.5 | 16 | 22.6 | 28.1 | 720 | 1.5 | 0.42 |
| 1 | 70 | 9.5 | 4.5 | 19.7 | 25 | 23.8 | 29.4 | 890 | 2.1 | 0.44 |
| 1 | 95 | 11.3 | 4.5 | 21.5 | 35 | 25.6 | 31.2 | 1100 | 2.85 | 0.47 |
| 1 | 120 | 12.5 | 4.5 | 22.7 | 50 | 26.8 | 32.4 | 1330 | 3.6 | 0.49 |
| 1 | 150 | 14.2 | 4.5 | 24.4 | 50 | 28.5 | 34.1 | 1440 | 4.5 | 0.51 |
| 1 | 185 | 15.8 | 4.5 | 26 | 50 | 30.1 | 35.7 | 1580 | 5.55 | 0.54 |
| 1 | 240 | 17.9 | 4.5 | 28.1 | 50 | 32.2 | 37.8 | 1780 | 7.2 | 0.57 |
| 1 | 300 | 20 | 4.5 | 30.2 | 50 | 34.3 | 39.9 | 1990 | 9 | 0.6 |
| 1 | 400 | 22.9 | 4.5 | 33.1 | 50 | 37.2 | 42.8 | 2300 | 12 | 0.64 |
| 1 | 500 | 25.7 | 4.5 | 36.4 | 50 | 40.7 | 46.3 | 2710 | 15 | 0.69 |
| 1 | 630 | 29.3 | 4.5 | 40.3 | 50 | 44.6 | 50.3 | 3190 | 18.9 | 0.75 |
| 1 | 800 | 33 | 4.5 | 44.4 | 50 | 48.7 | 54.6 | 3780 | 24 | 0.82 |
| 1 | 1000 | 38 | 4.5 | 49.4 | 50 | 53.7 | 60 | 4510 | 30 | 0.9 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.2 | 7 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 20.4 |
| 1 | 70 | 16 | 9.7 | 19 x 2.18 | 0.5 | 0.4 | 5.5 | 4.85 | 21.9 |
| 1 | 95 | 16 | 11.4 | 19 x 2.55 | 0.5 | 0.4 | 5.5 | 4.85 | 23.6 |
| 1 | 120 | 16 | 12.65 | 19 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 24.9 |
| 1 | 150 | 25 | 14.4 | 19 x 3.16 | 0.5 | 0.4 | 5.5 | 4.85 | 26.6 |
| 1 | 185 | 25 | 15.75 | 37 x 2.55 | 0.5 | 0.4 | 5.5 | 4.85 | 28.4 |
| 1 | 240 | 25 | 18.2 | 37 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 30.9 |
| 1 | 300 | 25 | 20.5 | 61 x 2.55 | 0.5 | 0.4 | 5.5 | 4.85 | 33.2 |
| 1 | 400 | 35 | 23 | 61 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 35.7 |
| 1 | 500 | 35 | 26 | 61 x 3.20 | 0.5 | 0.4 | 5.5 | 4.85 | 38.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.65 | 0.5 | 0.4 | 5.5 | 4.85 | 42.9 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.2 | 7 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 25.2 |
| 1 | 70 | 16 | 9.7 | 19 x 2.18 | 0.5 | 0.4 | 8 | 7.1 | 26.7 |
| 1 | 95 | 16 | 11.4 | 19 x 2.55 | 0.5 | 0.4 | 8 | 7.1 | 28.4 |
| 1 | 120 | 16 | 12.65 | 19 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 29.7 |
| 1 | 150 | 25 | 14.4 | 19 x 3.16 | 0.5 | 0.4 | 8 | 7.1 | 31.4 |
| 1 | 185 | 25 | 15.75 | 37 x 2.55 | 0.5 | 0.4 | 8 | 7.1 | 33.2 |
| 1 | 240 | 25 | 18.2 | 37 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 35.7 |
| 1 | 300 | 25 | 20.5 | 61 x 2.55 | 0.5 | 0.4 | 8 | 7.1 | 38 |
| 1 | 400 | 35 | 23 | 61 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 40.5 |
| 1 | 500 | 35 | 26 | 61 x 3.20 | 0.5 | 0.4 | 8 | 7.1 | 43.5 |
| 1 | 630 | 35 | 30.2 | 61 x 3.65 | 0.5 | 0.4 | 8 | 7.1 | 47.7 |
