NA2XS(FL)2Y Cable Description
NA2XS(FL)2Y cable shield incorporates a conductive, water-swellable wrapping tape, providing longitudinal waterproofing. The aluminum foil tape, tightly bonded to the PE sheath, provides radial waterproofing, which is crucial for underground and wet installations.
NA2XS(FL)2Y cables offer robust waterproofing and mechanical durability, making them suitable for underground, outdoor, and indoor installations in power distribution networks, data centers, and other demanding applications.

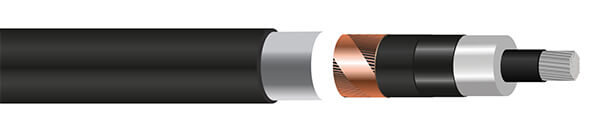

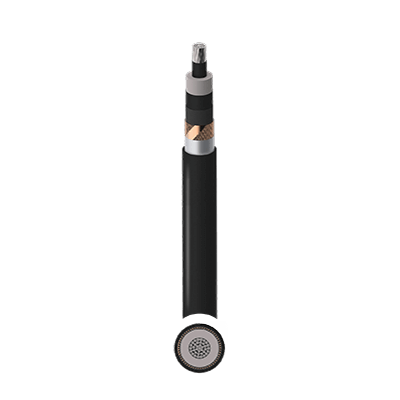

NA2XS(FL)2Y Cable Construction
| NA2XS(FL)2Y Aluminium XLPE PE - 6/10 (12)kV Cable | NA2XS(FL)2Y Aluminium XLPE MDPE 8.7/15kV Cable | NA2XS(FL)2Y Aluminium XLPE HDPE 8.7/15kV Cable | NA2XS(FL)2Y Aluminium XLPE PE - 12/20 (24)kV Cable | NA2XS(FL)2Y Aluminium XLPE PE - 18/30 (36)kV Cable | |
|---|---|---|---|---|---|
| Conductor | Class 2 Stranded Aluminium | ||||
| Conductor Screen | Semi-conductive material | Semi-conductive extruded XLPE (Cross-linked Polyethylene) | Semi-conductive material | ||
| Insulation | XLPE (Cross-Linked Polyethylene) | ||||
| Insulation Screen | Semi-conductive material (bonded) | Semi-conductive extruded XLPE (Cross-linked Polyethylene) | Semi-conductive material (bonded) | ||
| Screen | Copper wires and copper tape | Copper Wires and Tape | Copper wires and copper tape | ||
| Outer Sheath | MDPE (Medium Density Polyethylene) | HDPE (High Density Polyethylene) | MDPE (Medium Density Polyethylene) | ||
NA2XS(FL)2Y Cable Characteristics
| NA2XS(FL)2Y Aluminium XLPE PE - 6/10 (12)kV Cable | NA2XS(FL)2Y Aluminium XLPE PE - 12/20 (24)kV Cable | NA2XS(FL)2Y Aluminium XLPE PE - 18/30 (36)kV Cable | NA2XS(FL)2Y Aluminium XLPE MDPE 8.7/15kV Cable | NA2XS(FL)2Y Aluminium XLPE HDPE 8.7/15kV Cable | |
|---|---|---|---|---|---|
| Voltage Rating Uo/U | 6/10 (12)kV | 12/20 (24)kV | 18/30 (36)kV | 8.7/15 (17.5) kV | |
| Temperature Rating | -20°C to +60°C Permissible Conductor Operating Temperature: +90°C Permissible Short Circuit Temperature up to 5 sec: 250°C | - | |||
| Minimum Bending Radius | 15 x overall diameter | - | |||
- NA2XS(FL)2Y Aluminium XLPE PE - 6/10 (12)kV Cable
- NA2XS(FL)2Y Aluminium XLPE MDPE 8.7/15kV Cable
- NA2XS(FL)2Y Aluminium XLPE HDPE 8.7/15kV Cable
- NA2XS(FL)2Y Aluminium XLPE PE - 12/20 (24)kV Cable
- NA2XS(FL)2Y Aluminium XLPE PE - 18/30 (36)kV Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.2 | 7 x 2.90 | 0.5 | 0.4 | 3.4 | 2.96 | 16.4 |
| 1 | 70 | 16 | 9.7 | 19 x 2.18 | 0.5 | 0.4 | 3.4 | 2.96 | 17.9 |
| 1 | 95 | 16 | 11.4 | 19 x 2.55 | 0.5 | 0.4 | 3.4 | 2.96 | 19.6 |
| 1 | 120 | 16 | 12.65 | 19 x 2.90 | 0.5 | 0.4 | 3.4 | 2.96 | 20.9 |
| 1 | 150 | 25 | 14.4 | 19 x 3.16 | 0.5 | 0.4 | 3.4 | 2.96 | 22.6 |
| 1 | 185 | 25 | 15.75 | 37 x 2.55 | 0.5 | 0.4 | 3.4 | 2.96 | 24.4 |
| 1 | 240 | 25 | 18.2 | 37 x 2.90 | 0.5 | 0.4 | 3.4 | 2.96 | 26.9 |
| 1 | 300 | 25 | 20.5 | 61 x 2.55 | 0.5 | 0.4 | 3.4 | 2.96 | 29.2 |
| 1 | 400 | 35 | 23 | 61 x 2.90 | 0.5 | 0.4 | 3.4 | 2.96 | 31.7 |
| 1 | 500 | 35 | 26 | 61 x 3.20 | 0.5 | 0.4 | 3.4 | 2.96 | 34.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.65 | 0.5 | 0.4 | 3.4 | 2.96 | 38.9 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | INSULATION mm | METALLIC SCREEN | NOMINAL OUTER DIAMETER OF CABLE mm | NOMINAL WEIGHT kg/km | MAXIMUM PULLING FORCE kN | MINIMUM BENDING RADIUS m |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal thickness | Nominal diameter over | Nominal cross section mm² | Nominal diameter over mm |
|||||||
| 1 | 50 | 8.25 | 4.5 | 18.5 | 16 | 22.5 | 28.6 | 780 | 1.5 | 0.60 |
| 1 | 70 | 9.50 | 4.5 | 19.7 | 25 | 23.8 | 29.8 | 950 | 2.1 | 0.63 |
| 1 | 95 | 11.3 | 4.5 | 21.5 | 35 | 25.6 | 31.6 | 1160 | 2.85 | 0.68 |
| 1 | 120 | 12.5 | 4.5 | 22.7 | 50 | 26.8 | 32.8 | 1400 | 3.6 | 0.71 |
| 1 | 150 | 14.2 | 4.5 | 24.4 | 50 | 28.5 | 34.5 | 1520 | 4.5 | 0.75 |
| 1 | 185 | 15.8 | 4.5 | 26.0 | 50 | 30.1 | 36.1 | 1660 | 5.55 | 0.79 |
| 1 | 240 | 17.9 | 4.5 | 28.1 | 50 | 32.2 | 38.2 | 1860 | 7.2 | 0.84 |
| 1 | 300 | 20.0 | 4.5 | 30.2 | 50 | 34.3 | 40.3 | 2080 | 9 | 0.89 |
| 1 | 400 | 22.9 | 4.5 | 33.1 | 50 | 37.2 | 43.2 | 2380 | 12 | 0.97 |
| 1 | 500 | 25.7 | 4.5 | 36.4 | 50 | 40.7 | 46.7 | 2800 | 15 | 1.05 |
| 1 | 630 | 29.3 | 4.5 | 40.3 | 50 | 44.5 | 50.8 | 3290 | 18.9 | 1.15 |
| 1 | 800 | 33.0 | 4.5 | 44.4 | 50 | 48.6 | 55.3 | 3910 | 24 | 1.25 |
| 1 | 1000 | 38.0 | 4.5 | 49.4 | 50 | 53.6 | 60.5 | 4630 | 30 | 1.38 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | INSULATION mm | METALLIC SCREEN | NOMINAL OUTER DIAMETER OF CABLE mm | NOMINAL WEIGHT kg/km | MAXIMUM PULLING FORCE kN | MINIMUM BENDING RADIUS m |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal thickness | Nominal diameter over | Nominal cross section mm² | Nominal diameter over mm |
|||||||
| 1 | 50 | 8.25 | 4.5 | 18.5 | 16 | 22.5 | 28.6 | 780 | 1.5 | 0.60 |
| 1 | 70 | 9.50 | 4.5 | 19.7 | 25 | 23.8 | 29.8 | 950 | 2.1 | 0.63 |
| 1 | 95 | 11.3 | 4.5 | 21.5 | 35 | 25.6 | 31.6 | 1160 | 2.85 | 0.68 |
| 1 | 120 | 12.5 | 4.5 | 22.7 | 50 | 26.8 | 32.8 | 1400 | 3.6 | 0.71 |
| 1 | 150 | 14.2 | 4.5 | 24.4 | 50 | 28.5 | 34.5 | 1520 | 4.5 | 0.75 |
| 1 | 185 | 15.8 | 4.5 | 26.0 | 50 | 30.1 | 36.1 | 1660 | 5.55 | 0.79 |
| 1 | 240 | 17.9 | 4.5 | 28.1 | 50 | 32.2 | 38.2 | 1860 | 7.2 | 0.84 |
| 1 | 300 | 20.0 | 4.5 | 30.2 | 50 | 34.3 | 40.3 | 2080 | 9 | 0.89 |
| 1 | 400 | 22.9 | 4.5 | 33.1 | 50 | 37.2 | 43.2 | 2380 | 12 | 0.97 |
| 1 | 500 | 25.7 | 4.5 | 36.4 | 50 | 40.7 | 46.7 | 2800 | 15 | 1.05 |
| 1 | 630 | 29.3 | 4.5 | 40.3 | 50 | 44.5 | 50.8 | 3290 | 18.9 | 1.15 |
| 1 | 800 | 33.0 | 4.5 | 44.4 | 50 | 48.6 | 55.3 | 3910 | 24 | 1.25 |
| 1 | 1000 | 38.0 | 4.5 | 49.4 | 50 | 53.6 | 60.5 | 4630 | 30 | 1.38 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.2 | 7 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 20.4 |
| 1 | 70 | 16 | 9.7 | 19 x 2.18 | 0.5 | 0.4 | 5.5 | 4.85 | 21.9 |
| 1 | 95 | 16 | 11.4 | 19 x 2.55 | 0.5 | 0.4 | 5.5 | 4.85 | 23.6 |
| 1 | 120 | 16 | 12.65 | 19 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 24.9 |
| 1 | 150 | 25 | 14.4 | 19 x 3.16 | 0.5 | 0.4 | 5.5 | 4.85 | 26.6 |
| 1 | 185 | 25 | 15.75 | 37 x 2.55 | 0.5 | 0.4 | 5.5 | 4.85 | 28.4 |
| 1 | 240 | 25 | 18.2 | 37 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 30.9 |
| 1 | 300 | 25 | 20.5 | 61 x 2.55 | 0.5 | 0.4 | 5.5 | 4.85 | 33.2 |
| 1 | 400 | 35 | 23 | 61 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 35.7 |
| 1 | 500 | 35 | 26 | 61 x 3.20 | 0.5 | 0.4 | 5.5 | 4.85 | 38.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.65 | 0.5 | 0.4 | 5.5 | 4.85 | 42.9 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.2 | 7 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 25.2 |
| 1 | 70 | 16 | 9.7 | 19 x 2.18 | 0.5 | 0.4 | 8 | 7.1 | 26.7 |
| 1 | 95 | 16 | 11.4 | 19 x 2.55 | 0.5 | 0.4 | 8 | 7.1 | 28.4 |
| 1 | 120 | 16 | 12.65 | 19 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 29.7 |
| 1 | 150 | 25 | 14.4 | 19 x 3.16 | 0.5 | 0.4 | 8 | 7.1 | 31.4 |
| 1 | 185 | 25 | 15.75 | 37 x 2.55 | 0.5 | 0.4 | 8 | 7.1 | 33.2 |
| 1 | 240 | 25 | 18.2 | 37 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 35.7 |
| 1 | 300 | 25 | 20.5 | 61 x 2.55 | 0.5 | 0.4 | 8 | 7.1 | 38 |
| 1 | 400 | 35 | 23 | 61 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 40.5 |
| 1 | 500 | 35 | 26 | 61 x 3.20 | 0.5 | 0.4 | 8 | 7.1 | 43.5 |
| 1 | 630 | 35 | 30.2 | 61 x 3.65 | 0.5 | 0.4 | 8 | 7.1 | 47.7 |
