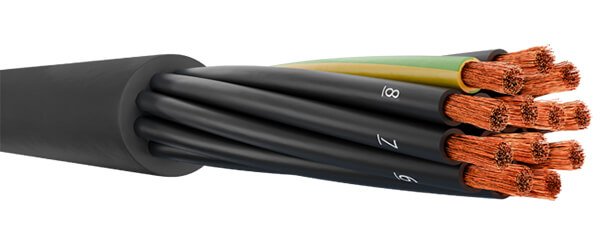

ES05VV-F Cable Description
ES05VV-F cable features Category 5 annealed copper conductors, PVC insulation and an outer sheath, offering chemical resistance, oil resistance, and flame retardancy. It performs well in both dry and humid environments and is suitable for moderate mechanical stress. It is commonly used to connect mechanical components, including machine tools, in manufacturing.
ES05VV-F Cable Construction
- Conductor
- Copper, class 5 (flexible)
- Insulation
- PVC (Polyvinyl Chloride)
- Outer sheath
- PVC (Polyvinyl Chloride)
ES05VV-F Cable Characteristics
- Voltage Rating
- 300/500V
- Thermal performance
- Maximum service temperature: 70ºC
- Maximum short-circuittemperature: 160ºC (max. 5 s)
- Minimum service temperature: -30º (fixed installation)
- Minimum bending radius
- x5 cable diameter
ES05VV-F Cable Specifications
| Cross-section (mm²) | Diameter (mm) | Weight (kg/km) | Open air (A) | Voltage drop (V/A·km) |
|---|---|---|---|---|
| 6 x 1 | 7,9 | 110 | 10 | 46,6 |
| 7 x 1 | 7,9 | 115 | 10 | 46,6 |
| 8 x 1 | 8,6 | 135 | 10 | 46,6 |
| 10 x 1 | 9,7 | 165 | 10 | 46,6 |
| 12 x 1 | 10,3 | 190 | 10 | 46,6 |
| 14 x 1 | 10,7 | 215 | 10 | 46,6 |
| 16 x 1 | 11,4 | 245 | 10 | 46,6 |
| 19 x 1 | 12,1 | 280 | 10 | 46,6 |
| 24 x 1 | 13,7 | 345 | 10 | 46,6 |
| 27 x 1 | 14,4 | 380 | 10 | 46,6 |
| 30 x 1 | 14,7 | 410 | 10 | 46,6 |
| 33 x 1 | 15,7 | 460 | 10 | 46,6 |
| 37 x 1 | 17,2 | 535 | 10 | 46,6 |
| 44 x 1 | 18,9 | 635 | 10 | 46,6 |
| 52 x 1 | 20,1 | 740 | 10 | 46,6 |
| 61 x 1 | 21,7 | 870 | 10 | 46,6 |
