FG7OHH2R Cable

FG7OHH2R Cable Description

The FG7OHH2R cable utilizes a combination of aluminum/PET tape and a braided layer of bare copper wire, providing excellent protection against EMI. It is commonly used in the automotive, air conditioning, chemical, and food industries. This cable is suitable for dry, humid, and shaded environments and can be installed in fixed locations, including direct burial or outdoor use.

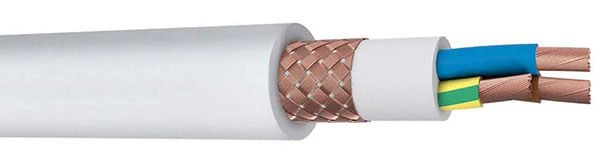

FG7OHH2R Cable Construction

Conductor
Class 5 stranded plain copper wires
Insulation
High-quality G7 quality HEPR (Hard Ethylene Propylene Rubber)
Inner Covering
Separating foil or PVC compound (PVC compound for 25 mm2
and above multi-core cables)
Screen 1
Al-Pes Tape (%100 covered)
Screen 2
Bare copper wire braiding
Outer Sheath
Flame retardant PVC compound, Rz type

FG7OHH2R Cable Characteristics

Voltage Rating
0,6/1 kV
Operating Tempetature
In Flexing Use: 0°C to +90°C
In Fixed Use: -15°C to +90°C
Conductor Short-Circuit Temp
250°C (Max. 5 sec.)

FG7OHH2R Cable Specifications

Cross (*) Section (mm²)	Nominal Overall Diameter (mm)	Approximate Weight (kg / km)	Min.Bending Radius (fixed installation) (mm)	Max. Resistance of Conductors at 200C (ohm / km)
3x1,5/1,5	10,60	146	85	13,30
3x2,5/2,5	11,60	191	93	7,98
3x4/4	12,80	265	102	4,95
3x6/6	14,70	356	118	3,30
3x10/10	17,30	545	138	1,91
3x16/16	19,50	780	156	1,21
3x25/16	25,80	1385	206	0,78
3x35/16	27,70	1671	222	0,554
3x50/25	32,00	2350	256	0,386
3x70/35	37,60	3355	301	0,272
3x95/50	41,40	4310	331	0,206
3x120/70	46,60	5530	373	0,161
3x150/95	51,10	6946	409	0,129
3x185/95	56,80	8275	454	0,106
3x240/120	63,90	10755	511	0,0801
(*) Copper braid shild screen cross section is equal to phase conductor for phase cross sections ≤16mm² or equal to almost half of the phase conductor for phase cross sections ≥ 25mm²
