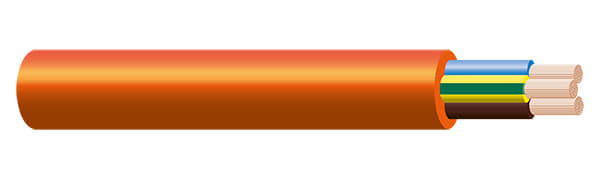

H05BQ-F and H07BQ-F Cable Description
The H05BQ-F cable is rated for 300/500V and offers multi-core conductors with a maximum cross-sectional area of 1mm²; the H07BQ cable has a higher rated voltage of 450/750V and offers cross-sectional areas up to 16mm².
Its polyurethane (PUR) outer sheath resists moderate mechanical stress, tearing, and abrasion, and is resistant to oil, humid environments, and UV radiation. Due to its structural characteristics, it is also suitable for cold storage and heating equipment, provided there is no risk of contact with high-temperature components.
H05BQ-F and H07BQ-F Cable Construction
- Conductor
- Class 5 Flexible Copper
- Insulation
- Cross-linked EPR (Ethylene Propylene Rubber)
- Outer Sheath
- PUR (Polyurethane)
H05BQ-F and H07BQ-F Cable Characteristics
- Voltage Rating Uo/U
- 300/500V
- 450/750V
- Temperature Rating
- Operating: -40ºC to +90ºC
- Maximum Short Circuit Temperature: 250ºC (Max. 5 seconds)
- Minimum Bending Radius
- 5 x overall diameter
- H05BQ-F Cable
- H07BQ-F Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm |
|---|---|---|
| 2 | 0.5 | 6 |
| 2 | 0.75 | 6.4 |
| 2 | 1 | 7.2 |
| 3 | 0.5 | 6.4 |
| 3 | 0.75 | 7 |
| 3 | 1 | 7.6 |
| 4 | 0.5 | 7 |
| 4 | 0.75 | 7.6 |
| 5 | 0.5 | 7.7 |
| 5 | 0.75 | 8.5 |
| 5 | 1 | 9 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 2 | 1 | 0.8 | 0.9 | 7.6 | 64 |
| 2 | 1.5 | 0.8 | 1 | 8.4 | 82 |
| 2 | 2.5 | 0.9 | 1.1 | 9.8 | 134 |
| 2 | 4 | 1 | 1.2 | 11.4 | 168 |
| 3 | 1 | 0.8 | 1 | 8.3 | 79 |
| 3 | 1.5 | 0.8 | 1 | 8.9 | 97 |
| 3 | 2.5 | 0.9 | 1.1 | 10.4 | 166 |
| 3 | 4 | 1 | 1.3 | 12.3 | 210 |
| 3 | 6 | 1 | 1.4 | 13.7 | 281 |
| 3 | 10 | 1.2 | 2.1 | 18.1 | 490 |
| 4 | 1 | 0.8 | 1 | 9 | 94 |
| 4 | 1.5 | 0.8 | 1.1 | 9.9 | 121 |
| 4 | 2.5 | 0.9 | 1.2 | 11.6 | 210 |
| 4 | 4 | 1 | 1.4 | 13.7 | 262 |
| 4 | 6 | 1 | 1.5 | 15.2 | 351 |
| 4 | 10 | 1.2 | 2.2 | 19.9 | 607 |
| 5 | 1 | 0.8 | 1.1 | 10 | 113 |
| 5 | 1.5 | 0.8 | 1.2 | 11 | 146 |
| 5 | 2.5 | 0.9 | 1.3 | 12.9 | 256 |
| 5 | 4 | 1 | 1.5 | 15.2 | 318 |
| 5 | 6 | 1 | 1.6 | 16.8 | 424 |
| 5 | 10 | 1.2 | 2.3 | 23.9 | 855 |
| 5 | 16 | 1.2 | 2.6 | 27.5 | 1208 |
