HSLHCH Cable

HSLHCH Cable Description

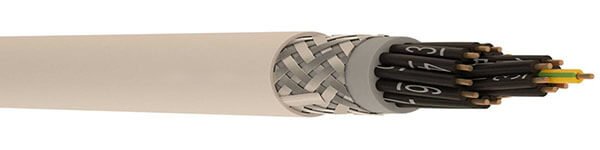

HSLHCH cables feature annealed copper conductors, low-smoke zero-halogen (LSZH) insulation and sheathing (both inner and outer), and a tinned copper braided shield. They are suitable for fixed installations or flexible applications that do not involve high tensile loads or forced continuous bending.

These cables are ideal for use in confined, poorly ventilated, or densely populated public areas. Common applications include manufacturing machinery, production and assembly lines, conveyor systems, power plants, and electronic control units.

HSLHCH Cable Construction

Conductor
Class 5 flexible plain copper wires
Insulation
LSZH (Low Smoke Zero Halogen)
Bedding
LSZH (Low Smoke Zero Halogen)
Screen
TCWB (Tinned Copper Wires Braid)
Outer Sheath
LSZH (Low Smoke Zero Halogen)

HSLHCH Cable Characteristics

Voltage Rating
300/500V
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -15°C to +70°C
Minimum Bending Radius
Fixed: 6 x overall diameter
Moved: 15 x overall diamete

HSLHCH Cable Specification

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL THICKNESS OF INSULATION mm	NOMINAL OUTER SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km	HUMMEL EMC EARTHING GLAND SIZE
2	0.5	0.4	0.8	6.8	77	16
2	0.75	0.4	0.8	7.2	77	16
2	1	0.4	0.9	7.8	107	16
2	1.5	0.4	0.9	8.4	127	20
3	0.5	0.4	0.8	7.1	89	16
3	0.75	0.4	0.9	7.7	106	16
3	1	0.4	0.9	8.1	120	16
3	1.5	0.4	1	9	152	20
3	2.5	0.5	1.1	11.1	243	25
4	0.5	0.4	0.9	7.7	105	16
4	0.75	0.4	0.9	8.2	123	16
4	1	0.4	0.9	8.7	142	20
4	1.5	0.4	1	9.6	178	20
4	2.5	0.5	1.1	11.3	254	25
4	4	0.6	1.3	13.6	371	32
4	6	0.65	1.4	15.2	489	32
4	10	0.75	1.7	19.2	766	32
4	16	0.75	1.8	21.5	1062	40
4	25	0.9	2.2	26.6	1577	40
4	35	0.95	2.4	30.4	2096	50
5	0.5	0.4	0.9	8.2	117	20
5	0.75	0.4	0.9	8.7	138	20
5	1	0.4	1	9.5	166	20
5	1.5	0.4	1.1	10.5	208	20
5	2.5	0.5	1.2	12.5	302	25
5	4	0.6	1.3	14.9	463	32
5	6	0.65	1.4	17.3	616	32
5	10	0.75	1.8	21.2	946	40
5	16	0.75	2	23.9	1315	40
7	0.5	0.4	0.9	8.7	138	20
7	0.75	0.4	1	9.5	167	20
7	1	0.4	1	10.1	198	20
7	1.5	0.4	1.1	11.2	251	25
7	2.5	0.5	1.3	13.6	379	32
7	4	0.6	1.4	16.2	588	32
7	6	0.65	1.6	18.8	792	32
12	0.5	0.4	1.1	11.1	213	25
12	0.75	0.4	1.2	12.3	272	25
12	1	0.4	1.2	13.1	316	32
12	1.5	0.4	1.4	14.8	414	32
18	0.75	0.4	1.3	14.1	367	32
18	1	0.4	1.4	15.3	441	32
18	1.5	0.4	1.5	17	569	32
25	0.75	0.4	1.5	16.7	569	32
25	1	0.4	1.6	18.3	611	32
25	1.5	0.4	1.8	20.8	818	40
