LiHCH Cable

LiHCH cable is a halogen-free, shielded, flexible control cable commonly used in industrial automation and data transmission applications requiring electromagnetic compatibility and low smoke and halogen emission.

LiHCH Cable Description

LiHCH cables are made of materials that do not contain halogens (such as chlorine or bromine), which minimizes the release of toxic and corrosive gases in the event of a fire. Tinned copper braided shielding is used to effectively reduce electromagnetic interference (EMI) and ensure stable signal transmission. Suitable for connecting electronic equipment, control systems, and instrumentation in a variety of environments.

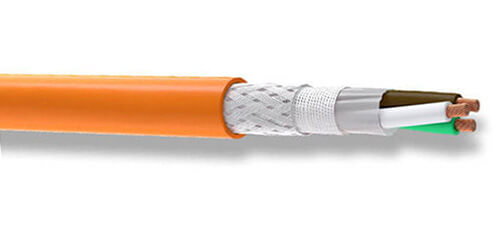

LiHCH Cable Construction

Voltage
250V
Conductor
Class 5 Flexible Stranded Copper
Insulation
FRNC (Flame Retardant Non-Corrosive)
Screen
TCWB (Tinned Copper Wire Braid)
Outer Sheath
FRNC Compound (Flame Retardant Non-Corrosive)

LiHCH Cable Characteristics

Voltage Rating
250V
Temperature Rating
Fixed: -30ºC to +70ºC
Minimum Bending Radius
Fixed: 7.5 x overall diameter
Fixed: 15 x overall diameter

LiHCH Cable Applications

LiHCH cables are used in areas such as computer systems, process control units, measurement and control equipment, and other applications where low smoke, halogen-free and electromagnetically compatible cables are required.

LiHCH Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	0.14	4.1	22
2	0.25	4.7	24
2	0.34	5.1	30
2	0.5	5.8	38
2	0.75	6.2	45
2	1	6.5	72
2	1.5	7.7	90
3	0.14	4.3	25
3	0.25	4.9	29
3	0.34	5.3	33
3	0.5	6.1	47
3	0.75	6.5	60
3	1	7	90
3	1.5	8.1	115
4	0.14	4.5	28
4	0.25	5.2	35
4	0.34	5.9	59
4	0.5	6.5	62
4	0.75	7.2	92
4	1	7.5	109
4	1.5	8.7	153
5	0.14	4.8	32
5	0.25	5.8	41
5	0.34	6.4	56
5	0.5	7.2	76
5	0.75	7.8	97
5	1	8.2	126
5	1.5	9.5	176
6	0.14	5.1	35
6	0.25	6.2	49
6	0.34	7	59
6	0.5	7.8	84
7	0.14	5.2	39
7	0.25	6.3	51
7	0.34	7.1	75
7	0.5	7.9	86
7	0.75	8.5	120
7	1	8.8	171
7	1.5	10.7	220
8	0.14	6	41
8	0.25	7.3	58
8	0.34	8	84
8	0.5	8.9	135
10	0.14	6.4	54
10	0.25	7.7	81
10	0.34	8.9	106
10	0.5	9.5	129
10	0.75	10.7	169
12	0.14	6.8	74
12	0.25	7.9	117
12	0.34	9.1	133
12	0.5	9.8	148
12	0.75	11.1	196
16	0.14	7.2	90
16	0.25	8.6	124
16	0.34	9.6	160
25	0.14	9.4	135
25	0.25	10.9	161
25	0.34	12.5	232
18	0.5	11.7	210
18	0.75	12.7	327
25	0.5	13.9	319
25	0.75	15.5	454
