LiHH Cable

LiHH cable is a halogen-free, flexible, multi-core data transmission and control cable rated at 250/250V for indoor industrial applications.

LiHH Cable Description

LiHH cables feature low-smoke, zero-halogen insulation and outer jacket construction for use in environments where fire protection is required. Their small conductor cross-sectional area makes them ideal for applications such as electronic controls in computers and audio systems.

Cables of the LiHH type meet the flame retardancy standards VDE 0482-266-2-4 / IEC 60332-3-24. In addition, they meet the standards for smoke density and halogen emissions by IEC 61304 and IEC 60754, respectively.

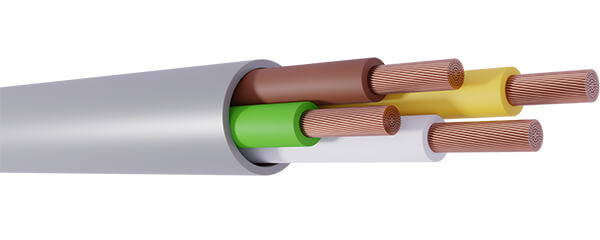

LiHH Cable Construction

Conductor
Class 5 Flexible Stranded Copper
Insulation
PE (Polyethylene)
Outer Sheath
FRNC Compound (Flame Retardant Non-Corrosive)

LiHH Cable Characteristics

Voltage Rating
250/250V
Temperature Rating
Fixed: -40°C to +70°C
Flexed: +5°C to +70°C
Minimum Bending Radius
Fixed: 7.5 x overall diameter

LiHH Cable Applications

LiHH cables are commonly used in industrial settings for data transmission, signal transfer, measuring, and control equipment. They are suitable for indoor use in dry, moist, and wet conditions.

LiHH Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	0.14	3.3	13
2	0.25	3.6	20
2	0.34	4.3	26
2	0.5	4.5	30
2	0.75	5.2	40
2	1	5.8	50
2	1.5	7	59
3	0.14	3.5	16
3	0.25	3.8	23
3	0.34	4.5	30
3	0.5	4.8	36
3	0.75	5.5	54
3	1	6.1	57
3	1.5	7.4	72
4	0.14	3.7	18
4	0.25	4.1	27
4	0.34	4.8	38
4	0.5	5.2	44
4	0.75	6.1	60
4	1	6.6	67
4	1.5	8	87
5	0.14	4.1	22
5	0.25	4.5	32
5	0.34	5.3	44
5	0.5	6.1	57
5	0.75	6.7	73
5	1	7.5	82
6	0.14	4.2	25
6	0.25	4.9	39
7	0.14	4.4	26
7	0.25	5	41
7	0.34	6.1	59
7	0.5	6.4	71
7	0.75	7.3	91
8	0.14	4.8	30
8	0.25	6.4	50
8	0.34	6.2	65
10	0.14	5.5	36
10	0.25	6.3	58
10	0.34	7.7	80
10	0.5	8.3	101
10	0.75	9.5	137
12	0.14	6.1	44
12	0.25	6.5	66
12	0.34	7.9	94
12	0.5	8.6	117
12	0.75	10.2	166
15	0.14	6.5	57
15	0.25	7.3	80
15	0.34	8.8	115
15	0.5	9.5	145
16	0.25	7.4	85
18	0.14	6.9	65
18	0.25	7.9	95
18	0.34	9.6	135
18	0.5	10.5	171
20	0.14	7.8	73
21	0.14	7.9	76
21	0.25	8.6	105
21	0.34	10.4	154
21	0.5	11.3	197
25	0.14	8.3	90
25	0.25	9.2	130
25	0.34	11.4	180
25	0.5	12.4	230
