LiYCY Cable

LiYCY Cable Description

LiYCY cables are typically multi-core, featuring a tinned copper braided shield and made from self-extinguishing and flame-retardant PVC material. These cables are designed for indoor applications, including those with higher requirements for electromagnetic compatibility. TP (Twisted Pair) models can reduce interference (crosstalk).

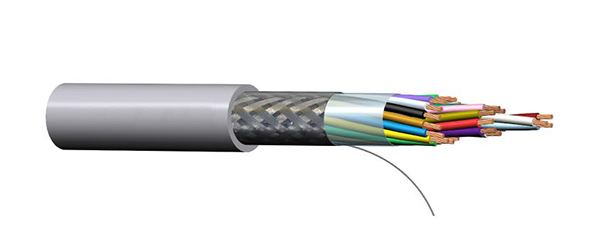

LiYCY Cable Construction

	LiYCY Cable	LiYCY TCWB Screened PVC IEC 60754 Control Cable	LiYCY TCWB Screened TP (Twisted Pair) PVC IEC 60754 Control Cable
VOLTAGE	250/250V	Up to 0.14mm²: 350V Above 0.14mm²: 500V
CONDUCTOR	Class 5 Flexible Stranded Copper
INSULATION	PVC (Polyvinyl Chloride)
SEPARATOR	-	Plastic Foil Tape
SCREEN	TCWB (Tinned Copper Wire Braid)
OUTER SHEATH	PVC (Polyvinyl Chloride)

LiYCY Cable Characteristics

	LiYCY Cable	LiYCY TCWB Screened PVC IEC 60754 Control Cable	LiYCY TCWB Screened TP (Twisted Pair) PVC IEC 60754 Control Cable
Voltage Rating (Uo/U)	250/250V		0.14mm²: 350V Above 0.14mm²: 500V
Test Voltage	1.2kV		0.14mm²: 800V Above 0.14mm²: 1200V
Temperature Rating	Fixed: -30ºC to +80ºC During Installation: -5ºC to +70ºC		Fixed: -40°C to +80°C Flexed: +5°C to +50°C
Minimum Bending Radius	Fixed Installation: 6 x overall diameter		Fixed: 10 x overall diameter

LiYCY Cable Advantages

Enhanced EMC: The screened braid provides protection against EMI, minimizing signal distortion and ensuring reliable operation.
Flexible and Durable: The cable’s flexibility and durability allow it to be used in various applications with varying mechanical stress.
Flame Retardant: The flame retardant properties ensure safety in the event of a fire.

LiYCY Cable

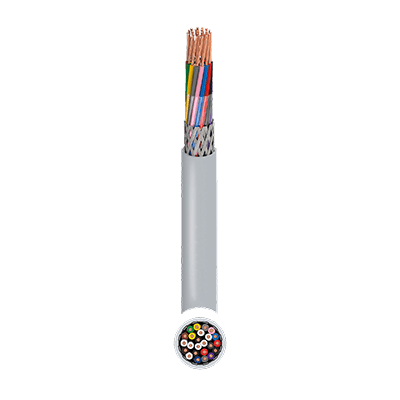

LiYCY TCWB Screened PVC IEC 60754 Control Cable

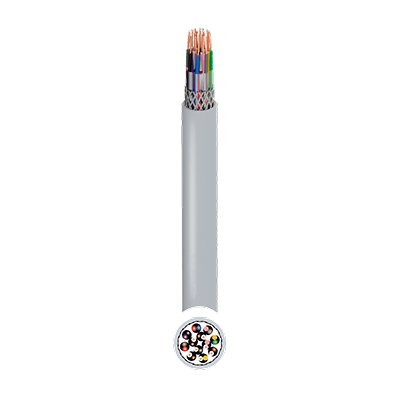

LiYCY TCWB Screened TP (Twisted Pair) PVC IEC 60754 Control Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	0.14	3.9	21
2	0.25	4.6	28
2	0.34	4.8	31
2	0.5	5	36
2	0.75	6.7	62
2	1	7	74
2	1.5	7.7	86
3	0.14	4	40
3	0.25	4.8	34
3	0.34	5	38
3	0.5	5.3	45
3	0.75	7	73
3	1	7.3	89
3	1.5	8	107
4	0.14	4.2	43
4	0.25	5.2	40
4	0.34	5.4	46
4	0.5	5.7	54
4	0.75	7.6	92
4	1	8	107
4	1.5	9	129
5	0.14	4.6	47
5	0.25	5.7	47
5	0.34	5.9	54
5	0.5	6.4	67
5	0.75	8.2	110
5	1	8.6	132
5	1.5	10	150
6	0.14	4.9	52
6	0.25	6.3	54
6	0.34	6.6	62
6	0.5	6.9	76
6	0.75	9.1	128
7	0.14	5	54
7	0.25	6.3	61
7	0.34	6.7	70
7	0.5	7	84
7	0.75	9.7	145
7	1	9.2	158
7	1.5	10.8	192
8	0.14	6	58
8	0.25	6.4	66
8	0.34	7	76
8	0.5	7.3	107
8	0.75	9.8	151
8	1	10.5	179
10	0.25	6.7	80
10	0.5	8.8	134
10	0.75	11.7	182
10	1	11.5	215
12	0.14	6.7	81
12	0.25	4.6	28
12	0.34	9	128
12	0.5	9.5	155
12	0.75	12	216
12	1	12	254
12	1.5	14	315
14	0.25	8	120
14	0.34	9.5	141
15	0.25	9.4	127
16	0.14	7.3	97
16	0.25	9.6	135
16	0.5	10.7	186
18	0.25	10	150
18	0.75	13.9	311
18	1.5	15.5	450
20	0.14	7.8	116
20	0.25	10.2	157
20	0.5	11.6	239
21	0.25	10.5	163
25	0.5	13.4	313
25	0.75	16.6	404
30	0.34	13.3	282

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	0.14	3.9	21
2	0.25	4.6	28
2	0.34	4.8	31
2	0.5	5	36
2	0.75	6.7	62
2	1	7	74
2	1.5	7.7	86
3	0.14	4	40
3	0.25	4.8	34
3	0.34	5	38
3	0.5	5.3	45
3	0.75	7	73
3	1	7.3	89
3	1.5	8	107
4	0.14	4.2	43
4	0.25	5.2	40
4	0.34	5.4	46
4	0.5	5.7	54
4	0.75	7.6	92
4	1	8	107
4	1.5	9	129
5	0.14	4.6	47
5	0.25	5.7	47
5	0.34	5.9	54
5	0.5	6.4	67
5	0.75	8.2	110
5	1	8.6	132
5	1.5	10	150
6	0.14	4.9	52
6	0.25	6.3	54
6	0.34	6.6	62
6	0.5	6.9	76
6	0.75	9.1	128
7	0.14	5	54
7	0.25	6.3	61
7	0.34	6.7	70
7	0.5	7	84
7	0.75	9.7	145
7	1	9.2	158
7	1.5	10.8	192
8	0.14	6	58
8	0.25	6.4	66
8	0.34	7	76
8	0.5	7.3	107
8	0.75	9.8	151
8	1	10.5	179
10	0.25	6.7	80
10	0.5	8.8	134
10	0.75	11.7	182
10	1	11.5	215
12	0.14	6.7	81
12	0.25	4.6	28
12	0.34	9	128
12	0.5	9.5	155
12	0.75	12	216
12	1	12	254
12	1.5	14	315
14	0.25	8	120
14	0.34	9.5	141
15	0.25	9.4	127
16	0.14	7.3	97
16	0.25	9.6	135
16	0.5	10.7	186
18	0.25	10	150
18	0.75	13.9	311
18	1.5	15.5	450
20	0.14	7.8	116
20	0.25	10.2	157
20	0.5	11.6	239
21	0.25	10.5	163
25	0.5	13.4	313
25	0.75	16.6	404
30	0.34	13.3	282

NO. OF PAIRS	NOMINAL CROSS SECTIONAL AREA mm²	CONDUCTOR CONSTRUCTION		CONDUCTOR LOOP RESISTANCE ohms/km	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
NO. OF PAIRS	NOMINAL CROSS SECTIONAL AREA mm²	No. of strands	Strand Diameter mm	CONDUCTOR LOOP RESISTANCE ohms/km	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	0.14	18	0.1	276	5.8	34
2	0.25	14	0.16	151	6.6	46
2	0.34	19	0.16	115	7.5	64
2	0.5	16	0.21	75.6	8.2	75
2	0.75	24	0.21	50.6	8.6	106
3	0.14	18	0.1	276	6.2	43
3	0.25	14	0.16	151	7	64
3	0.34	19	0.16	115	7.9	86
3	0.5	16	0.21	75.6	8.7	98
3	0.75	24	0.21	50.6	9.5	140
4	0.14	18	0.1	276	6.8	50
4	0.25	14	0.16	151	7.6	73
4	0.34	19	0.16	115	8.5	113
4	0.5	16	0.21	75.6	9.3	123
4	0.75	24	0.21	50.6	10.8	179
5	0.14	18	0.1	276	7.7	70
5	0.25	14	0.16	151	8.4	88
6	0.14	18	0.1	276	7.9	81
6	0.25	14	0.16	151	8.6	98
6	0.5	16	0.21	75.6	10.8	162
6	0.75	24	0.21	50.6	12.5	246
8	0.14	18	0.1	276	8.6	93
8	0.25	14	0.16	151	9.4	118
8	0.5	16	0.21	75.6	11.8	190
8	0.75	24	0.21	50.6	14.6	300
10	0.14	18	0.1	276	9.5	115
10	0.25	14	0.16	151	10.7	165
12	0.14	18	0.1	276	9.9	125
12	0.5	16	0.21	75.6	14	342
12	0.75	24	0.21	50.6	17.8	433
16	0.14	18	0.1	276	11.2	148
16	0.75	24	0.21	50.6	18.7	564
