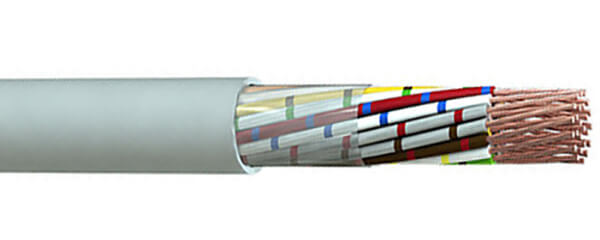

LiYY Cable Description
LiYY Cable has a small outer diameter and high flexibility, and is typically used in computer systems, electronic control equipment, office equipment, and measurement equipment with low mechanical stress. Typically meets the flame retardancy requirements of VDE 0472 Part 804 Class B test (IEC 332.1).
It is standardly configured with up to 36 cores and is available in a twisted pair configuration. Twisted pair (TP) is used to cancel out any electromagnetic interference from external sources or crosstalk from adjacent pairs.
LiYY Cable Construction
- Voltage
- 250/250V
- Conductor
- Class 5 Flexible Stranded Copper
- Insulation
- PVC (Polyvinyl Chloride)
- Outer Sheath
- PVC (Polyvinyl Chloride)
LiYY Cable Characteristics
- Voltage Rating Uo/U
- 250/250V
- Temperature Rating
- Fixed: -30ºC to +80ºC
- Flexed: -5ºC to +70ºC
- Minimum Bending Radius
- Fixed: 5 x overall diameter
- Flexed: 7.5 x overall diameter
LiYY Cable Applications
LiYY cables are not suitable for outdoor use and are mainly used in indoor environments such as offices, laboratories, and production lines.
LiYY Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 2 | 0.14 | 3.2 | 12 |
| 2 | 0.25 | 3.6 | 17 |
| 2 | 0.34 | 4.2 | 19 |
| 2 | 0.5 | 5.6 | 23 |
| 2 | 0.75 | 5.9 | 48 |
| 2 | 1 | 6 | 61 |
| 3 | 0.14 | 3.4 | 17 |
| 3 | 0.25 | 3.8 | 21 |
| 3 | 0.34 | 4.5 | 19 |
| 3 | 0.5 | 5.9 | 31 |
| 3 | 0.75 | 6 | 57 |
| 4 | 0.14 | 3.7 | 19 |
| 4 | 0.25 | 4.1 | 27 |
| 4 | 0.34 | 4.9 | 32 |
| 4 | 0.5 | 6.4 | 39 |
| 4 | 0.75 | 6.5 | 69 |
| 4 | 1 | 6.5 | 85 |
| 5 | 0.14 | 4 | 22 |
| 5 | 0.25 | 4.5 | 32 |
| 5 | 0.34 | 5.6 | 38 |
| 5 | 0.5 | 7 | 47 |
| 7 | 0.14 | 4.7 | 27 |
| 7 | 0.25 | 5.4 | 42 |
| 7 | 0.34 | 6.6 | 50 |
| 7 | 0.5 | 7.6 | 65 |
| 8 | 0.14 | 5.3 | 30 |
| 8 | 0.25 | 6.1 | 51 |
| 8 | 0.34 | 7.2 | 61 |
| 8 | 0.5 | 7.9 | 75 |
| 12 | 0.14 | 5.8 | 48 |
| 12 | 0.25 | 6.6 | 71 |
| 12 | 0.34 | 7.9 | 85 |
| 12 | 0.5 | 9.7 | 121 |
| 12 | 0.75 | 10.1 | 179 |
| 14 | 0.14 | 6.1 | 54 |
| 18 | 0.14 | 6.7 | 72 |
| 21 | 0.14 | 7.5 | 77 |
| 21 | 0.5 | 12.6 | 184 |
| 24 | 0.14 | 7.8 | 94 |
| 24 | 0.5 | 13.6 | 221 |
