Polyurethane Control Cable Description
PUR cables have high mechanical and chemical resistance. They have high tensile, tear, and impact strength, as well as excellent resistance to oils, lubricants, acids, and alkalis, protecting the cables from damage in industrial environments. Inherent toughness and abrasion resistance ensure long-lasting performance even under intensive use. They are the first choice for applications that require greater durability and reliability.
The “PUR-JZ” designation indicates it has a polyurethane jacket and includes a ground wire. Screened Polyurethane Cable is a cable shield with a tinned copper braided shield and a tough polyurethane outer jacket to avoid crosstalk issues.
Polyurethane Control Cable Construction
| Veriflex Control PUR-JZ Cable | Screened Polyurethane Cable | |
|---|---|---|
| VOLTAGE | 300/500V | |
| CONDUCTOR | Class 5 Flexible Stranded Copper | |
| INSULATION | PVC (Polyvinyl Chloride) | |
| SEPARATOR | Non-Woven Polyester Tape | - |
| SCREEN | - | TCWB (Tinned Copper Wire Braid) |
| OUTER SHEATH | PUR (Polyurethane) | |
Polyurethane Control Cable Characteristics
| Veriflex Control PUR-JZ Cable | Screened Polyurethane Cable | |
|---|---|---|
| Voltage Rating | 300/500V | |
| Temperature Rating | Fixed: -40°C to +80°C Flexed: -5°C to +70°C | Fixed: -40ºC to +80ºC Installation: -5ºC to +80ºC |
| Minimum Bending Radius | Fixed: 4 x overall diameter Flexed: 10 x overall diameter | Fixed: 5 x overall diameter Flexed: 10 x overall diameter |
Polyurethane Control Cable Applications
- Industrial Automation
- Machine Building
- Outdoor Installations
- Food and Beverage Industry

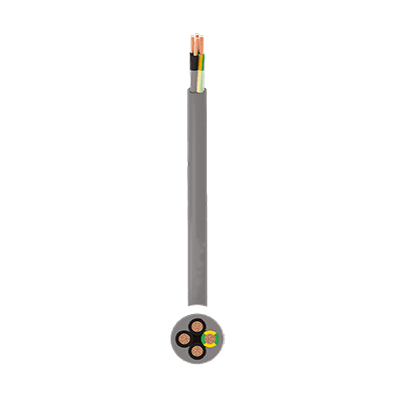

- Veriflex Control PUR-JZ Cable

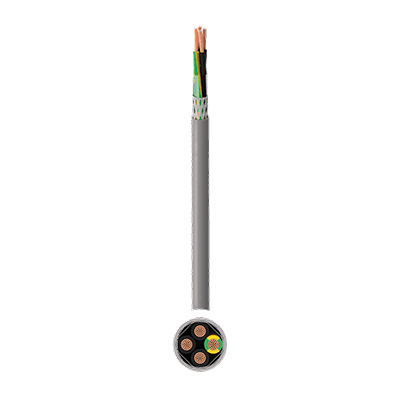

- Screened Polyurethane Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OUTER SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 2 | 0.5 | 0.4 | 0.8 | 5.1 | 36 |
| 2 | 0.75 | 0.4 | 0.8 | 5.5 | 44 |
| 2 | 1 | 0.4 | 0.8 | 5.9 | 52 |
| 2 | 1.5 | 0.4 | 0.8 | 6.5 | 65 |
| 3 | 0.75 | 0.4 | 0.8 | 5.8 | 53 |
| 3 | 1 | 0.4 | 0.8 | 6.2 | 62 |
| 3 | 1.5 | 0.4 | 0.8 | 6.9 | 81 |
| 3 | 2.5 | 0.5 | 0.9 | 8.4 | 125 |
| 4 | 0.75 | 0.4 | 0.8 | 6.3 | 65 |
| 4 | 1 | 0.4 | 0.8 | 6.8 | 78 |
| 4 | 1.5 | 0.4 | 0.9 | 7.7 | 106 |
| 4 | 2.5 | 0.5 | 1 | 9.4 | 164 |
| 4 | 10 | 0.65 | 1.5 | 18.4 | 683 |
| 4 | 16 | 0.65 | 1.6 | 20.5 | 957 |
| 4 | 25 | 0.7 | 1.8 | 25.4 | 1432 |
| 4 | 35 | 0.7 | 1.9 | 29.4 | 1941 |
| 5 | 0.75 | 0.4 | 0.8 | 6.8 | 78 |
| 5 | 1 | 0.4 | 0.9 | 7.6 | 99 |
| 5 | 1.5 | 0.4 | 0.9 | 8.4 | 129 |
| 5 | 2.5 | 0.5 | 1.1 | 10.4 | 206 |
| 5 | 4 | 0.6 | 1.2 | 10.3 | 192 |
| 5 | 6 | 0.65 | 1.4 | 14.6 | 447 |
| 7 | 0.75 | 0.4 | 0.9 | 7.6 | 104 |
| 7 | 1 | 0.4 | 0.9 | 8.2 | 126 |
| 7 | 1.5 | 0.4 | 1 | 9.3 | 171 |
| 12 | 0.75 | 0.4 | 1.1 | 10.2 | 177 |
| 12 | 1 | 0.4 | 1.1 | 11 | 214 |
| 12 | 1.5 | 0.4 | 1.2 | 12.5 | 289 |
| 18 | 0.75 | 0.4 | 1.2 | 12 | 256 |
| 18 | 1 | 0.4 | 1.3 | 13.2 | 319 |
| 18 | 1.5 | 0.4 | 1.4 | 14.9 | 430 |
| 25 | 0.75 | 0.4 | 1.4 | 14.6 | 360 |
| 25 | 1 | 0.4 | 1.5 | 16 | 447 |
| 25 | 1.5 | 0.4 | 1.6 | 18.1 | 601 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 2 | 1 | 6.1 | 66 |
| 2 | 1.5 | 7.1 | 92 |
| 3 | 1 | 6.3 | 82 |
| 3 | 1.5 | 6.9 | 135 |
| 3 | 2.5 | 8.6 | 178 |
| 4 | 1 | 6.9 | 129 |
| 4 | 1.5 | 7.5 | 146 |
| 4 | 2.5 | 9.9 | 215 |
| 4 | 4 | 11.7 | 308 |
| 4 | 6 | 14.2 | 427 |
| 5 | 1 | 7.5 | 128 |
| 5 | 1.5 | 8.4 | 159 |
| 5 | 2.5 | 11 | 246 |
| 5 | 4 | 13.3 | 386 |
| 5 | 6 | 15.2 | 510 |
| 7 | 1 | 8.9 | 174 |
| 7 | 1.5 | 10 | 207 |
| 7 | 2.5 | 12.6 | 342 |
| 12 | 1 | 10.9 | 262 |
| 12 | 1.5 | 12.1 | 352 |
| 12 | 2.5 | 15.5 | 580 |
| 18 | 1 | 13.9 | 388 |
| 18 | 1.5 | 15.6 | 516 |
| 18 | 2.5 | 19 | 978 |
| 21 | 1 | 13.6 | 480 |
| 25 | 1 | 15.9 | 596 |
| 25 | 1.5 | 17.9 | 719 |
| 25 | 2.5 | 22.2 | 1358 |
