RC4Z1-K Cable Description
RC4Z1-K cable features a Category 5 flexible copper, copper braided shield, and a polyolefin low-smoke, halogen-free (LSZH) outer sheath. It is suitable for installations where electrical interference to nearby circuits must be avoided, and for power transmission and distribution in locations requiring low-smoke, halogen-free emissions under fire conditions.

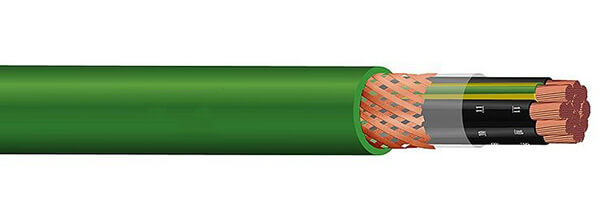

RC4Z1-K Cable Construction
- Conductor
- Copper, class 5 (flexible)
- Insulation
- XLPE (Cross-linked polyethylene)
- Screen
- Coverage of 100% composed by aluminium-polyester tape and tinned copper braid.
- Outer sheath
- LSZH（Low Smoke Zero Halogen)
RC4Z1-K Cable Characteristics
- Voltage Rating
- 0.6/1 kV
- Thermal performance
- Maximum conductor temperature: 90ºC.
- Maximum short-circuittemperature: 250ºC (max. 5 s).
- Minimum service temperature: -40ºC (static with protection).
- Mechanical performance
- Minimum bending radius: x5 cable diameter.
RC4Z1-K Cable Specifications
| Cross-section (mm²) | Diameter (mm) | Weight (kg/km) | Open air (A) | Buried (A) | Voltage drop (V/A · km) |
|---|---|---|---|---|---|
| 2 x 1,5 | 9,0 | 100 | 26 | 27 | 33,9 |
| 2 x 2,5 | 10,2 | 135 | 36 | 35 | 20,3 |
| 2 x 4 | 11,2 | 170 | 49 | 46 | 12,6 |
| 2 x 6 | 11,8 | 210 | 63 | 58 | 8,41 |
| 2 x 10 | 14,0 | 325 | 86 | 77 | 4,87 |
| 3 G 1,5 | 9,8 | 130 | 26 | 27 | 33,9 |
| 3 G 2,5 | 10,7 | 165 | 36 | 35 | 20,3 |
| 3 G 4 | 11,9 | 220 | 49 | 46 | 12,6 |
| 3 G 6 | 12,9 | 280 | 63 | 58 | 8,41 |
| 4 G 1,5 | 10,6 | 155 | 26 | 27 | 33,9 |
| 4 G 2,5 | 11,4 | 195 | 36 | 35 | 20,3 |
| 4 G 4 | 12,9 | 270 | 49 | 46 | 12,6 |
| 4 G 6 | 13,7 | 345 | 63 | 58 | 8,41 |
| 4 G 10 | 16,5 | 520 | 86 | 77 | 4,87 |
| 4 G 16 | 19,1 | 750 | 115 | 100 | 3,08 |
| 5 G 1,5 | 11,4 | 180 | 26 | 27 | 33,9 |
| 5 G 2,5 | 12,5 | 235 | 36 | 35 | 20,3 |
| 5 G 4 | 14,1 | 320 | 49 | 46 | 12,6 |
| 5 G 6 | 15,4 | 420 | 63 | 58 | 8,41 |
| 7 G 1,5 | 12,0 | 220 | 26 | 27 | 33,9 |
| 7 G 2,5 | 13,6 | 295 | 36 | 35 | 20,3 |
| 10 G 1,5 | 13,6 | 275 | 26 | 27 | 33,9 |
| 10 G 2,5 | 16,8 | 405 | 36 | 35 | 20,3 |
| 12 G 1,5 | 14,7 | 325 | 26 | 27 | 33,9 |
| 12 G 2,5 | 16,3 | 450 | 36 | 35 | 20,3 |
| 14 G 1,5 | 16,4 | 370 | 26 | 27 | 33,9 |
| 14 G 2,5 | 18,2 | 520 | 36 | 35 | 20,3 |
| 19 G 1,5 | 18,1 | 465 | 26 | 27 | 33,9 |
| 19 G 2,5 | 19,6 | 660 | 36 | 35 | 20,3 |
| 24 G 1,5 | 19,3 | 570 | 26 | 27 | 33,9 |
| 24 G 2,5 | 21,7 | 815 | 36 | 35 | 20,3 |
| 27 G 1,5 | 21,1 | 640 | 26 | 27 | 33,9 |
| 27 G 2,5 | 23,1 | 905 | 36 | 35 | 20,3 |
