RZ1C4Z1-K Cable

RZ1C4Z1-K Cable Description

RZ1C4Z1-K cable features a braided copper shield, mica, and cross-linked polyethylene (XLPE) insulation. It is suitable for applications requiring a low smoke halogen-free (LSZH) fire safety rating and for installation environments where electrical interference to nearby circuits must be avoided. Since critical circuits must remain operational during a fire, this cable is commonly used in public places such as hospitals, offices, laboratories, and hotels.

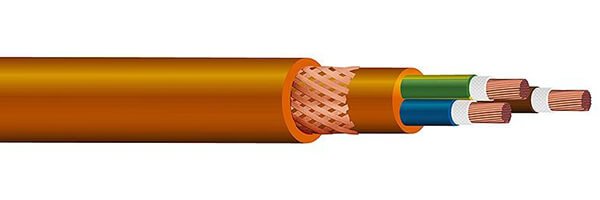

RZ1C4Z1-K Cable Construction

Conductor
Copper, class 5 (flexible)
Insulation
Mica Tape + XLPE
Screen
Overlapping aluminium-polyester tape screen with
100% coverage + tinned copper drain wire
Beding
Low smoke halogen free polyolefin
Outer sheath
Polyolefin LSZH and fire resistant

RZ1C4Z1-K Cable Characteristics

Voltage Rating
0,6/1kV
Thermal performance
Maximum conductor temperature: 90ºC
Maximum short-circuittemperature: 250ºC (max. 5 s)
Minimum service temperature: -40ºC
Minimum installation and handling temperature: 0ºC
Minimum bending radius
x5 cable diameter

RZ1C4Z1-K Cable Specifications

Cross-section (mm²)	Diameter (mm)	Weight (kg/km)	Open air (A)	Buried (A)	Voltage drop (V/A·km)
4 G 95	43,2	4.51	352	270	0,525
