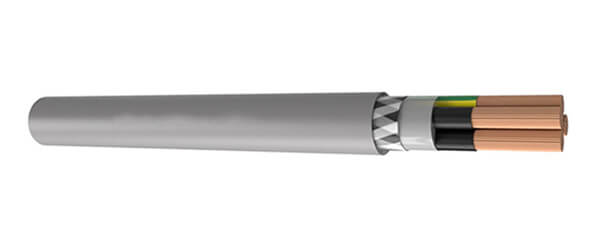

Veriflex CY Cable Description
This type is suitable for instrumentation and control equipment such as production lines and machine tools, and is particularly suitable for applications that require interference-free transmission and a certain degree of mechanical protection.
Veriflex CY PVC cable adopts PVC (polyvinyl chloride) sheath, which has good insulation, protection, moisture resistance, oil resistance and UV resistance. Veriflex CY LSZH cable outer jacket is made of Low Smoke Zero Halogen (LSZH) material to minimize smoke and fumes and contains no halogen compounds. This makes it safer and more suitable for applications where fire safety is a concern.

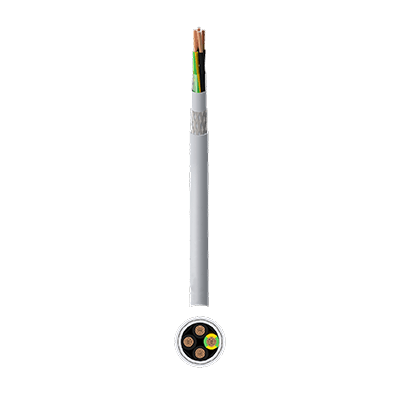

Veriflex Screened Bedded LSZH Cable features a screen (usually a braid of tinned copper wire) for interference shielding, a bedding layer (usually made of materials such as PE or PET) for additional mechanical protection, and a LSZH (Low Smoke Zero Halogen) jacket for fire protection.
Veriflex CY Cable Construction
Veriflex CY PVC (YSLCY) Control Cable | Veriflex Screened Bedded LSZH (HSLHCH) Cable | Veriflex CY LSZH (HSLCH) Control Cable | Veriflex YSLYCY 1kV Black Cable | |
---|---|---|---|---|
VOLTAGE | 300/500V | 0.6/1kV | ||
CONDUCTOR | Class 5 Flexible Stranded Copper | |||
INSULATION | PVC (Polyvinyl Chloride) | LSZH (Low Smoke Zero Halogen) | PVC (Polyvinyl Chloride) | |
SEPARATOR | PET (Polyester Tape) | - | PET (Polyester Tape) | - |
BEDDING | - | LSZH (Low Smoke Zero Halogen) | - | |
INNER SHEATH | - | PVC (Polyvinyl Chloride) | ||
SCREEN | TCWB (Tinned Copper Wire Braid) | |||
OUTER SHEATH | PVC (Polyvinyl Chloride) | LSZH (Low Smoke Zero Halogen) | PVC (Polyvinyl Chloride) |
Veriflex CY Cable Characteristics
Veriflex CY PVC (YSLCY) Control Cable | Veriflex Screened Bedded LSZH (HSLHCH) Cable | Veriflex CY LSZH (HSLCH) Control Cable | |
---|---|---|---|
Voltage Rating | 300/500V | ||
Temperature Rating | Fixed: -40°C to +80°C Flexed: -5°C to +70°C | Fixed: -40°C to +80°C Flexed: -15°C to +70°C |
|
Minimum Bending Radius | Fixed: 6 x overall diameter Flexed: 15 x overall diameter | Fixed: 6 x overall diameter Moved: 15 x overall diameter | Fixed: 6 x overall diameter Flexed: 15 x overall diameter |
- Veriflex CY PVC (YSLCY) Control Cable
- Veriflex Screened Bedded LSZH (HSLHCH) Cable
- Veriflex CY LSZH (HSLCH) Control Cable
NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
---|---|---|---|---|---|
2 | 0.5 | 0.4 | 0.8 | 5.4 | 41 |
2 | 0.75 | 0.4 | 0.9 | 6.1 | 52 |
2 | 1 | 0.4 | 0.9 | 6.5 | 60 |
2 | 1.5 | 0.4 | 0.9 | 7.1 | 74 |
3 | 0.5 | 0.4 | 0.8 | 5.8 | 51 |
3 | 0.75 | 0.4 | 0.9 | 6.4 | 65 |
3 | 1 | 0.4 | 0.9 | 6.8 | 76 |
3 | 1.5 | 0.4 | 0.9 | 7.5 | 98 |
3 | 2.5 | 0.5 | 1 | 9 | 146 |
4 | 0.5 | 0.4 | 0.8 | 6.2 | 64 |
4 | 0.75 | 0.4 | 0.9 | 6.9 | 82 |
4 | 1 | 0.4 | 0.9 | 7.4 | 96 |
4 | 1.5 | 0.4 | 0.9 | 8.1 | 122 |
4 | 2.5 | 0.5 | 1.1 | 10 | 190 |
4 | 4 | 0.6 | 1.2 | 11.9 | 283 |
4 | 6 | 0.65 | 1.3 | 13.5 | 386 |
4 | 10 | 0.75 | 1.5 | 17.1 | 630 |
4 | 16 | 0.75 | 1.6 | 20.4 | 910 |
4 | 25 | 0.9 | 1.8 | 24.4 | 1364 |
4 | 35 | 0.95 | 1.9 | 28 | 1814 |
5 | 0.5 | 0.4 | 0.8 | 6.7 | 77 |
5 | 0.75 | 0.4 | 0.9 | 7.4 | 97 |
5 | 1 | 0.4 | 0.9 | 8 | 116 |
5 | 1.5 | 0.4 | 1 | 9 | 152 |
5 | 2.5 | 0.5 | 1.1 | 10.8 | 228 |
5 | 4 | 0.6 | 1.2 | 12.9 | 332 |
5 | 6 | 0.65 | 1.3 | 14.8 | 457 |
5 | 10 | 0.75 | 1.5 | 18.7 | 749 |
5 | 16 | 0.75 | 1.7 | 22.6 | 1125 |
5 | 25 | 0.9 | 1.9 | 27 | 1683 |
7 | 0.5 | 0.4 | 0.8 | 7.2 | 93 |
7 | 0.75 | 0.4 | 0.9 | 8 | 121 |
7 | 1 | 0.4 | 1 | 8.8 | 148 |
7 | 1.5 | 0.4 | 1 | 9.7 | 191 |
7 | 2.5 | 0.5 | 1.1 | 11.7 | 290 |
12 | 0.5 | 0.4 | 1 | 9.6 | 154 |
12 | 0.75 | 0.4 | 1 | 10.4 | 193 |
12 | 1 | 0.4 | 1.1 | 11.4 | 236 |
12 | 1.5 | 0.4 | 1.2 | 12.9 | 315 |
18 | 0.75 | 0.4 | 1.2 | 12.4 | 281 |
18 | 1 | 0.4 | 1.2 | 13.4 | 339 |
18 | 1.5 | 0.4 | 1.3 | 15.1 | 452 |
25 | 0.75 | 0.4 | 1.3 | 14.8 | 331 |
25 | 1 | 0.4 | 1.3 | 16 | 461 |
25 | 1.5 | 0.4 | 1.4 | 18.1 | 616 |
NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
---|---|---|---|---|---|
2 | 0.5 | 0.4 | 0.8 | 6.8 | 77 |
2 | 0.75 | 0.4 | 0.8 | 7.2 | 77 |
2 | 1 | 0.4 | 0.9 | 7.8 | 107 |
2 | 1.5 | 0.4 | 0.9 | 8.4 | 127 |
3 | 0.5 | 0.4 | 0.8 | 7.1 | 89 |
3 | 0.75 | 0.4 | 0.9 | 7.7 | 106 |
3 | 1 | 0.4 | 0.9 | 8.1 | 120 |
3 | 1.5 | 0.4 | 1 | 9 | 152 |
3 | 2.5 | 0.5 | 1.1 | 11.1 | 243 |
4 | 0.5 | 0.4 | 0.9 | 7.7 | 105 |
4 | 0.75 | 0.4 | 0.9 | 8.2 | 123 |
4 | 1 | 0.4 | 0.9 | 8.7 | 142 |
4 | 1.5 | 0.4 | 1 | 9.6 | 178 |
4 | 2.5 | 0.5 | 1.1 | 11.3 | 254 |
4 | 4 | 0.6 | 1.3 | 13.6 | 371 |
4 | 6 | 0.65 | 1.4 | 15.2 | 489 |
4 | 10 | 0.75 | 1.7 | 19.2 | 766 |
4 | 16 | 0.75 | 1.8 | 21.5 | 1062 |
4 | 25 | 0.9 | 2.2 | 26.6 | 1577 |
4 | 35 | 0.95 | 2.4 | 30.4 | 2096 |
5 | 0.5 | 0.4 | 0.9 | 8.2 | 117 |
5 | 0.75 | 0.4 | 0.9 | 8.7 | 138 |
5 | 1 | 0.4 | 1 | 9.5 | 166 |
5 | 1.5 | 0.4 | 1.1 | 10.5 | 208 |
5 | 2.5 | 0.5 | 1.2 | 12.5 | 302 |
5 | 4 | 0.6 | 1.3 | 14.9 | 463 |
5 | 6 | 0.65 | 1.4 | 17.3 | 616 |
5 | 10 | 0.75 | 1.8 | 21.2 | 946 |
5 | 16 | 0.75 | 2 | 23.9 | 1315 |
7 | 0.5 | 0.4 | 0.9 | 8.7 | 138 |
7 | 0.75 | 0.4 | 1 | 9.5 | 167 |
7 | 1 | 0.4 | 1 | 10.1 | 198 |
7 | 1.5 | 0.4 | 1.1 | 11.2 | 251 |
7 | 2.5 | 0.5 | 1.3 | 13.6 | 379 |
7 | 4 | 0.6 | 1.4 | 16.2 | 588 |
7 | 6 | 0.65 | 1.6 | 18.8 | 792 |
12 | 0.5 | 0.4 | 1.1 | 11.1 | 213 |
12 | 0.75 | 0.4 | 1.2 | 12.3 | 272 |
12 | 1 | 0.4 | 1.2 | 13.1 | 316 |
12 | 1.5 | 0.4 | 1.4 | 14.8 | 414 |
18 | 0.75 | 0.4 | 1.3 | 14.1 | 367 |
18 | 1 | 0.4 | 1.4 | 15.3 | 441 |
18 | 1.5 | 0.4 | 1.5 | 17 | 569 |
25 | 0.75 | 0.4 | 1.5 | 16.7 | 569 |
25 | 1 | 0.4 | 1.6 | 18.3 | 611 |
25 | 1.5 | 0.4 | 1.8 | 20.8 | 818 |
NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OUTER SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
---|---|---|---|---|---|
2 | 0.5 | 0.4 | 0.8 | 5.4 | 42 |
2 | 0.75 | 0.4 | 0.9 | 6.1 | 54 |
2 | 1 | 0.4 | 0.9 | 6.5 | 62 |
2 | 1.5 | 0.4 | 0.9 | 7.1 | 76 |
3 | 0.5 | 0.4 | 0.8 | 5.8 | 52 |
3 | 0.75 | 0.4 | 0.9 | 6.4 | 67 |
3 | 1 | 0.4 | 0.9 | 6.8 | 77 |
3 | 1.5 | 0.4 | 0.9 | 7.5 | 100 |
3 | 2.5 | 0.5 | 1 | 9 | 149 |
4 | 0.5 | 0.4 | 0.8 | 6.2 | 66 |
4 | 0.75 | 0.4 | 0.9 | 6.9 | 84 |
4 | 1 | 0.4 | 0.9 | 7.4 | 98 |
4 | 1.5 | 0.4 | 0.9 | 8.1 | 124 |
4 | 2.5 | 0.5 | 1.1 | 10 | 193 |
4 | 4 | 0.6 | 1.2 | 11.9 | 288 |
4 | 6 | 0.65 | 1.3 | 13.5 | 392 |
4 | 10 | 0.75 | 1.5 | 17.1 | 638 |
4 | 16 | 0.75 | 1.6 | 20.4 | 921 |
4 | 25 | 0.9 | 1.8 | 24.4 | 1378 |
4 | 35 | 0.95 | 1.9 | 28 | 1832 |
5 | 0.5 | 0.4 | 0.8 | 6.7 | 78 |
5 | 0.75 | 0.4 | 0.9 | 7.4 | 99 |
5 | 1 | 0.4 | 0.9 | 8 | 118 |
5 | 1.5 | 0.4 | 1 | 9 | 155 |
5 | 2.5 | 0.5 | 1.1 | 10.8 | 231 |
5 | 4 | 0.6 | 1.2 | 12.9 | 337 |
5 | 6 | 0.65 | 1.3 | 14.8 | 463 |
5 | 10 | 0.75 | 1.5 | 18.7 | 758 |
5 | 16 | 0.75 | 1.7 | 22.6 | 1137 |
5 | 25 | 0.9 | 1.9 | 27 | 1699 |
7 | 0.5 | 0.4 | 0.8 | 7.2 | 95 |
7 | 0.75 | 0.4 | 0.9 | 8 | 123 |
7 | 1 | 0.4 | 1 | 8.8 | 151 |
7 | 1.5 | 0.4 | 1 | 9.7 | 194 |
7 | 2.5 | 0.5 | 1.1 | 11.7 | 294 |
12 | 0.5 | 0.4 | 1 | 9.6 | 157 |
12 | 0.75 | 0.4 | 1 | 10.4 | 196 |
12 | 1 | 0.4 | 1.1 | 11.4 | 240 |
12 | 1.5 | 0.4 | 1.2 | 12.9 | 320 |
18 | 0.75 | 0.4 | 1.2 | 12.4 | 285 |
18 | 1 | 0.4 | 1.2 | 13.4 | 344 |
18 | 1.5 | 0.4 | 1.3 | 15.1 | 458 |
25 | 0.75 | 0.4 | 1.3 | 14.8 | 387 |
25 | 1 | 0.4 | 1.3 | 16 | 467 |
25 | 1.5 | 0.4 | 1.4 | 18.1 | 624 |
