Veriflex SY Cable Description
SY cables, also known as armoured flexible control cable, shielded flex, or simply armoured flex, are strong and durable cables suitable for internal dry, damp or wet environments (including oil-water mixtures), and can be used outdoors when protected against direct sunlight. They are also referred to by their constructional reference: YSLYSY cables for the PVC sheathed variation.
PVC jackets can provide additional protection and insulation, and LSZH insulation and jacketing materials are designed to minimize the release of toxic fumes in the event of a fire, making them suitable for applications where fire safety is critical.
For more information about SY cable specifications, please get in touch with our technical experts for control cable selection advice, or refer to our SY cable specification sheet.

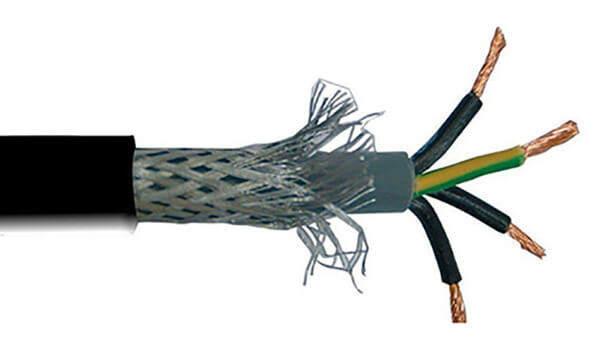

Black SY Braided Sheath Cable
Veriflex SY Cable Construction
| Veriflex SY PVC (YSLYSY) Control Cable | SY LSZH Control Flexible Cable | |
|---|---|---|
| VOLTAGE | 300/500V | |
| CONDUCTOR | Class 5 Flexible Stranded Copper | |
| INSULATION | PVC (Polyvinyl Chloride) | LSZH (Low Smoke Zero Halogen) |
| BEDDING | PVC (Polyvinyl Chloride) | LSZH (Low Smoke Zero Halogen) |
| BRAID | GSWB (Galvanised Steel Wire Braid) | |
| OUTER SHEATH | PVC (Polyvinyl Chloride) | LSZH (Low Smoke Zero Halogen) |
Veriflex SY Cable Characteristics
| Veriflex SY PVC (YSLYSY) Control Cable | SY LSZH Control Flexible Cable | |
|---|---|---|
| Voltage Rating | 300/500V | |
| Temperature Rating | Fixed: -40°C to +80°C Flexed: -5°C to +70°C | -15ºC to +70°C |
| Minimum Bending Radius | Fixed: 4 x overall diameter Flexed: 12.5 x overall diameter | 10 x overall diameter |
Veriflex SY Cable Colour Code
- 2-core: Brown and Blue
- 3-core: Blue, Brown, and Green/Yellow
- 4-core: Blue, Brown, Black, and Green/Yellow
- 5-core: Blue, Brown, Black, Gray, and Green/Yellow
- 6-core and above: Green/Yellow for earth, and remaining cores numbered.
- Numbered cores: Often black with white markings.
- Green/Yellow: Often used for the earth wire in multi-core cables.

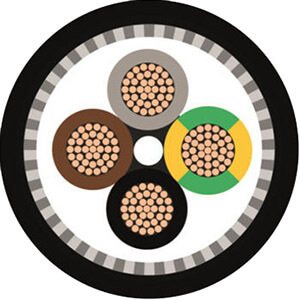

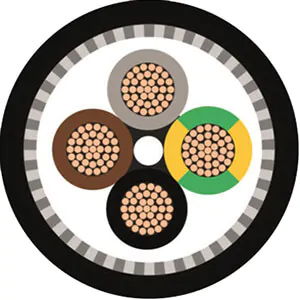

4 Core SY Cable
- Veriflex SY PVC (YSLYSY) Control Cable
- SY LSZH Control Flexible Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OUTER SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 2 | 0.75 | 0.4 | 0.8 | 7.2 | 79.3 |
| 2 | 1 | 0.4 | 0.8 | 7.6 | 91 |
| 2 | 1.5 | 0.4 | 0.8 | 8.2 | 110 |
| 2 | 2.5 | 0.5 | 0.8 | 9.4 | 147 |
| 3 | 0.75 | 0.4 | 0.8 | 7.5 | 91.3 |
| 3 | 1 | 0.4 | 0.8 | 7.9 | 104 |
| 3 | 1.5 | 0.4 | 0.8 | 8.6 | 129 |
| 3 | 2.5 | 0.5 | 0.9 | 10.1 | 185 |
| 3 | 4 | 0.6 | 1 | 12 | 269 |
| 3 | 6 | 0.65 | 1.1 | 13.5 | 354 |
| 3 | 10 | 0.75 | 1.3 | 16.9 | 579 |
| 3 | 16 | 0.75 | 1.5 | 19 | 785 |
| 3 | 25 | 0.9 | 1.8 | 23.5 | 1211 |
| 3 | 35 | 0.95 | 2 | 26.7 | 1642 |
| 4 | 0.75 | 0.4 | 0.8 | 8 | 107 |
| 4 | 1 | 0.4 | 0.8 | 8.5 | 124 |
| 4 | 1.5 | 0.4 | 0.8 | 9.2 | 151 |
| 4 | 2.5 | 0.5 | 0.9 | 11.1 | 230 |
| 4 | 4 | 0.6 | 1.1 | 13.2 | 332 |
| 4 | 6 | 0.65 | 1.2 | 14.8 | 442 |
| 4 | 10 | 0.75 | 1.5 | 18.8 | 735 |
| 4 | 16 | 0.75 | 1.6 | 20.9 | 988 |
| 4 | 25 | 0.9 | 2 | 26 | 1536 |
| 4 | 35 | 0.95 | 2.2 | 30 | 2098 |
| 4 | 50 | 1.25 | 2.6 | 35.3 | 2968 |
| 4 | 70 | 1.25 | 3 | 40.5 | 3822 |
| 4 | 95 | 1.6 | 3.6 | 49.4 | 5369 |
| 5 | 0.75 | 0.4 | 0.8 | 8.5 | 120 |
| 5 | 1 | 0.4 | 0.8 | 9.1 | 140 |
| 5 | 1.5 | 0.4 | 0.9 | 10.1 | 182 |
| 5 | 2.5 | 0.5 | 1 | 12.1 | 266 |
| 5 | 4 | 0.6 | 1.1 | 14.2 | 382 |
| 5 | 6 | 0.65 | 1.3 | 16.5 | 525 |
| 5 | 10 | 0.75 | 1.6 | 20.6 | 873 |
| 5 | 16 | 0.75 | 1.8 | 23.4 | 1207 |
| 5 | 25 | 0.9 | 2.2 | 29 | 1875 |
| 5 | 35 | 0.95 | 2.4 | 32.9 | 2577 |
| 7 | 0.75 | 0.4 | 0.8 | 9.1 | 147 |
| 7 | 1 | 0.4 | 0.9 | 9.9 | 181 |
| 7 | 1.5 | 0.4 | 0.9 | 11 | 226 |
| 7 | 2.5 | 0.5 | 1.1 | 13.2 | 338 |
| 12 | 0.75 | 0.4 | 1 | 10.9 | 237 |
| 12 | 1 | 0.4 | 1 | 12.7 | 280 |
| 12 | 1.5 | 0.4 | 1.1 | 14.2 | 365 |
| 12 | 2.5 | 0.4 | 1.2 | 17.5 | 572 |
| 18 | 0.75 | 0.4 | 1.1 | 13.7 | 322 |
| 18 | 1 | 0.4 | 1.2 | 14.9 | 396 |
| 18 | 1.5 | 0.4 | 1.3 | 16.8 | 521 |
| 18 | 2.5 | 0.4 | 1.3 | 20.4 | 809 |
| 25 | 0.75 | 0.4 | 1.3 | 16 | 438 |
| 25 | 1 | 0.4 | 1.4 | 17.6 | 544 |
| 25 | 1.5 | 0.4 | 1.5 | 19.6 | 708 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF BEDDING mm | NOMINAL DIAMETER OF GSWB mm | NOMINAL DIAMETER OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 2 | 1.5 | 0.5 | 0.5 | 0.24 | 0.8 | 8 | 109 |
| 3 | 1 | 0.5 | 0.5 | 0.24 | 1 | 8 | 114 |
| 3 | 1.5 | 0.5 | 0.5 | 0.24 | 1 | 9 | 138 |
| 3 | 2.5 | 0.6 | 0.5 | 0.24 | 1 | 10 | 188 |
| 3 | 4 | 0.6 | 0.6 | 0.24 | 1 | 12 | 256 |
| 3 | 6 | 0.7 | 0.6 | 0.24 | 1.1 | 14 | 352 |
| 4 | 1.5 | 0.5 | 0.5 | 0.24 | 1 | 10 | 161 |
| 4 | 2.5 | 0.6 | 0.5 | 0.24 | 1 | 11 | 223 |
| 4 | 4 | 0.6 | 0.6 | 0.24 | 1 | 13 | 310 |
| 4 | 6 | 0.7 | 0.6 | 0.24 | 1.1 | 15 | 430 |
| 5 | 1.5 | 0.5 | 0.5 | 0.24 | 1 | 10 | 189 |
| 5 | 2.5 | 0.6 | 0.6 | 0.24 | 1 | 12 | 264 |
| 5 | 6 | 0.7 | 0.6 | 0.24 | 1.2 | 16 | 523 |
| 5 | 10 | 0.8 | 0.8 | 0.3 | 1.2 | 20 | 822 |
| 5 | 16 | 0.9 | 0.8 | 0.3 | 1.4 | 24 | 1217 |
