Z1C4Z1-K Cable

Z1C4Z1-K Cable Description

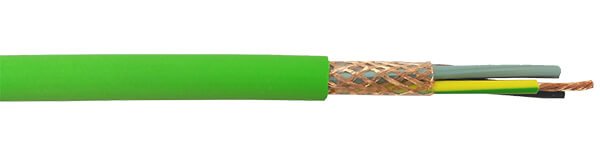

Z1C4Z1-K cable features Category 5 flexible copper conductors, polyolefin insulation, copper braided shielding, and a low-smoke, halogen-free polyolefin outer sheath. It is designed for fixed installation environments requiring fire safety and electromagnetic compatibility (EMC). This cable does not release toxic or corrosive gases in a fire and is suitable for emergency lighting, smoke extraction systems, and alarm systems in public places.

Z1C4Z1-K Cable Construction

Conductor
Copper, class 5 (flexible)
Insulation
Polyolefin LSZH
Screen
Overlapping aluminium-polyester tape screen with 100%
coverage + tinned copper drain wire
Outer sheath
Polyolefin LSZH

Z1C4Z1-K Cable Characteristics

Voltage Rating
0,6/1kV
Thermal performance
Maximum service temperature: 70ºC
Maximum short-circuittemperature: 160ºC
Minimum service temperature: -40ºC
Minimum bending radius
x5 cable diameter

Z1C4Z1-K Cable Specifications

Cross-section (mm²)	Diameter (mm)	Weight (kg/km)	Open air (A)	Buried (A)	Voltage drop (V/A·km)
2 x 1	7,8	85	16,5	16	46,7
2 x 1,5	8,6	105	22	22	31,8
2 x 2,5	9,9	135	30	29	19,1
2 x 4	10,8	170	40	37	11,8
2 x 6	11,5	210	51	46	7,9
3 G 1	8,5	100	16	16,5	46,7
3 G 1,5	9,4	130	22	22	31,8
3 G 2,5	10,3	165	30	29	19,1
3 G 4	11,5	215	40	37	11,8
3 G 6	12,6	280	51	46	7,9
3 x 10	16,4	460	70	60	4,6
3 x 16	18,4	640	94	78	2,9
3 x 25	22,4	970	119	99	1,9
3 x 35	25,2	1.275	148	119	1,3
3 x 50	29,5	1.76	180	140	0,92
4 G 1	9,1	120	14	14	40,4
4 G 1,5	10,2	155	18,5	18	27,6
4 G 2,5	11,0	200	25	24	16,5
4 G 4	12,5	270	34	30	10,3
4 G 6	13,4	350	43	38	6,8
4 G 10	18,0	585	60	50	4,0
4 G 16	20,7	835	80	64	2,5
4 G 70	36,1	3.07	196	143	0,56
5 G 1	9,9	145	14	14	40,4
5 G 1,5	11,0	180	18,5	18	27,6
5 G 2,5	12,0	240	25	24	16,5
5 G 4	13,7	325	34	30	10,3
5 G 6	15,2	425	43	38	6,8
5 G 10	19,8	720	60	50	4,0
5 G 16	23,0	1.035	80	64	2,5
5 G 25	27,2	1.55	101	82	1,6
5 G 35	29,8	2.045	126	98	1,2
5 G 50	36,5	2.86	153	116	0,80
7 G 1	10,4	175	14	14	40,4
7 G 1,5	11,8	230	18,5	18	27,6
7 G 2,5	13,2	300	25	24	16,5
8 G 1,5	12,8	260	18,5	18	27,6
8 G 2,5	14,2	345	25	24	16,5
10 G 1	12,0	225	14	14	40,4
10 G 1,5	13,8	305	18,5	18	27,6
10 G 2,5	16,7	425	25	24	16,5
12 G 1	12,6	260	14	14	40,4
12 G 1,5	14,6	350	18,5	18	27,6
12 G 2,5	16,1	475	25	24	16,5
14 G 1	13,5	295	14	14	40,4
14 G 1,5	15,5	395	18,5	18	27,6
14 G 2,5	18,0	550	25	24	16,5
16 G 1,5	16,8	445	18,5	18	27,6
16 G 2,5	19,1	630	25	24	16,5
18 G 1	15,5	370	14	14	40,4
19 G 1,5	17,2	500	18,5	18	27,6
19 G 2,5	19,6	710	25	24	16,5
24 G 1,5	19,3	620	18,5	18	27,6
24 G 2,5	21,8	880	25	24	16,5
25 G 1	18,4	500	14	14	40,4
27 G 1,5	21,1	695	18,5	18	27,6
27 G 2,5	23,1	975	25	24	16,5
37 G 1,5	22,8	910	18,5	18	27,6
37 G 2,5	27,1	1.32	25	24	16,5
