H05VVH6-F & H07VVH6-F Cables

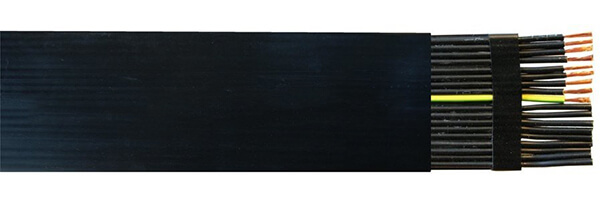

H05VVH6-F and H07VVH6-F Cable Description

H05VVH6-F is rated for 300/500V, while H07VVH6-F is larger, rated for 450/750V, and has a core cross-sectional area of 1.5mm² or more. They feature polyvinyl chloride (PVC) insulation and an outer sheath, and their flat, parallel core structure allows for frequent bending and movement within the same plane.

Suitable for indoor and panoramic elevators, with free-hanging lengths up to 45 meters. They can also be used in cable management trolley systems to provide power and control signals to lifting equipment, handling systems, machine tools, etc.

H05VVH6-F and H07VVH6-F Cable Construction

Conductor
Class 5 flexible copper conductor
Insulation
PVC (Polyvinyl Chloride)
Outer Sheath
PVC (Polyvinyl Chloride)

H05VVH6-F and H07VVH6-F Cable Characteristics

Voltage Rating
300/500V
450/750V
Temperature Rating
Flexed: -20°C to +70°C
Minimum Bending Radius
Flexed: 8 x overall diameter

H05VVH6-F and H07VVH6-F Cable Specifications

No. of Cores x Nominal Cross Sectional Area # x mm²	Nominal Conductor Diameter mm	Nominal Thickness of Insulation mm	Nominal Overall Diameter mm	Nominal Copper Weight kg/km	Nominal Weight kg/km
H05VVH6-F
4 x 0.75	1.2	0.6	4.2 x 12.6	29	90
8 x 0.75	1.2	0.6	4.2 x 23.2	58	175
12 x 0.75	1.2	0.6	4.2 x 33.8	86	260
18 x 0.75	1.2	0.6	4.2 x 50.2	130	380
24 x 0.75	1.2	0.6	4.2 x 65.6	172	490
4 x 1.00	1.4	0.7	4.4 x 13.4	38	105
5 x 1.00	1.4	0.7	4.4 x 15.5	48	120
8 x 1.00	1.4	0.7	4.4 x 24.8	77	205
12 x 1.00	1.4	0.7	4.4 x 36.2	115	300
18 x 1.00	1.4	0.7	4.4 x 53.8	208	450
24 x 1.00	1.4	0.7	4.4 x 70.4	230	590
H07VVH6-F
4 x 1.5	1.5	0.8	5.1 x 14.8	130	58
5 x 1.5	1.5	0.8	5.1 x 17.7	158	72
7 x 1.5	1.5	0.8	5.1 x 25.2	223	101
8 x 1.5	1.5	0.8	5.1 x 27.3	245	115
10 x 1.5	1.5	0.8	5.1 x 33.9	304	144
12 x 1.5	1.5	0.8	5.1 x 40.5	365	173
18 x 1.5	1.5	0.8	6.1 x 61.4	628	259
24 x 1.5	1.5	0.8	5.1 x 83.0	820	346
4 x 2.5	1.9	0.8	5.8 x 18.1	192	96
5 x 2.5	1.9	0.8	5.8 x 21.6	248	120
7 x 2.5	1.9	0.8	5.8 x 31.7	336	168
8 x 2.5	1.9	0.8	5.8 x 33.7	368	192
10 x 2.5	1.9	0.8	5.8 x 42.6	515	240
12 x 2.5	1.9	0.8	5.8 x 49.5	545	288
24 x 2.5	1.9	0.8	5.8 x 102.0	1220	480
4 x 4	2.5	0.8	6.7 x 20.1	154	271
5 x 4	2.5	0.8	6.9 x 26.0	192	280
7 x 4	2.5	0.8	6.7 x 35.5	269	475
4 x 6	3	0.8	7.2 x 22.4	230	359
5 x 6	3	0.8	7.4 x 31.0	288	530
7 x 6	3	0.8	7.4 x 43.0	403	750
4 x 10	4	1	9.2 x 28.7	384	707
5 x 10	4	1	11.0 x 37.5	480	1120
4 x 16	5.6	1	11.1 x 35.1	614	838
5 x 16	5.6	1	11.2 x 43.5	768	1180
