NGFLGÖU and NGFLCGÖU Cable Description
NGFLGÖU and NGFLCGÖU are typically rated at 300/500 volts and feature a durable neoprene jacket that makes them resistant to oils, fats, acids, alkalis, and weather conditions. The cables feature ultra-fine stranded copper conductors that are highly flexible and can withstand repeated bending and movement.
The “C” in NGFLCGÖU indicates a shielded cable that provides electromagnetic compatibility (EMC) via the copper braid.
NGFLGÖU and NGFLCGÖU Cable Construction
| NGFLGÖU Flat Wire Festoon Cable | NGFLCGÖU Flat Festoon Cable | |
|---|---|---|
| VOLTAGE | 300/500V | |
| CONDUCTOR | Class 6 extra fine stranded Copper | to 25mm²: Class 6 extra fine stranded Copper over 25mm²: Class 5 flexible stranded Copper |
| INSULATION | EPR (Ethylene Propylene Rubber) | |
| SCREEN | - | TCWB (Tinned Copper Wire Braid) |
| OUTER SHEATH | CP Rubber (Chloroprene) | CR Rubber (Chloroprene Rubber) |
NGFLGÖU and NGFLCGÖU Cable Characteristics
| NGFLGÖU Flat Wire Festoon Cable | NGFLCGÖU Flat Festoon Cable | |
|---|---|---|
| Temperature Rating | Fixed: -40ºC to +90ºC Flexed: -35ºC to +90ºC | Flexed: -50°C to +90°C Mobile: -30°C to +90°C Maximum Conductor Operating Temperature: 90°C Maximum Conductor Short-Circuit Temperature: 250°C |
| Minimum Bending Radius | Fixed: 5 x overall diameter Moving: 10 x overall diameter | Fixed: 5 x overall diameter Moving: 10 x overall diameter |
| Maximum Tensile Load | - | 15N/mm for static |
| Travel | - | Festoon Systems: up to 180m/min Gantry (reeling): No application |
NGFLGÖU and NGFLCGÖU Cable Applications
- Overhead cranes and gantries
- Floor conveyor systems
- Elevators and lift systems
- Material handling equipment
- Machine tooling
- Heavy-duty container cranes
- Ship-to-shore marine loading

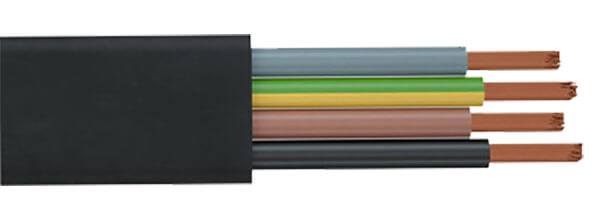

- NGFLGÖU Flat Wire Festoon Cable

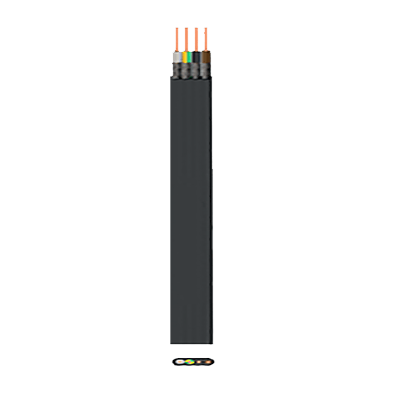

- NGFLCGÖU Flat Festoon Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL WIDTH OF CABLE mm | NOMINAL HEIGHT OF CABLE mm | NOMINAL WEIGHT kg/km | TENSILE STRENGTH N |
|---|---|---|---|---|---|
| 4 | 1.5 | 17.5 | 6.2 | 200 | 90 |
| 4 | 2.5 | 21.1 | 7.5 | 280 | 150 |
| 4 | 4 | 26.1 | 9.1 | 410 | 240 |
| 4 | 6 | 29.1 | 9.5 | 600 | 360 |
| 4 | 10 | 33.1 | 11.1 | 800 | 600 |
| 4 | 16 | 37.8 | 12.9 | 1150 | 960 |
| 4 | 25 | 49.5 | 15.1 | 1700 | 1500 |
| 4 | 35 | 54.9 | 17.1 | 2200 | 2100 |
| 4 | 50 | 62.8 | 18.9 | 3000 | 1500 |
| 4 | 70 | 71.2 | 22.1 | 3910 | 4200 |
| 4 | 95 | 79.8 | 24.8 | 5300 | 5700 |
| 4 | 120 | 85.8 | 27.2 | 6400 | 7200 |
| 5 | 1.5 | 21.5 | 6.2 | 240 | 112 |
| 5 | 2.5 | 27.1 | 7.5 | 332 | 187 |
| 5 | 4 | 32.1 | 9.1 | 560 | 300 |
| 5 | 6 | 35.1 | 9.5 | 650 | 450 |
| 5 | 10 | 44.1 | 11.1 | 1135 | 750 |
| 5 | 16 | 49.8 | 12.9 | 1450 | 1200 |
| 5 | 25 | 59.8 | 16.1 | 2200 | 1875 |
| 7 | 1.5 | 29.1 | 6.2 | 360 | 157 |
| 7 | 2.5 | 34.9 | 7.5 | 520 | 262 |
| 7 | 4 | 41.9 | 9.1 | 700 | 420 |
| 7 | 6 | 42.1 | 9.5 | 850 | 630 |
| 7 | 25 | 79.7 | 16.1 | 2930 | 2625 |
| 7 | 35 | 88.2 | 17.1 | 3820 | 3675 |
| 8 | 1.5 | 31.5 | 6.2 | 370 | 180 |
| 8 | 2.5 | 39.1 | 7.5 | 550 | 300 |
| 10 | 1.5 | 39.9 | 6.5 | 460 | 225 |
| 10 | 2.5 | 47.9 | 8.1 | 680 | 375 |
| 12 | 1.5 | 47.1 | 6.5 | 620 | 270 |
| 12 | 2.5 | 56.1 | 8.1 | 800 | 450 |
| 16 | 1.5 | 4.2 | 6.5 | 900 | 360 |
| 24 | 1.5 | 55.1 | 12.5 | 1300 | 540 |
| 24 | 2.5 | 68.2 | 16.2 | 1480 | 900 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|
| Minimum | Maximum | |||
| 4 | 1.5 | 6.2 x 17.8 | 7.2 x 20.4 | 220 |
| 4 | 2.5 | 7.2 x 21.6 | 8.3 x 24.8 | 320 |
| 4 | 4 | 10.1 x 27.8 | 11.6 x 31.9 | 505 |
| 4 | 6 | 10.1 x 29.8 | 11.6 x 34.1 | 605 |
| 4 | 10 | 11.0 x 34.6 | 12.7 x 39.6 | 840 |
| 4 | 16 | 13.0 x 39.8 | 14.9 x 45.7 | 1180 |
| 4 | 25 | 14.4 x 45.1 | 16.5 x 51.7 | 1605 |
| 4 | 35 | 16.3 x 52.8 | 18.7 x 60.5 | 2520 |
| 4 | 50 | 19.1 x 61.8 | 21.7 x 66.0 | 2860 |
| 4 | 70 | 20.8 x 71.8 | 24.75 x 75.8 | 4790 |
| 4 | 95 | 23.25 x 80.2 | 27.25 x 84.0 | 5950 |
| 4 | 120 | 28.05 x 91.8 | 31.05 x 96.8 | 7750 |
| 5 | 1.5 | 5.95 x 26.55 | 7.95 x 28.55 | 440 |
| 5 | 2.5 | 7.25 x 30.65 | 9.25 x 32.65 | 590 |
| 5 | 4 | 8.55 x 34.75 | 10.55 x 36.75 | 770 |
| 5 | 6 | 9.15 x 37.75 | 11.15 x 39.75 | 920 |
| 5 | 10 | 10.65 x 45.25 | 12.65 x 47.25 | 1290 |
| 5 | 25 | 14.85 x 61.45 | 16.85 x 63.45 | 2490 |
| 7 | 1.5 | 5.95 x 34.85 | 7.95 x 36.85 | 570 |
| 7 | 2.5 | 7.25 x 40.35 | 9.25 x 42.35 | 790 |
| 7 | 4 | 8.55 x 45.85 | 10.55 x 47.85 | 1010 |
| 7 | 6 | 9.15 x 50.05 | 11.15 x 52.05 | 1220 |
| 7 | 10 | 10.0 x 57.6 | 12.0 x 59.6 | 1550 |
| 7 | 25 | 15.0 x 82.8 | 17.0 x 84.8 | 3350 |
| 7 | 35 | 16.3 x 94.8 | 18.7 x 99.8 | 4500 |
| 8 | 1.5 | 7.2 x 34.6 | 8.3 x 39.6 | 470 |
| 8 | 2.5 | 7.25 x 43.2 | 9.25 x 45.2 | 830 |
| 10 | 1.5 | 7.55 x 47.9 | 8.55 x 49.9 | 810 |
| 12 | 1.5 | 8.1 x 52.0 | 8.0 x 54.0 | 796 |
| 12 | 2.5 | 7.75 x 65.1 | 9.6 x 69.0 | 1020 |
| 24 | 1.5 | 8.15 x 112.6 | 9.15 x 114.6 | 1930 |
| 24 | 2.5 | 9.05 x 130.6 | 11.05 x 132.6 | 2760 |
