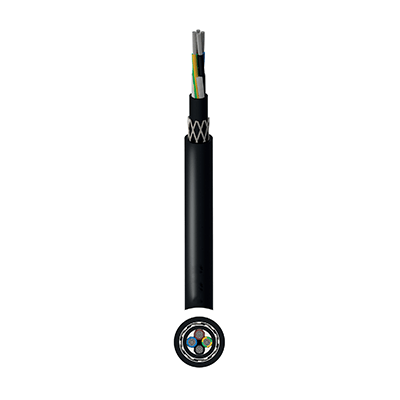

PUR-HF Lift Trailing Cable

PUR-HF Lift Trailing Cable Description

The rated voltage of PUR-HF Lift Trailing Cable is usually 0.6/1kV, and the conductor is usually made of stranded ordinary annealed copper, which has good conductivity and flexibility.

“PUR-HF” refers to halogen-free (HF) flame-retardant polyurethane (PUR) sheath. The polyurethane sheath has excellent abrasion resistance, oil resistance, chemical resistance and UV radiation resistance. The halogen-free and flame-retardant properties enhance its safety and durability.

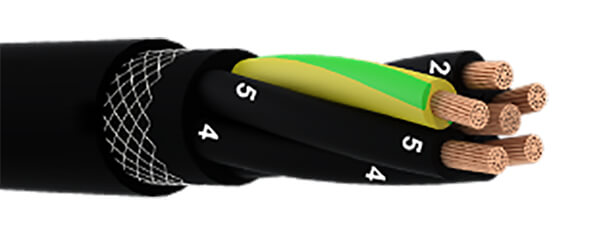

PUR-HF Lift Trailing Cable Construction

• CONDUCTOR
• Class 5 or Class 6 flexible stranded Copper
• INSULATION
• XLPE (Cross-linked Polyethylene)
• LAY UP
• Central strength member, cores in concentric layers
• INNER SHEATH
• PUR-HF (Polyurethane Halogen Free Flame Retardant)
• BRAID
• Anti-twist aramid yarns
• OUTER SHEATH
• PUR-HF (Polyurethane Halogen Free Flame Retardant)

PUR-HF Lift Trailing Cable Characteristics

• Voltage Rating (Uo/U)
• 0.6/1kV
• Temperature Rating
• Fixed installation: -50°C to +90°C
• Mobile operation: -40°C to +90°C
• Minimum Bending Radius
• Fixed Application: 6 x Overall Diameter
• Mobile Applications: 8 x Overall Diameter
• Maximum Tensile Load
• 30 N/mm²
• Maximum Torsion
• ±25º/m
• Travel Speed
• Festoon Systems: Up to 200m/min
• Reeling: Up to 200m/min horiz. / Up to 150m/min vertical
