EV DC Connection Cable Description
EV DC connection cable features a robust construction with copper conductors, flexible hybrid insulation, and a PVC sheath. Unlike slower AC charging, it uses connectors such as CCS or CHAdeMO to deliver a large amount of DC power, handling high current and voltage (up to 1.2kV AC, 1.8kV DC). It is commonly used in highway service areas and public charging points.
We also stock other types of automotive cables to meet the charging needs of standard home/industrial equipment and public locations, including trickle charging, fast charging, and ultra-fast charging. For more products, please visit our EV & PHEV Automotive Cable page.

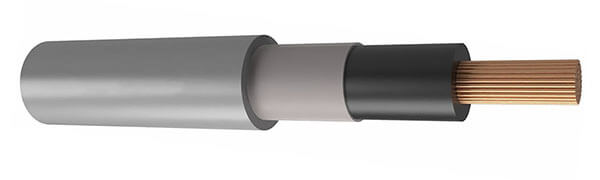

EV DC Connection Cable Construction
- Conductor
- Class 5 Flexible Stranded Copper
- Insulation
- Elastomeric Mixture
- Filler
- Non-Fibrous, Non Hygroscopic
- Outer Sheath
- PVC (Polyvinyl Chloride)
EV DC Connection Cable Characteristics
- Voltage Rating
- AC: 0.6/1 (1.2)kV
- DC: 1.8/1.8 (1.8)kV
- Temperature Rating
- Operating: -15ºC to +90ºC
- Minimum Installation Temperature: 0ºC
- Maximum Short Circuit Temperature:
- – 240 mm²: +250ºC
- – Above 240 mm²: +220ºC
- Minimum Bending Radius
- Power Flexible Cables: 4 x Overall Diameter
- Control Flexible Cables: 6 x Overall Diameter
EV DC Connection Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NOMINAL INSULATION THICKNESS mm | MAXIMUM OUTER DIAMETER mm | NOMINAL WEIGHT kg/km | MAXIMUM PULLING STRESS N/ mm² |
|---|---|---|---|---|---|---|
| 1 | 4 | 2.6 | 0.7 | 9.3 | 82 | 50 |
| 1 | 6 | 3.4 | 0.7 | 9.9 | 101 | 50 |
| 1 | 10 | 4.4 | 0.7 | 10.9 | 152 | 50 |
| 1 | 16 | 5.7 | 0.7 | 11.4 | 211 | 50 |
| 1 | 25 | 6.9 | 0.9 | 13.2 | 301 | 50 |
| 1 | 35 | 8.1 | 0.9 | 14.6 | 396 | 50 |
| 1 | 50 | 9.8 | 1.0 | 16.4 | 556 | 50 |
| 1 | 70 | 11.6 | 1.1 | 17.3 | 761 | 50 |
| 1 | 95 | 13.3 | 1.1 | 20.4 | 991 | 50 |
| 1 | 120 | 15.1 | 1.2 | 22.4 | 1219 | 50 |
| 1 | 150 | 16.8 | 1.4 | 24.8 | 1517 | 50 |
| 1 | 185 | 18.6 | 1.6 | 27.2 | 1821 | 50 |
| 1 | 240 | 21.4 | 1.7 | 30.4 | 2366 | 50 |
| 1 | 300 | 23.9 | 1.8 | 33.0 | 2947 | 50 |
| 1 | 400 | 27,5 | 2.0 | 37.7 | 3870 | 50 |
