EV ProInstall Cable Description
EV ProInstall cable integrates a power conductor and a shielded Category 6A data cable for CT (current transformer) flow monitoring. It not only meets the current power and flow monitoring needs of EV charging units, but also provides a future-proof solution for future technology upgrades.
EV ProInstall Cable Construction
| EV ProInstall Cat6a LSZH Cable | EV ProInstall Cat6a SWA LSZH Cable | |
|---|---|---|
| CONDUCTOR - POWER | Class 5 flexible stranded Copper | Power: Class 5 flexible stranded Copper |
| CONDUCTOR - DATA | Class 1 solid Copper (AWG 23) | Data: Class 1 solid Copper (AWG 23) |
| INSULATION - POWER | LSZH (Low Smoke Zero Halogen) | Power: LSZH (Low Smoke Zero Halogen) |
| INSULATION - DATA | HDPE (High Density Polyethylene) | Data: HDPE (High Density Polyethylene) |
| SCREEN - DATA | Individual & Collective Al/PET (Aluminium/Polyester Tape) with tinned copper drain wire | |
| SHEATH - DATA | LSZH (Low Smoke Zero Halogen) | |
| TAPE | Screening tape and interstitial fillers | - |
| INNER SHEATH | - | LSZH (Low Smoke Zero Halogen) |
| ARMOUR | - | SWA (Steel Wire Armour) |
| OUTER SHEATH | LSZH (Low Smoke Zero Halogen) | |
EV ProInstall Cable Characteristics
| EV ProInstall Cat6a LSZH Cable | EV ProInstall Cat6a SWA LSZH Cable | |
|---|---|---|
| Voltage | 0.6/1kV | Power: 0.6/1kV Data: 0.6/1kV |
| Test Voltage | 5000V | Core to Core: 5000V Core to Screen: 2000V |
| Temperature Rating | Fixed: -30°C to +80°C | During Installation: -5°C to +50°C Fixed Installation: -30°C to +80°C |
| Minimum Bending Radius | 6 x outer diameter | 14 x outer diameter |
EV ProInstall Cable Advantages
- Flexible Class 5 Power Cores, offering enhanced flexibility of 6xOD – especially helpful when terminating into tight spaces.
- 600V-rated Cat6a data cable that can be run in the same containment as the power cores.
- UV stability for installation externally without additional protection.
- Rugged LSZH sheath offering abrasion resistance to EN 50289-3-7 for challenging installation environments.

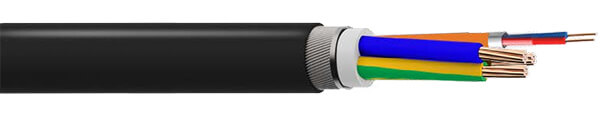

- EV ProInstall Cat6a LSZH Cable
- EV ProInstall Cat6a SWA LSZH Cable
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA POWER CORES mm² | NOMINAL AWG SIZE CAT6A DATA AWG | NOMINAL DIAMETER CAT6A mm | NOMINAL THICKNESS INSULATION (POWER) mm | NOMINAL OVERALL DIAMETER mm | NOMINAL PULLING TENSION N/mm² | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 3 | 6 | 23 | 6.9 | 1.8 | 16.1 | 899 | 560 |
| 5 | 6 | 23 | 6.9 | 1.8 | 19.1 | 1434 | 770 |
| NUMBER POWER CORES | NOMINAL CROSS SECTIONAL AREA POWER CORES mm² | NOMINAL AWG SIZE DATA PAIR AWG | NOMINAL THICKNESS INSULATION mm | NOMINAL DIAMTER mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | MAXIMUM PULLING TENSION N/mm² |
||
|---|---|---|---|---|---|---|---|---|---|
| Power | Data | Over Bedding | Over Armour | ||||||
| 3 | 6 | 23 | 3.2 | 7.2 | 16 | 18.5 | 21.7 | 1002 | 568 |
| 5 | 6 | 23 | 3.2 | 7.2 | 19.1 | 22.3 | 25.8 | 1479 | 909 |
