EVC DC 1500V

EVC DC 1500V Description

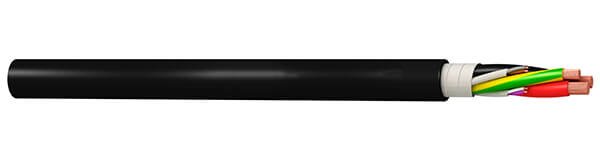

EVC DC 1500V cable features stranded copper conductors and a robust halogen-free PUR or compound insulation layer. It offers excellent resistance to oil, grass, dust, and water, can withstand high-intensity mechanical stress, and exhibits good resistance to cold and other weather conditions. This cable is suitable for public fast charging stations, commercial fleet parking lots, or residential wall-mounted charging stations.

EVC DC 1500V Construction

Conductor
Copper, class 5 (flexible)
Insulation
Cross-linked halogen free compound
Separator
Non-woven tape helically applied over the grouping
Outer sheath
Polyurethane elastomer

EVC DC 1500V Characteristics

Voltage Rating
1500V
Thermal performance
Maximum conductor temperature: 90ºC
Minimum installation and handling temperature: -35 °C
Maximum short-circuit temperature: 250ºC (max. 5 s)
Minimum bending radius
5x cable diameter

EVC DC 1500V Specifications

Cross-section (mm²)	Diameter (mm)	Weight (kg/km)
2x50 +1G25 + 3x2x0,75	28,5	1.485
2x70 + 1G35 + 3x2x0,75	32,6	2.1
