FHL2G and FHLR2GCB2G Cable Description
FHL2G and FHLR2GCB2G cables are rated at 0.6/1 kV and feature finely stranded, flexible copper conductors with silicone rubber insulation and jacketing. They offer a wide temperature range, up to +180°C. The minimum bend radius for static installation is three times the cable’s outer diameter, and for flexible installation, it is six times its outer diameter.

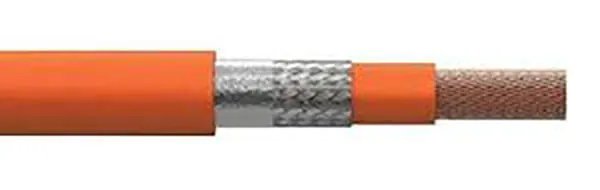

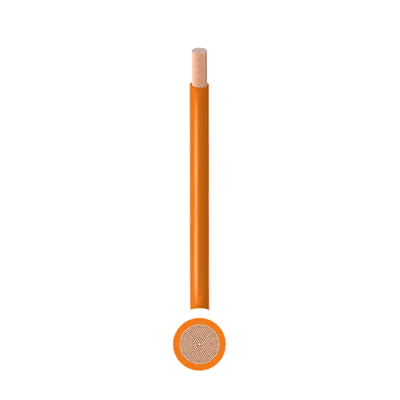

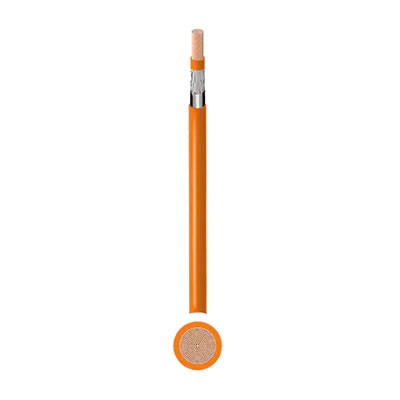

FHL2G cable is unshielded, while the FHLR2GCB2G cable features a metal braided shield (for EMC shielding) and aluminum foil/polyester tape (Al/PET) armor.
FHL2G and FHLR2GCB2G Cable Construction
| FHL2G Cable | FHLR2GCB2G Cable | |
|---|---|---|
| CONDUCTOR | Class 6 fine flexible stranded Copper | |
| INSULATION | SiR (Silicone Rubber) | |
| BRAID | - | Tinned Copper Wires |
| SCREEN | - | Al/PET (Aluminium Foil) |
| OUTER SHEATH | SiR (Silicone Rubber) | |
FHL2G and FHLR2GCB2G Cable Characteristics
| FHL2G Cable | FHLR2GCB2G Cable | |
|---|---|---|
| Voltage Rating | 0.6/1kV | |
| Test Voltage | spark test: 8kV 5 minutes: 5kV |
|
| Temperature Rating | Operating temperature: -40ºC to +180ºC (3000 hours) Short term ageing: +205 °C (240 hours) |
|
| Minimum Bending Radius | Static installation: 2 x overall diameter Dynamic Installation: 4 x overall diameter | Static installation: 3 x overall diameter Dynamic Installation: 6 x overall diameter |
- FHL2G Cable
- FHLR2GCB2G Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | INSULATION THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT g/m |
|---|---|---|---|---|---|
| 1 | 35 | 8.5 | 1.04 | 11 | 350 |
| 1 | 50 | 10.5 | 1.2 | 13.2 | 507 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | INSULATION THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT g/m |
|---|---|---|---|---|---|
| 1 | 25 | 7 | 0.64 | 12.2 | 345 |
| 1 | 35 | 8.5 | 0.64 | 14.4 | 485 |
| 1 | 50 | 10 | 0.71 | 15.8 | 630 |
| 1 | 70 | 12.5 | 0.8 | 18.2 | 880 |
| 1 | 95 | 14.8 | 0.9 | 20.9 | 1150 |
