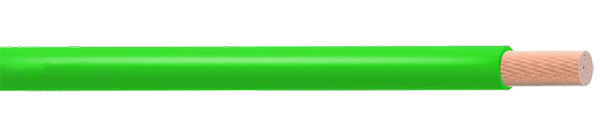

FL Automotive Cable Description
FL standard-wall automotive cables are available in a variety of insulation materials, including polyvinyl chloride (PVC), polyamide, silicone rubber, cross-linked polyethylene (XLPE), and EFTE (ethylene tetrafluoroethylene). The insulation material determines the cable’s resistance to oil, fuel, and brake fluid, as well as its ability to withstand high temperatures (such as FL2G cables) and low temperatures (such as FLYK cables).
FL automotive cables are designed for starter motors, charging systems, lighting, signaling, and instrument panel circuits. They can be used in both electric vehicles (EVs) and conventional gasoline and diesel vehicles.
FL Automotive Cable Construction
| FLY Cable | FLYY Cable | FLYW Cable | FLYK Cable | FL2G Cable | FL2X Cable | FL4G Cable | |
|---|---|---|---|---|---|---|---|
| Conductor | Cu-ETP1 Bare Copper | ||||||
| Insulation | PVC (Polyvinyl Chloride) | Silicone rubber | XLPE (Cross Linked Polyethylene) | EVA (Cross-linked ethylene/vinylacetate) | |||
| FLYWK Cable | FLYOY Cable | FLYKOY Cable | FL91Y Cable | FL11Y Cable | FLALRYW Cable | FLALRY Cable | |
|---|---|---|---|---|---|---|---|
| Conductor | Bare Copper ETP1 | to 1mm²: Aluminium Alloy ≥1.25mm²: Aluminium 99.7% |
|||||
| Insulation | PVC (Polyvinyl Chloride) | TPE-O (Thermoplastic Elastomer) | TPE-U (Thermoplastic Elastomer) | PVC (Polyvinyl chloride) | |||
FL Automotive Cable Characteristics
| FLY Cable | FLYY Cable | FLYW Cable | FLYK Cable | FL2G Cable | FL2X Cable | FL4G Cable | |
|---|---|---|---|---|---|---|---|
| Temperature Rating | -40°C to +105°C | -40°C to +125°C | -50°C to +105°C | -40°C to +200°C | -40°C to +125°C | -40°C to +140°C | |
| FLYWK Cable | FLYOY Cable | FLYKOY Cable | FL91Y Cable | FL11Y Cable | FLALRYW Cable | FLALRY Cable | |
|---|---|---|---|---|---|---|---|
| Temperature Rating | -50°C to +105°C | -40°C to +105°C | -40°C to +125°C | -40°C to +110°C | -40°C to +125°C | -40°C to +105°C | |
FL Automotive Cable Code according to DIN 72551
- FL: Automotive Cable
- Y: Soft-PVC (plasticised)
- YW: Soft-PVC (plasticised) Heat resistant and Hot Pressure resistant
- YK: Soft-PVC (plasticised) Cold resistant
- K: Copper wire spiral screen
- A: Symmetrical conductor structure according to ISO 6722-1
- B: Asymmetric conductor structure according to ISO 6722-1
- 2X: Cross-linked Polyethylene (XLPE)
- 2G: Silicone Rubber (SiR)
- 4G: Ethylene Vinyl Acetate (EVA)
- 11Y: Thermoplastic Polyolefin (TPE-O)
- 91Y: Thermoplastic Polyurethane Elastomer (TPE-U)
- FLY Cable

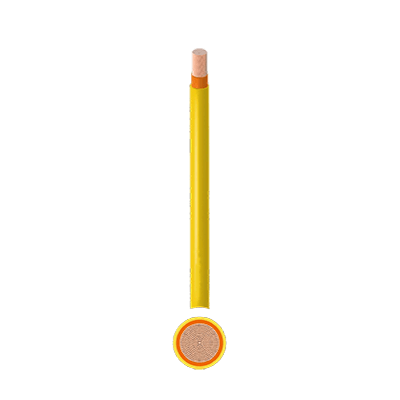

- FLYY Cable

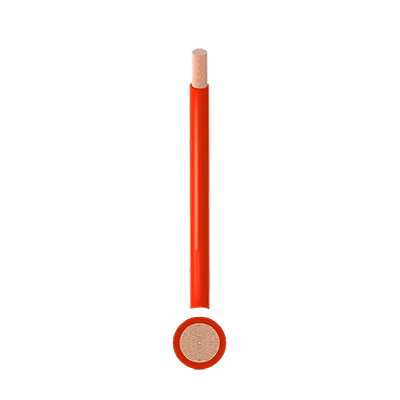

- FLYW Cable

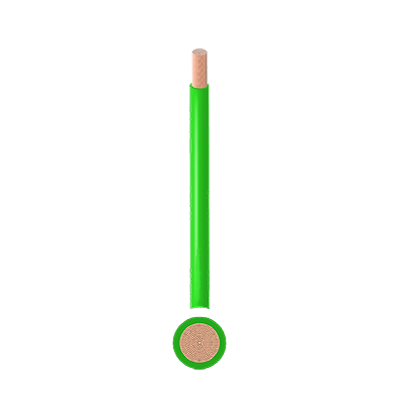

- FLYK Cable

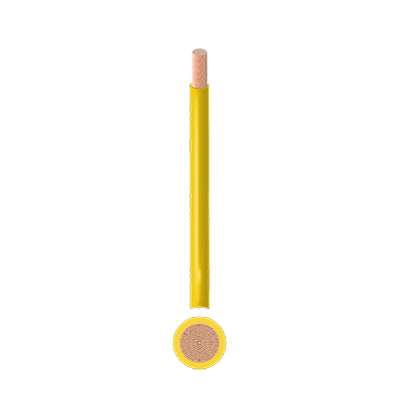

- FL2G Cable
- FL2X Cable
- FL4G Cable

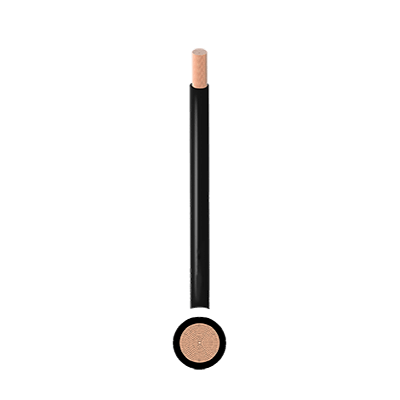

- FLYWK Cable
- FLYOY Cable

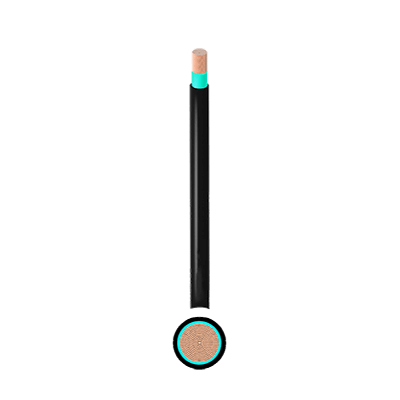

- FLYKOY Cable
- FL91Y Cable
- FL11Y Cable
- FLALRYW Cable

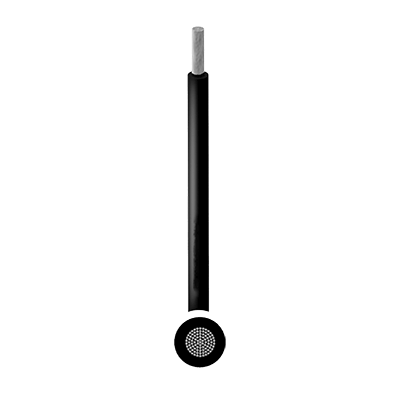

- FLALRY Cable
| NUMBER OF CORES | NOMINAL CROSS- SECTIONAL AREA mm² | NOMINAL NO.AND DIAMETER WIRES No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL THICKNESS INSULATION WALL mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.5 | 16/0.21 | 1 | 37.1 | 0.48 | 2 | 2.3 | 8 |
| 1 | 0.75 | 24/0.21 | 1.2 | 24.7 | 0.48 | 2.2 | 2.5 | 12 |
| 1 | 1 | 32/0.21 | 1.35 | 18.5 | 0.48 | 2.4 | 2.7 | 15 |
| 1 | 1.5 | 30/0.26 | 1.7 | 12.7 | 0.48 | 2.7 | 3 | 20 |
| 1 | 2 | 40/0.26 | 2 | 9.42 | 0.6 | 2.9 | 3.2 | 26 |
| 1 | 2.5 | 50/0.26 | 2.2 | 7.6 | 0.7 | 3.3 | 3.7 | 32 |
| 1 | 3 | 60/0.26 | 2.5 | 6 | 0.7 | 3.5 | 3.9 | 37 |
| 1 | 4 | 56/0.31 | 2.75 | 4.71 | 0.8 | 4 | 4.4 | 49 |
| 1 | 6 | 84/0.31 | 3.3 | 3.14 | 0.8 | 4.6 | 5 | 68 |
| 1 | 10 | 80/0.41 | 4.5 | 1.82 | 0.8 | 6 | 6.5 | 117 |
| 1 | 16 | 126/0.41 | 6.3 | 1.16 | 0.8 | 7.5 | 8.3 | 193 |
| 1 | 25 | 196/0.41 | 7.8 | 0.74 | 1.04 | 9.5 | 10.4 | 274 |
| 1 | 35 | 276/0.41 | 9 | 0.53 | 1.04 | 10.6 | 11.6 | 397 |
| 1 | 50 | 400/0.41 | 10.5 | 0.37 | 1.2 | 12.9 | 13.5 | 547 |
| 1 | 70 | 555/0.41 | 12.5 | 0.26 | 1.2 | 14.8 | 15.5 | 769 |
| 1 | 95 | 740/0.41 | 14.8 | 0.2 | 1.28 | 17 | 18 | 990 |
| 1 | 120 | 960/0.41 | 16.5 | 0.15 | 1.6 | 18.7 | 19.7 | 1250 |
| NUMBER OF CORES | NOMINAL CROSS- SECTION MM | NOMINAL NO.AND DIA. OF WIRES NO./MM | NOMINAL CONDUCTOR DIAMETER MAX MM | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL THICKNESS INSULATION WALL MM | NOMINAL DIAMETER OF CORE INSULATION MM | NOMINAL THICKNESS SHEATH MM | NOMINAL OVERALL DIAMETER MIN MM | NOMINAL OVERALL DIAMETER MAX MM | NOMINAL WEIGHT KG/KM |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 0.5 | 16/0.21 | 1 | 37.1 | 0.6 | 2.1 | 0.4 | 2.7 | 3.1 | 14 |
| 1 | 0.75 | 24/0.21 | 1.2 | 24.7 | 0.6 | 2.3 | 0.4 | 3 | 3.3 | 17 |
| 1 | 1 | 32/0.21 | 1.35 | 18.5 | 0.6 | 2.5 | 0.4 | 3.2 | 3.6 | 20 |
| 1 | 1.5 | 30/0.26 | 1.7 | 12.7 | 0.6 | 2.8 | 0.5 | 3.6 | 4.1 | 28 |
| 1 | 2 | 40/0.26 | 2 | 9.42 | 0.6 | 3 | 0.5 | 3.9 | 4.3 | 33 |
| 1 | 2.5 | 50/0.26 | 2.2 | 7.6 | 0.7 | 3.5 | 0.5 | 4.3 | 4.8 | 41 |
| NUMBER OF CORES | NOMINAL CROSS- SECTIONAL AREA mm² | NOMINAL NO.AND DIAMETER WIRES No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL THICKNESS INSULATION WALL mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.5 | 16/0.20 | 1 | 37.1 | 0.48 | 2 | 2.3 | 8 |
| 1 | 0.75 | 24/0.20 | 1.2 | 24.7 | 0.48 | 2.2 | 2.5 | 11 |
| 1 | 1 | 32/0.20 | 1.35 | 18.5 | 0.48 | 2.4 | 2.7 | 15 |
| 1 | 1.5 | 30/0.25 | 1.7 | 12.7 | 0.48 | 2.7 | 3 | 20 |
| 1 | 2.5 | 50/0.25 | 2.2 | 7.6 | 0.56 | 3.3 | 3.6 | 32 |
| 1 | 4 | 56/0.31 | 2.75 | 4.71 | 0.64 | 4 | 4.4 | 48 |
| 1 | 6 | 84/0.31 | 3.3 | 3.14 | 0.64 | 4.6 | 5 | 68 |
| 1 | 10 | 80/0.40 | 4.5 | 1.82 | 0.8 | 6 | 6.5 | 117 |
| 1 | 16 | 126/0.40 | 5.2 | 1.16 | 0.8 | 8 | 8.3 | 193 |
| 1 | 25 | 196/0.40 | 6.5 | 0.7 | 1.04 | 10.1 | 10.4 | 274 |
| 1 | 35 | 276/0.40 | 7.7 | 0.5 | 1.04 | 11.3 | 11.6 | 397 |
| 1 | 50 | 396/0.40 | 9.2 | 0.3 | 1.2 | 13.2 | 13.5 | 547 |
| 1 | 70 | 556/0.40 | 11 | 0.2 | 1.2 | 15.2 | 15.5 | 769 |
| 1 | 95 | 741/0.40 | 14.8 | 0.2 | 1.28 | 17 | 18 | 990 |
| NUMBER OF CORES | NOMINAL CROSS- SECTIONAL AREA mm² | NOMINAL NO.AND DIAMETER WIRES No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL THICKNESS INSULATION WALL mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.5 | 28/0.16 | 1.1 | 37.7 | 0.6 | 2 | 2.3 | 9 |
| 1 | 0.75 | 42/0.16 | 1.3 | 25.1 | 0.6 | 2.2 | 2.5 | 12 |
| 1 | 1 | 57/0.16 | 1.5 | 18.8 | 0.6 | 2.4 | 2.7 | 15 |
| 1 | 1.5 | 84/0.16 | 1.8 | 12.7 | 0.6 | 2.7 | 3 | 20 |
| 1 | 2.5 | 140/0.16 | 2.3 | 7.54 | 0.7 | 3.5 | 3.9 | 32 |
| 1 | 4 | 196/0.16 | 3.3 | 4.71 | 0.8 | 4.5 | 4.9 | 53 |
| 1 | 4.5 | 84/0.16 | 1.8 | 12.7 | 0.6 | 2.7 | 3 | 23 |
| 1 | 6 | 294/0.16 | 4.2 | 3.14 | 0.8 | 5.3 | 6 | 76 |
| 1 | 10 | 455/0.16 | 5.2 | 1.85 | 1 | 6.7 | 7.3 | 124 |
| 1 | 16 | 490/0.21 | 6.7 | 1.16 | 1 | 8.2 | 8.8 | 198 |
| 1 | 25 | 798/0.21 | 8 | 0.74 | 1.2 | 9.9 | 10.5 | 298 |
| NO. CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND DIAMETER OF WIRES no./mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS OF WALL mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.5 | 16/0.21 | 1.1 | 37.1 | 0.48 | 2 | 2.3 | 8 |
| 1 | 0.75 | 24/0.21 | 1.3 | 24.7 | 0.48 | 2.2 | 2.5 | 10.6 |
| 1 | 1 | 32/0.21 | 1.5 | 18.5 | 0.48 | 2.4 | 2.7 | 13.5 |
| 1 | 1.5 | 30/0.26 | 1.8 | 12.7 | 0.48 | 2.7 | 3 | 17.9 |
| 1 | 2.5 | 50/0.26 | 2.2 | 7.6 | 0.56 | 3.3 | 3.6 | 29.5 |
| 1 | 4 | 56/0.31 | 2.8 | 4.71 | 0.64 | 4 | 4.4 | 46.7 |
| 1 | 6 | 84/0.31 | 3.4 | 3.14 | 0.64 | 4.6 | 5 | 66 |
| 1 | 10 | 80/0.41 | 4.5 | 1.82 | 0.8 | 5.9 | 6.5 | 113 |
| 1 | 16 | 126/0.41 | 6.3 | 1.16 | 0.8 | 7.7 | 8.3 | 173 |
| 1 | 25 | 196/0.41 | 7.8 | 0.743 | 1.04 | 9 | 10 | 266 |
| 1 | 35 | 276/0.41 | 9 | 0.527 | 1.04 | 10.4 | 11 | 361 |
| 1 | 50 | 396/0.41 | 10.5 | 0.368 | 1.25 | 12.4 | 13.5 | 526 |
| 1 | 70 | 360/0.51 | 12.5 | 0.259 | 1.25 | 14.2 | 15.5 | 750 |
| NO. CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND DIAMETER OF WIRES no./mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS OF WALL mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.5 | 16/0.21 | 1.1 | 37.1 | 0.6 | 2.1 | 2.3 | 8 |
| 1 | 0.75 | 24/0.21 | 1.3 | 24.7 | 0.6 | 2.35 | 2.5 | 11 |
| 1 | 1 | 32/0.21 | 1.5 | 18.5 | 0.6 | 2.55 | 2.7 | 14 |
| 1 | 1.5 | 30/0.26 | 1.8 | 12.7 | 0.6 | 2.85 | 3 | 19 |
| 1 | 2 | 40/0.26 | 2 | 9.42 | 0.6 | 3.15 | 3.3 | 24 |
| 1 | 2.5 | 50/0.26 | 2.2 | 7.6 | 0.7 | 3.45 | 3.6 | 30 |
| 1 | 3 | 60/0.26 | 2.4 | 6.15 | 0.7 | 3.95 | 4.1 | 38 |
| 1 | 4 | 56/0.31 | 2.8 | 4.71 | 0.8 | 4.2 | 4.4 | 48 |
| 1 | 6 | 84/0.31 | 3.4 | 3.14 | 0.8 | 4.8 | 5 | 68 |
| NUMBER OF CORES | NOMINAL CROSS- SECTIONAL AREA mm² | NOMINAL NO. AND DIAMETER OF WIRES No/mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 0.5 | 16/0.21 | 1.1 | 38.2 | 0.48 | 2.3 | 9 |
| 1 | 0.75 | 24/0.21 | 1.3 | 25.4 | 0.48 | 2.5 | 11 |
| 1 | 1 | 32/0.21 | 1.5 | 19.1 | 0.48 | 2.7 | 14 |
| 1 | 1.5 | 30/0.26 | 1.8 | 13 | 0.48 | 3 | 19 |
| 1 | 2.5 | 50/0.26 | 2.2 | 7.82 | 0.56 | 3.6 | 30 |
| 1 | 4 | 56/0.31 | 2.75 | 4.85 | 0.64 | 4.4 | 53 |
| 1 | 6 | 84/0.31 | 3.4 | 3.23 | 0.64 | 5 | 68 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 0.75 | 24/0.20 | 1.2 | 0.6 | 2.2 | 2.5 | 33 |
| 1 | 2.5 | 50/0.25 | 2.1 | 0.7 | 3.3 | 3.7 | 278 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | OUTER SHEATH THICKNESS mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 4 | 56/0.31 | 2.75 | 0.8 | 2 | 8 | 8.4 | 123 |
| 1 | 6 | 84/0.31 | 3.3 | 0.8 | 2 | 8.6 | 9 | 149 |
| 1 | 10 | 80/0.41 | 4.5 | 1 | 3 | 12.2 | 12.8 | 267 |
| 1 | 16 | 126/0.41 | 6.3 | 1 | 2 | 11.5 | 12.1 | 279 |
| 1 | 50 | 396/0.41 | 10.5 | 0.8 | 1.4 | 14.5 | 15.1 | 587 |
| 1 | 50 | 1600/0.21 | 10.9 | 0.8 | 1.4 | 14.5 | 15.1 | 592 |
| 1 | 70 | 2200/0.21 | 13.3 | 1 | 1.6 | 17.5 | 18.3 | 870 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | OUTER SHEATH THICKNESS mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 4 | 56/0.31 | 2.75 | 0.8 | 2 | 8 | 8.4 | 123 |
| 1 | 6 | 84/0.31 | 3.3 | 0.8 | 2 | 8.6 | 9 | 149 |
| 1 | 10 | 80/0.41 | 4.5 | 1 | 3 | 12.2 | 12.8 | 267 |
| 1 | 16 | 126/0.41 | 6.3 | 1 | 2 | 11.5 | 12.1 | 279 |
| 1 | 50 | 396/0.41 | 10.5 | 0.8 | 1.4 | 14.5 | 15.1 | 587 |
| 1 | 50 | 1600/0.21 | 10.9 | 0.8 | 1.4 | 14.5 | 15.1 | 592 |
| 1 | 70 | 2200/0.21 | 13.3 | 1 | 1.6 | 17.5 | 18.3 | 870 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 6 | 84/0.31 | 3.3 | 0.8 | 4.6 | 5 | 73 |
| 1 | 10 | 80/0.41 | 4.5 | 1 | 6 | 6.5 | 120 |
| 1 | 16 | 126/0.41 | 6.3 | 1 | 7 | 8.1 | 177 |
| 1 | 25 | 196/0.41 | 7.8 | 1.3 | 8.7 | 10.2 | 275 |
| 1 | 35 | 276/0.41 | 9 | 1.3 | 10 | 10.7 | 373 |
| 1 | 50 | 400/0.41 | 10.5 | 1.5 | 11.9 | 13 | 541 |
| 1 | 70 | 560/0.41 | 12.5 | 1.5 | 14 | 15 | 734 |
| 1 | 95 | 740/0.41 | 14.8 | 1.6 | 15.4 | 16.2 | 956 |
| 1 | 120 | 960/0.41 | 16.5 | 1.6 | 18.7 | 19.7 | 1218 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 6 | 84/0.31 | 3.3 | 0.8 | 4.6 | 5 | 73 |
| 1 | 10 | 80/0.41 | 4.5 | 1 | 6 | 6.5 | 120 |
| 1 | 16 | 126/0.41 | 6.3 | 1 | 7 | 8.1 | 177 |
| 1 | 25 | 196/0.41 | 7.8 | 1.3 | 8.7 | 10.2 | 275 |
| 1 | 35 | 276/0.41 | 9 | 1.3 | 10 | 10.7 | 373 |
| 1 | 50 | 400/0.41 | 10.5 | 1.5 | 11.9 | 13 | 541 |
| 1 | 70 | 560/0.41 | 12.5 | 1.5 | 14 | 15 | 734 |
| 1 | 95 | 740/0.41 | 14.8 | 1.6 | 15.4 | 16.2 | 956 |
| 1 | 120 | 960/0.41 | 16.5 | 1.6 | 18.7 | 19.7 | 1218 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 0.75 | 11/0.3 | 1.3 | 0.24 | 1.7 | 1.9 | 4 |
| 1 | 1 | 16/0.29 | 1.5 | 0.24 | 1.9 | 2.1 | 5 |
| 1 | 1.25 | 16/0.32 | 1.7 | 0.24 | 2.1 | 2.3 | 6 |
| 1 | 1.5 | 16/0.35 | 1.8 | 0.24 | 2.2 | 2.4 | 7 |
| 1 | 2 | 15/0.42 | 2 | 0.28 | 2.5 | 2.8 | 9 |
| 1 | 2.5 | 19/0.43 | 2.2 | 0.28 | 2.7 | 3 | 12 |
| 1 | 3 | 23/0.42 | 2.4 | 0.32 | 3.1 | 3.4 | 14 |
| 1 | 4 | 30/0.42 | 2.8 | 0.32 | 3.4 | 3.7 | 17 |
| 1 | 5 | 36/0.42 | 3.1 | 0.32 | 3.9 | 4.2 | 19 |
| 1 | 6 | 45/0.42 | 3.4 | 0.32 | 4 | 4.3 | 23 |
| 1 | 8 | 59/0.42 | 4.3 | 0.32 | 4.6 | 5 | 29 |
| 1 | 10 | 50/0.52 | 4.5 | 0.48 | 5.3 | 6 | 43 |
| 1 | 12 | 60/0.52 | 5.4 | 0.48 | 5.8 | 6.5 | 50 |
| 1 | 16 | 78/0.52 | 5.8 | 0.52 | 6.4 | 7.2 | 63 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 0.75 | 11/0.3 | 1.3 | 0.24 | 1.7 | 1.9 | 4 |
| 1 | 1 | 16/0.29 | 1.5 | 0.24 | 1.9 | 2.1 | 5 |
| 1 | 1.25 | 16/0.32 | 1.7 | 0.24 | 2.1 | 2.3 | 6 |
| 1 | 1.5 | 16/0.35 | 1.8 | 0.24 | 2.2 | 2.4 | 7 |
| 1 | 2 | 15/0.42 | 2 | 0.28 | 2.5 | 2.8 | 9 |
| 1 | 2.5 | 19/0.43 | 2.2 | 0.28 | 2.7 | 3 | 12 |
| 1 | 3 | 23/0.42 | 2.4 | 0.32 | 3.1 | 3.4 | 14 |
| 1 | 4 | 30/0.42 | 2.8 | 0.32 | 3.4 | 3.7 | 17 |
| 1 | 5 | 36/0.42 | 3.1 | 0.32 | 3.9 | 4.2 | 19 |
| 1 | 6 | 45/0.42 | 3.4 | 0.32 | 4 | 4.3 | 23 |
| 1 | 8 | 59/0.42 | 4.3 | 0.32 | 4.6 | 5 | 29 |
| 1 | 10 | 50/0.52 | 4.5 | 0.48 | 5.3 | 6 | 43 |
| 1 | 12 | 60/0.52 | 5.4 | 0.48 | 5.8 | 6.5 | 50 |
| 1 | 16 | 78/0.52 | 5.8 | 0.52 | 6.4 | 7.2 | 63 |
